DC Power Distribution, 16 Output(12VDC/24VDC)

Name: DC Power Distribution, 16 Output(12VDC/24VDC)
SKU: DCP-1224
Price: 936.00 USD
Availability: InStock

DCP-1224

$936.00 MSRP

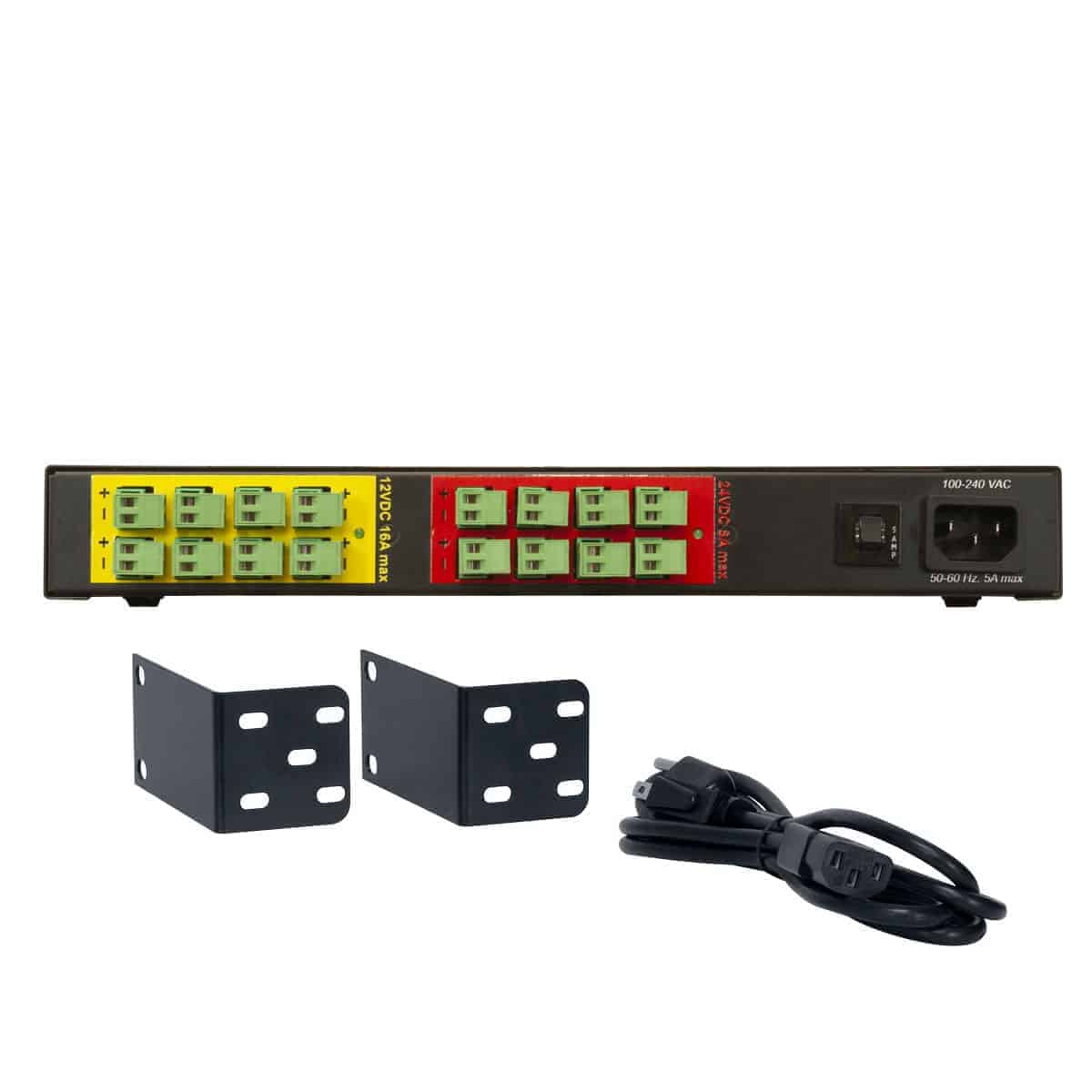

This space saving, multi-output power supply provides two banks of voltage outputs in a single unit (12VDC/24VDC). It's an ideal format to streamline installations that use DC powered devices. The 12-inch x 6-inch chassis includes a fan and universal input (100-240VAC, 50/60Hz), C14 power inlet, and a 6-ft. detachable power cord (C13 to NEMA 5-15P plug). The two voltage banks are color coded for easy identification. Each output is protected by a PTC fuse with auto reset overload protection. Includes 16 detachable voltage output terminals and mounting brackets.

Add to Favorites

Compare

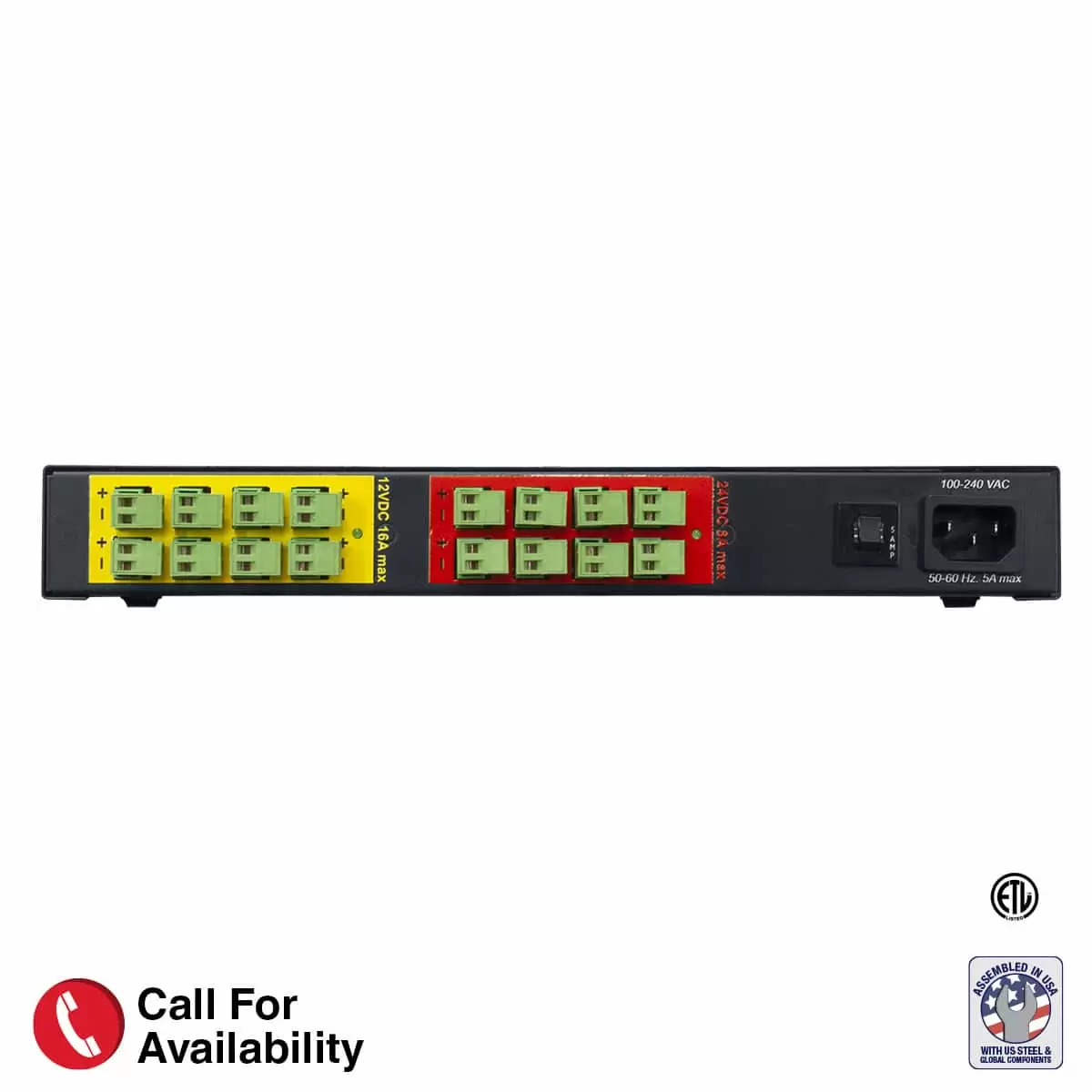

Each unit features 2 voltage banks, color coded for easy identification of outputs. One bank has eight outputs of 24V@8A, one bank has eight outputs of 12V@16A
Each output is protected by PTC fuse with auto reset for overload protection.
LED on each voltage bank indicates power status (active/inactive).
Detachable voltage output terminals (16) with quick-install screw terminal connectors.
Universal Input: 100-240VAC, 50/60Hz
6 ft. power cord (C13 to NEMA 5-15P plug)
Chassis: 12 in. x 6 in. x 1.625 in. (5 lbs.)
Universal mounting brackets (wall, rack, shelf)

Spec Sheet: 2149-DCP1224

ETL Listed (UL60065)
Certified U.S. Steel
Assembled in U.S.A. with global components

Power distribution shall be Lowell model DCP-1224, which shall feature a 12″ x 6″ x 1.625″ steel chassis with black finish and universal mounting brackets for shelf, wall, or rackmount. The unit shall feature two voltage modules with 8 outputs each (16 total). Voltage outputs shall be Euro style output terminals (eight—12VDC 16A, eight—24VDC 8A). Each output shall be protected by an auto-reset PTC fuse. The unit shall feature universal input (100-240VAC 50/60Hz) with C14 power inlet compatible with international standards. It shall include a 6 ft. power cord (C13 to NEMA 5-15) and variable speed fan. The power distribution shall be made in the U.S.A. with global components.
