DAT31F SERIES | 48U x 48"D Open Frame Data Rack

Name: DAT31F SERIES | 48U x 48"D Open Frame Data Rack
SKU: DAT31F-4848-B
Price: 3950.00 USD
Availability: InStock

DAT31F-4848-B

$3,950.00 MSRP

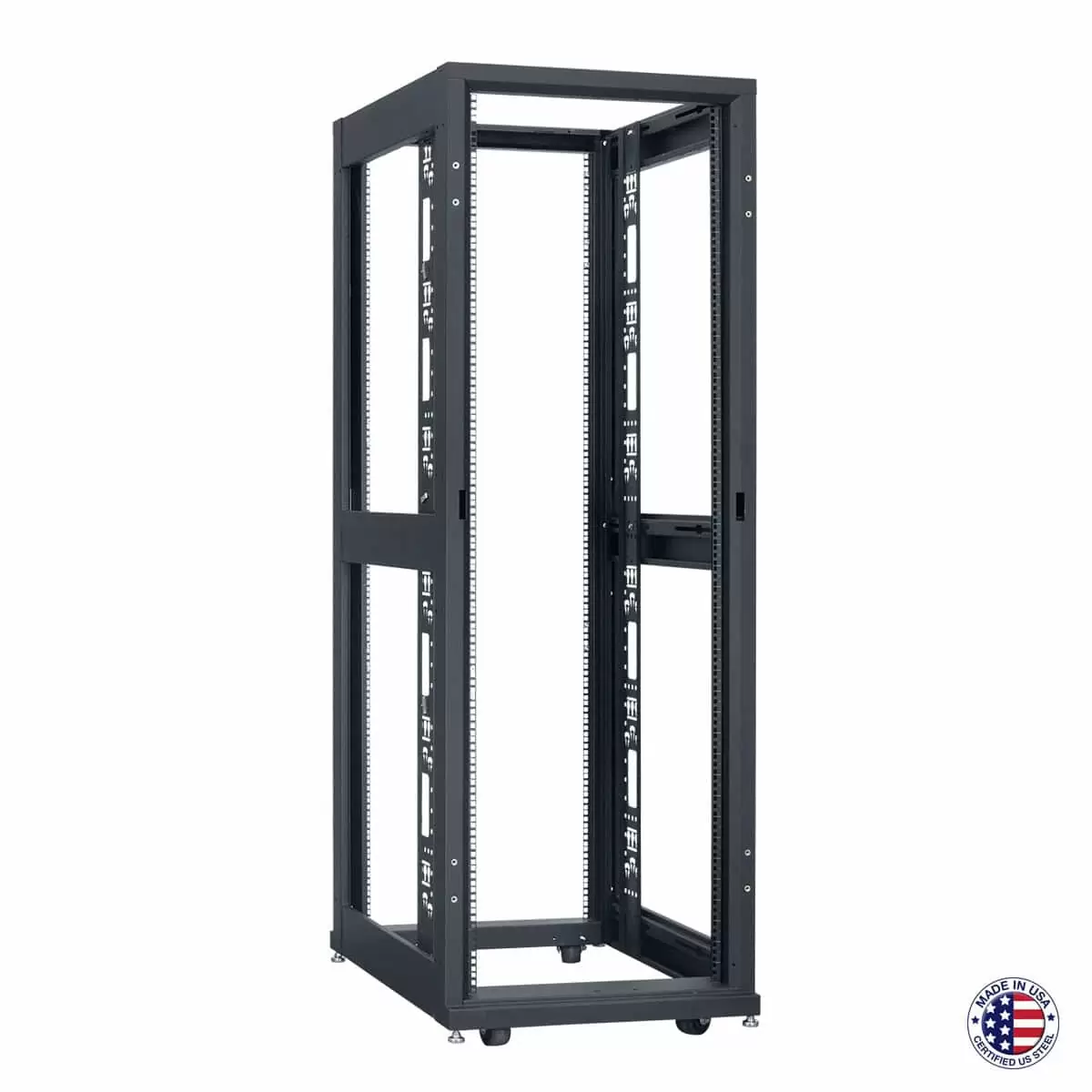

Model DAT31F-4848-B open frame data rack features a 16-gauge steel frame and base reinforced at load-bearing junctions for robust support. This 31.5-inch wide U.S. steel rack has a black textured powder epoxy finish (white available on request). Load Capacity: 3150 lbs. Note: Model DAT24F-4242-B is pictured.

Add to Favorites

Compare

Open top
Two-pair adjustable rack rails with square holes punched on EIA spacing
12-24 screws w/cage nut hardware (pilot point)
Grounding studs
Anchor brackets
Leg levelers
Swivel casters (non-locking)
Blank panels (included as shipping stiffeners)
Vertical panels for PDU or cable management

Rack Space: 48U
Overall Width: 31.5 in.
Depth: 48 in.
Load Capacity: 3150 lbs.

Spec Sheet: 2425-DAT31F4848B
Cad Drawings: DAT31F-4848-B

The EIA/TIA compliant data rack frame shall be Lowell model DAT31F-4848-B with overall dimensions of 31.5″W x 48″D and panel space of 48 rack units. Rack construction shall be fully welded certified U.S. steel with 16-gauge frame and 16-gauge base reinforced at load-bearing junctions, with black textured powder epoxy finish. The rack shall feature an open top, open base, grounding studs, threaded T-nuts, anchoring brackets, and two pairs of adjustable 11-gauge steel rails with square holes and printed rack unit increments. The hardware package shall include 12-24 screws with cage nut hardware, non-locking swivel casters and leg levelers.
