- Removable top panel features snap-in brush panels for cable management.
- Removable side panels w/locks
- High-flow vented front door w/locking swing handle
- High-flow vented rear door w/vertical split requires minimal aisle space
- Two-pair adjustable rack rails with square holes punched on EIA spacing and printed RU scale
- 12-24 screws w/cage nut hardware (pilot point)
- Grounding studs
- Anchor brackets
- Leg levelers
- Swivel casters (non-locking)
- Vertical panels for PDU or cable management
- Rack Space: 45U
- Overall Width: 31.5 in.
- Depth: 36 in.
- Load Capacity: 3150 lbs.
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- USA-certified steel
- Made in USA

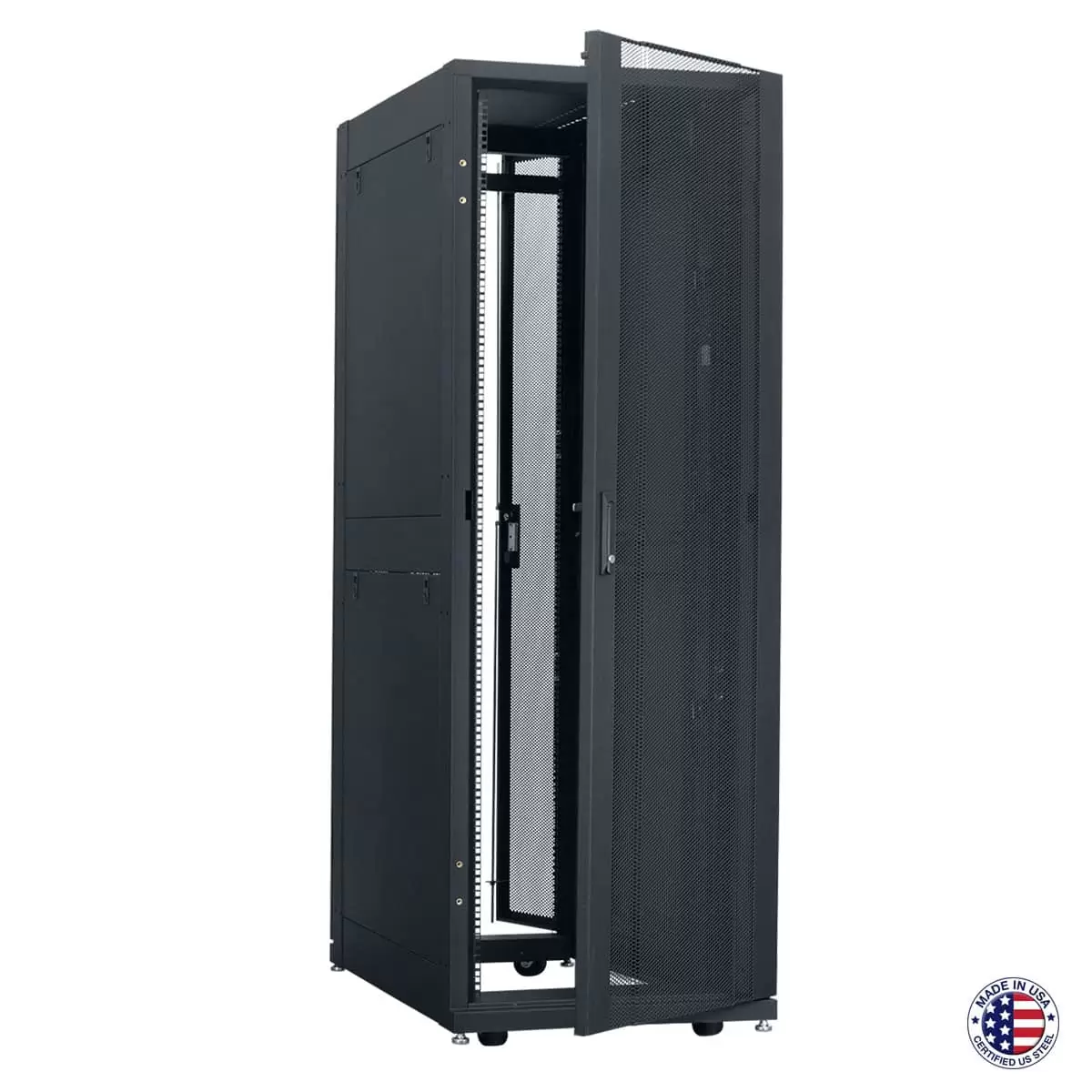

The EIA/TIA-compliant data rack shall be Lowell model DAT31-4536-B with overall dimensions of 31.5″W x 36″D and panel space of 45 rack units. Rack construction shall be fully welded steel with 16-gauge frame and 16-gauge base reinforced at load-bearing junctions. Solid steel side panels shall be lockable and removable. The rack shall include a high-flow fully vented split rear door and a high-flow fully vented front door, each with locking handle. It shall also feature an open top with removable brush panels, open base, grounding studs, threaded inserts, anchoring brackets, vertical cable management panels, and two-pairs of adjustable 11-gauge steel rails with square holes and printed rack unit increments. The hardware package shall include 12-24 screws with cage nut hardware, non-locking swivel casters and leg levelers. The rack shall be manufactured in the USA using USA-certified steel and have a black-textured powder-coat finish. It shall be Trade Agreement Act (TAA) compliant and Buy American Act (BAA) compliant.
Cable management trough: CMT-31
