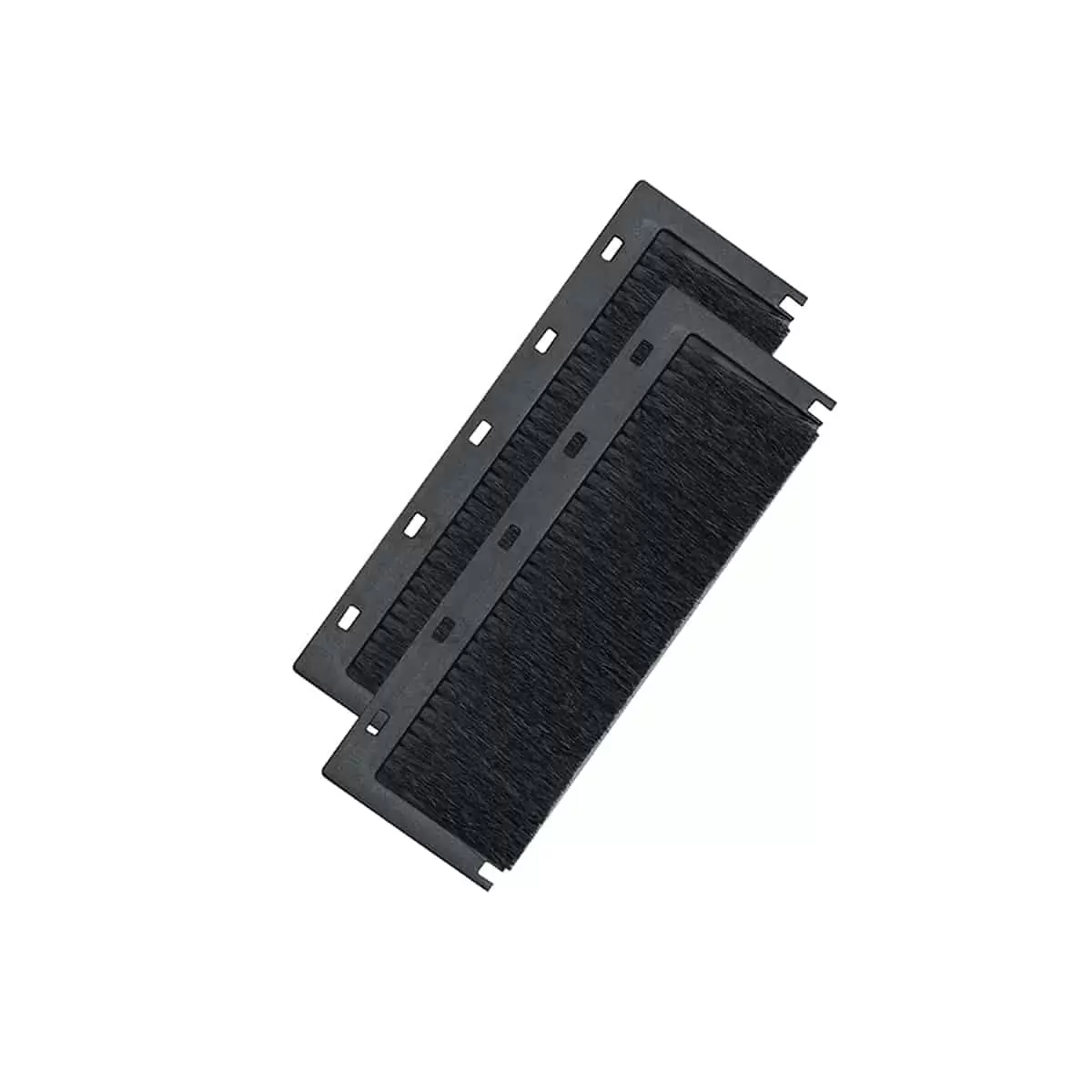

- Removable top panel features snap-in brush panels for cable management.
- Removable side panels w/lock

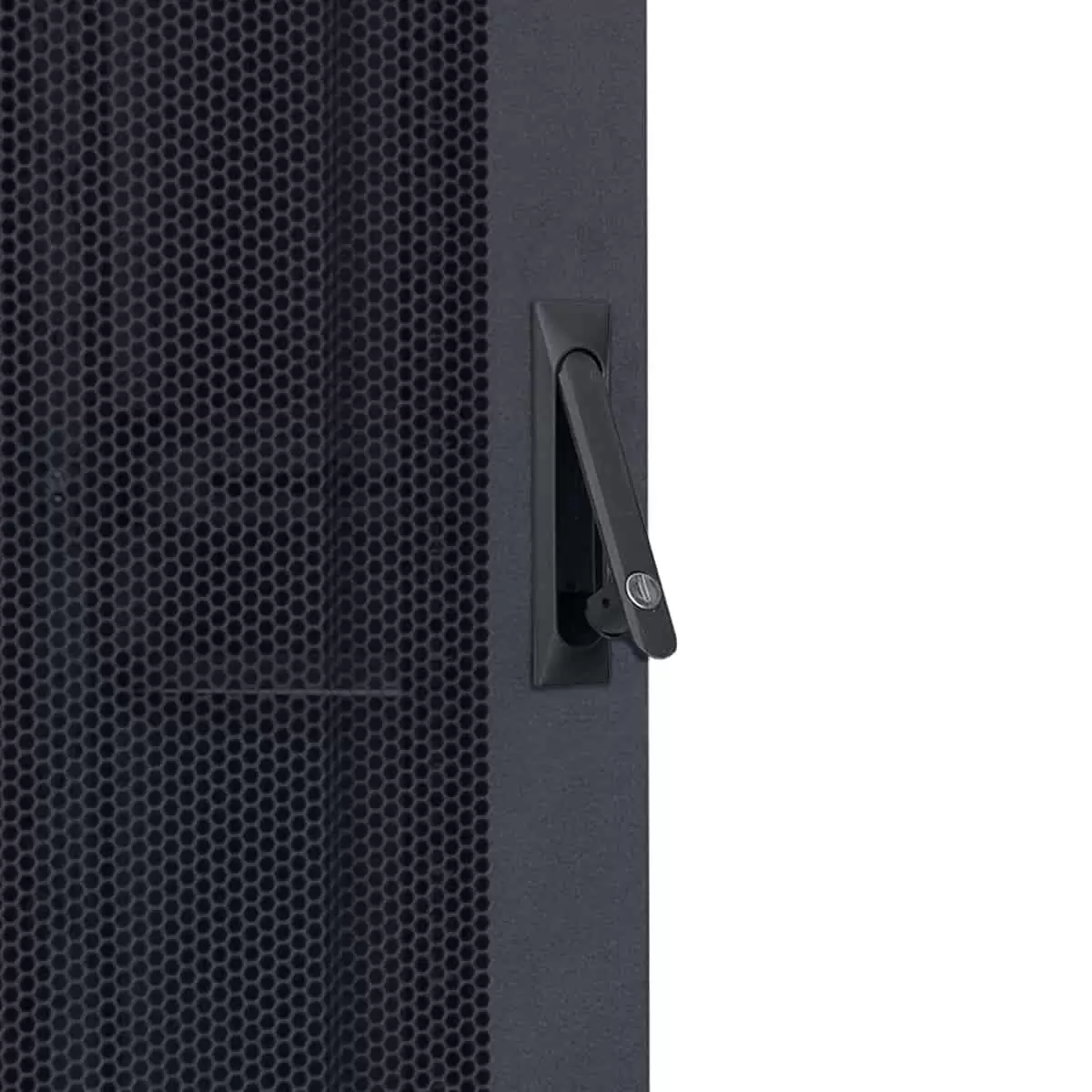

- High-flow vented front door w/locking swing handle
- High-flow vented rear door w/vertical split requires minimal aisle space
- Two-pair adjustable rack rails with square holes punched on EIA spacing
- 12-24 screws w/cage nut hardware (pilot point)
- Grounding studs
- Anchor brackets
- Leg levelers
- Swivel casters (non-locking)
- Vertical panels for PDU or cable management, two
- Black-textured powder-coat finish
- Rack Space: 45U
- Depth: 36 in.
- Overall Width: 24 in.
- Load Capacity: 3150 lbs.
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- USA-certified steel
- Made in USA

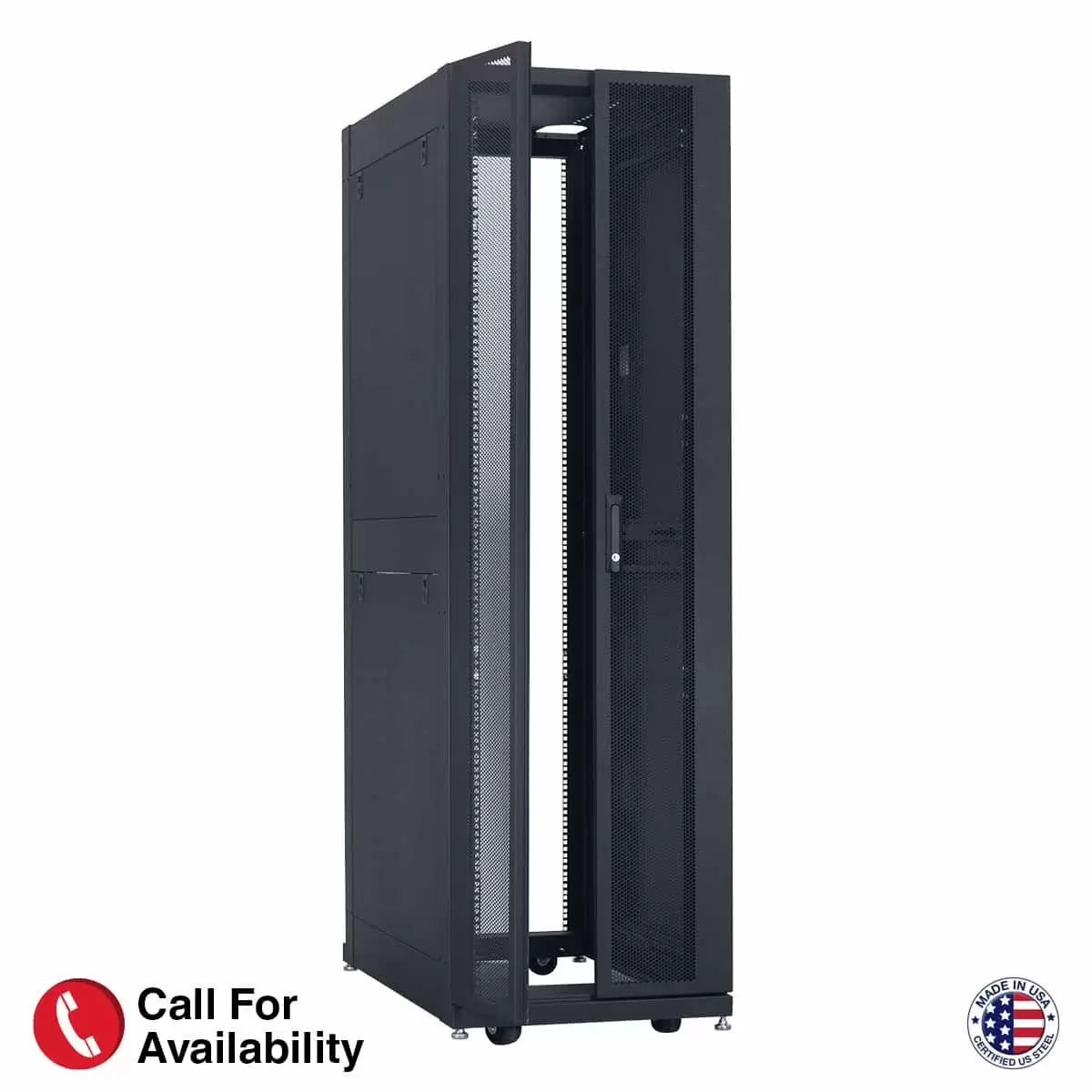

The EIA/TIA-compliant data rack shall be Lowell model DAT24-4536-B with overall dimensions of 24″W x 36″D and panel space of 45 rack units. Rack construction shall be 16-gauge steel frame and base reinforced at load-bearing junctions. Solid steel side panels shall be lockable and removable. The rack shall include a fully-vented split rear door and fully-vented front door, each with a locking handle. It shall also feature a removable top panel with snap-in cable brush panels, grounding stud, threaded T-nuts, anchoring brackets, and two-pairs of adjustable 11-gauge steel rails with square holes and printed rack unit increments. The hardware package shall include 12-24 screws with cage nut hardware, non-locking swivel casters, and leg levelers. The rack shall be manufactured in the USA using USA-certified steel and have a black-textured powder-coat finish. It shall be Trade Agreement Act (TAA) compliant and Buy American Act (BAA) compliant.
