D6410-72 driver, transformer, and grille assembly

D6410-72: 4-in 15W driver with 5W transformer and square grille

4 inch High Compliance Speaker with 25/70V Xfmr, Grille

Name: 4 inch High Compliance Speaker with 25/70V Xfmr, Grille
SKU: D641072
Availability: InStock

D6410-72

$122.80 MSRP

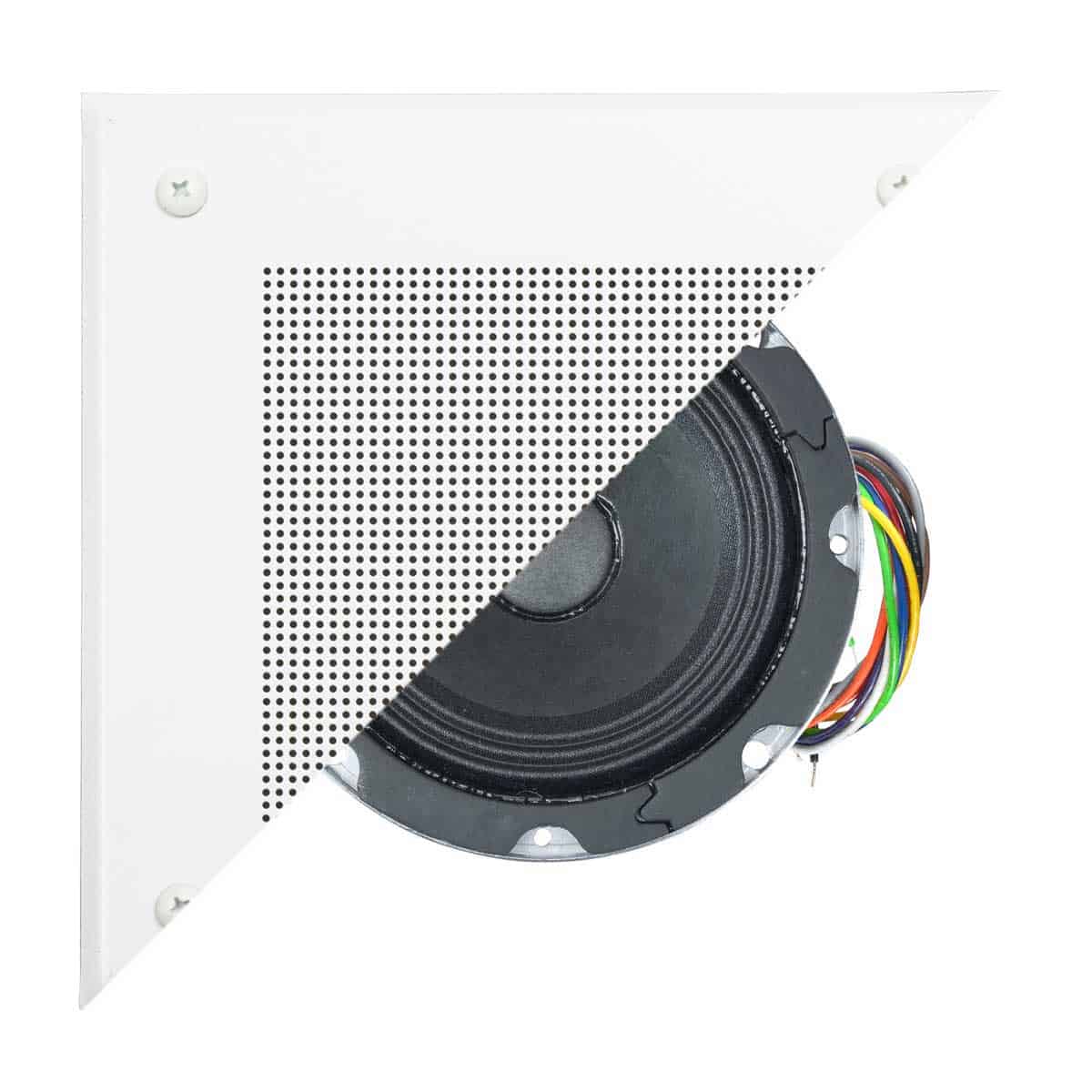

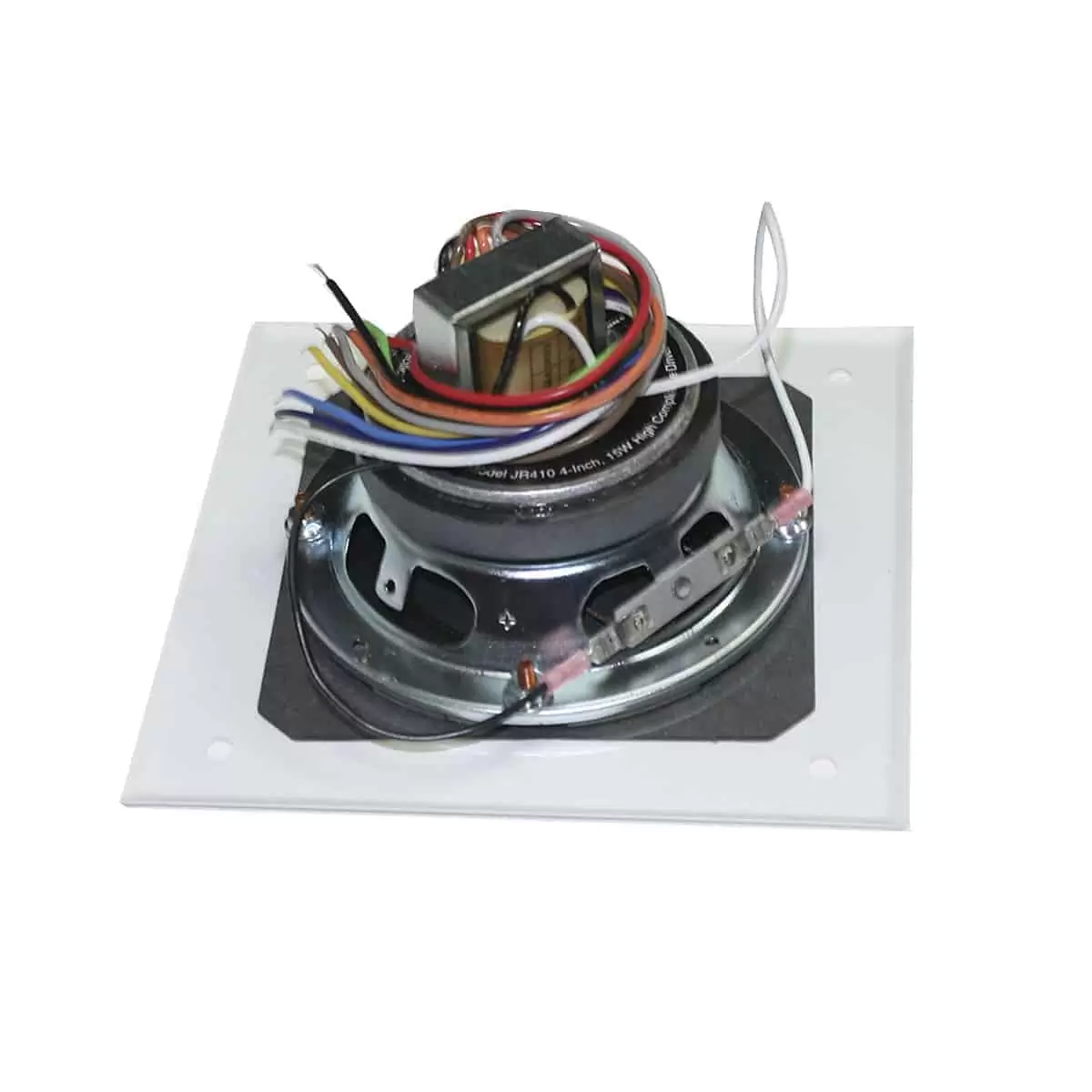

Speaker assembly D6410-72 with full fidelity sound and very wide dispersion includes a 4-inch 15W high compliance driver, dual voltage (25V/70V) 5W transformer and a square steel grille with white powder epoxy finish. The speaker assembly provides clear intelligibility and very wide dispersion with minimal architectural visibility. Order enclosure separately.

Add to Favorites

Compare

Driver (JR410): 4 in. 15W high compliance driver employs 10 oz. ceramic magnet. Cone is paper with treated cloth surround for smooth, extended frequency response and clean, natural sound.
Transformer (TLM-572): 70V/25V dual-voltage transformer. Taps at 0.25, 0.5, 1, 2, 5W.
Grille (SG-4): 7 in. square steel screw-mount grille. White.

Spec Sheet: 1403-D641072

Made in U.S.A. with global components

The speaker assembly shall be Lowell Model D6410-72 which shall include a 4-inch high-compliance driver with wired transformer and square steel grille. The driver shall have a 15 watt RMS power rating and employ a 10 oz. ceramic magnet and paper cone with treated cloth surround. Frequency response shall be 67Hz–16kHz (±6dB) and 57Hz–20kHz (±7.4dB) with an average sensitivity of 90.8dB measured 1W/1M. The transformer shall be a factory-wired 70/25V unit with primary taps at 0.25, 0.5, 1, 2 and 5W. The 7 in.square steel grille shall be factory-mounted to the driver and have a white powder epoxy finish.
