D1410-72: 4-in 15W driver with 5W transformer and grille

D1410-72 - DISCONTINUED

Name: D1410-72 - DISCONTINUED
SKU: D1410-72
Availability: InStock

SEE ALTERNATIVE: JR410-T72 + WB4

$97.60 MSRP

DISCONTINUED | Out of Stock
Recommended Alternative: JR410-T72 + WB4

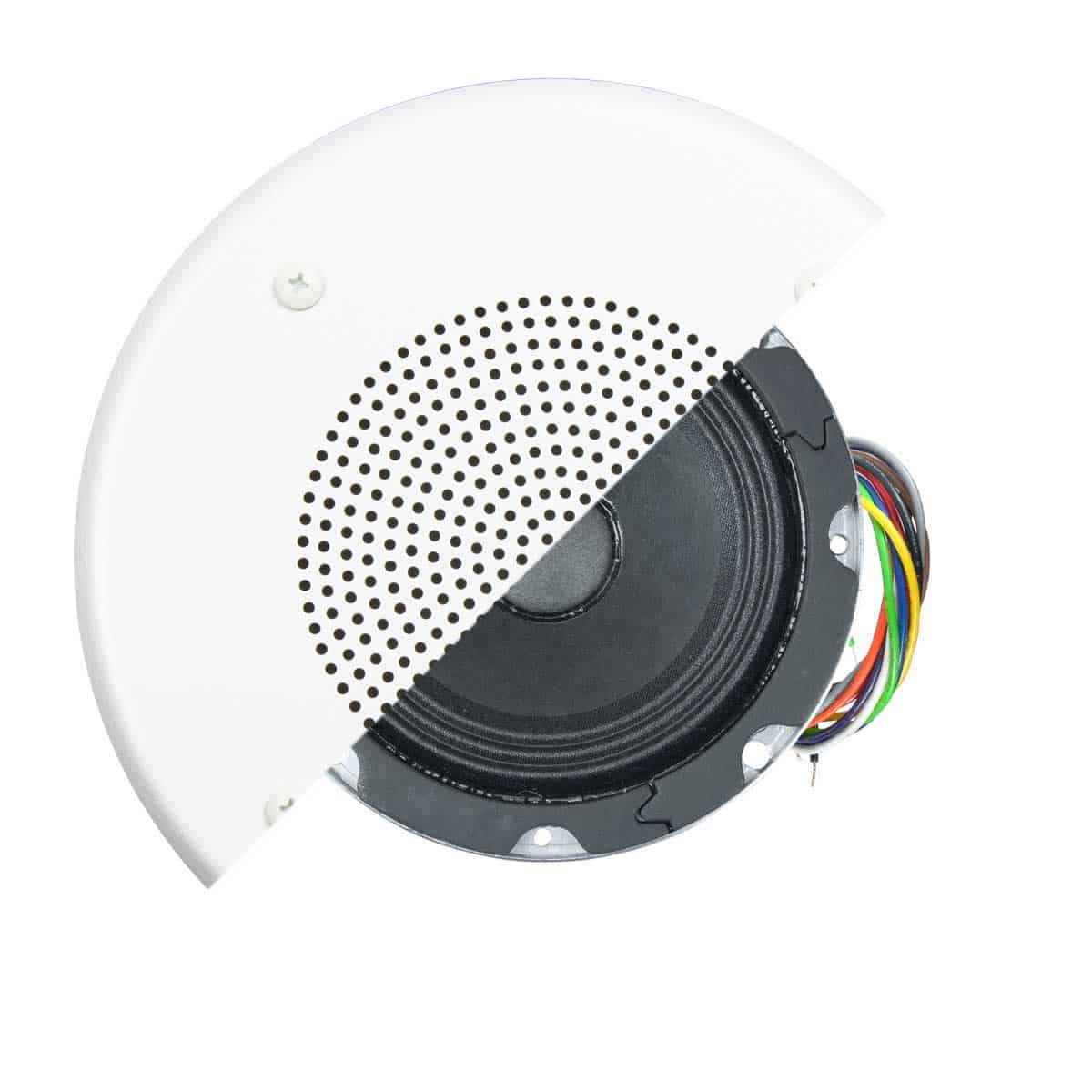

Speaker assembly D1410-72 includes a 4-inch 15W high compliance driver with dual voltage (25V/70V) 5W transformer and a round steel grille with white powder epoxy finish. The speaker assembly provides full fidelity sound, clear intelligibility and very wide dispersion with minimal architectural visibility. Order enclosure separately.

Add to Favorites

Compare

Driver (JR410): 4 in. 15W high compliance driver employs 10 oz. ceramic magnet. Cone is paper with treated cloth surround for smooth, extended frequency response and a clean, natural sound.
Transformer (TLM-572): 70V/25V dual-voltage transformer. Taps at 0.25, 0.5, 1, 2, 5W.
Grille (WB-4): Precision-formed steel. 7.25 in. diameter. White.

Spec Sheet: 1401-D141072

Assembled in U.S.A. with global components

The 4-inch speaker assembly shall be Lowell Model No. D1410-72 which shall include a 4 in. high-compliance driver with wired transformer and screw-mounted grille. The driver shall have a 15 watt RMS power rating and employ a 10 oz. ceramic magnet and paper cone with treated cloth surround. Frequency response shall be 67Hz–16kHz (±6dB) and 57Hz–20kHz (±7.4dB) with an average sensitivity of 90.8dB measured 1W/1M. The transformer shall be a factory-wired 70/25V unit with primary taps at 0.25, 0.5, 1, 2 and 5W. The 7.25 in. diameter steel grille shall be screw-mounted to the driver and have a white powder epoxy finish.
