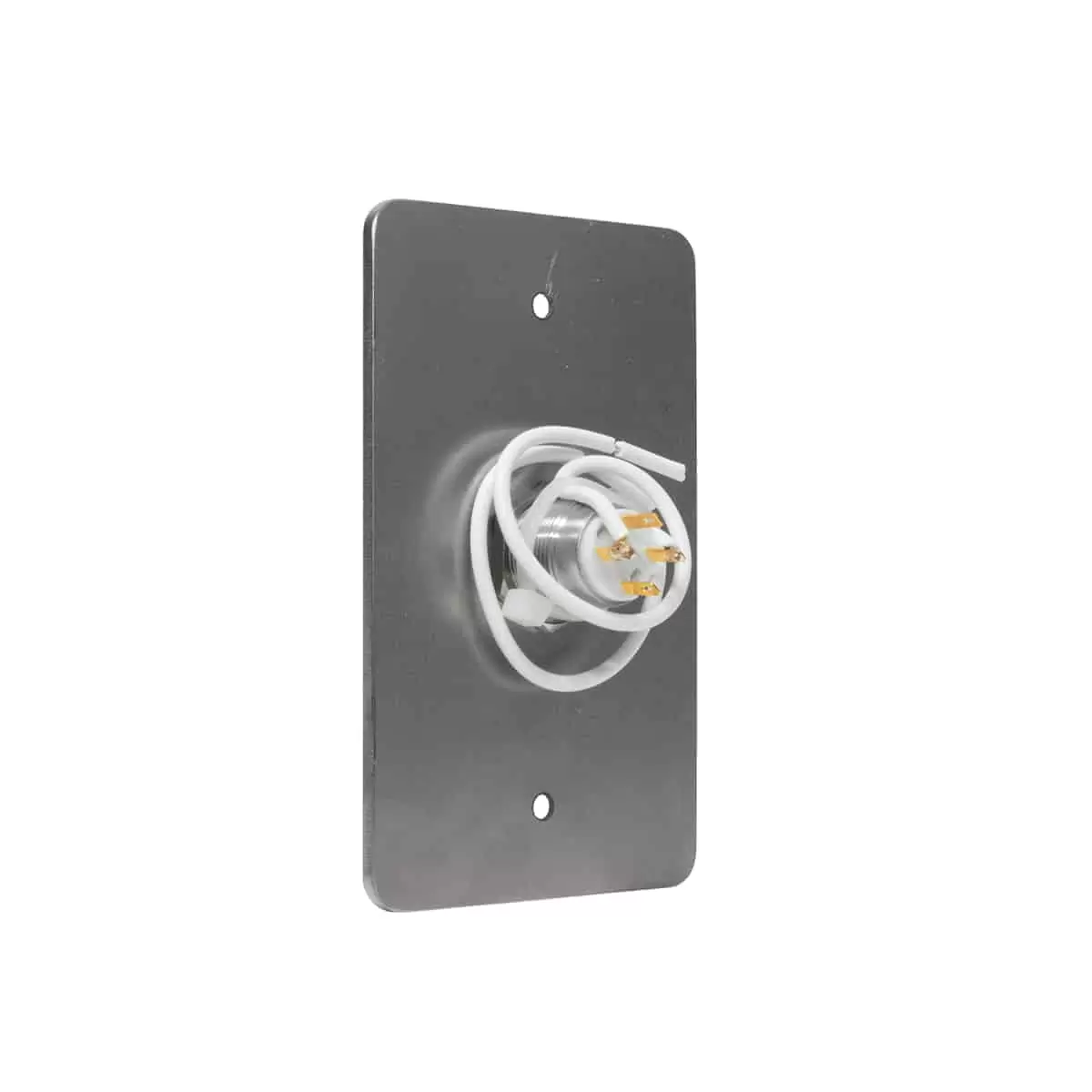

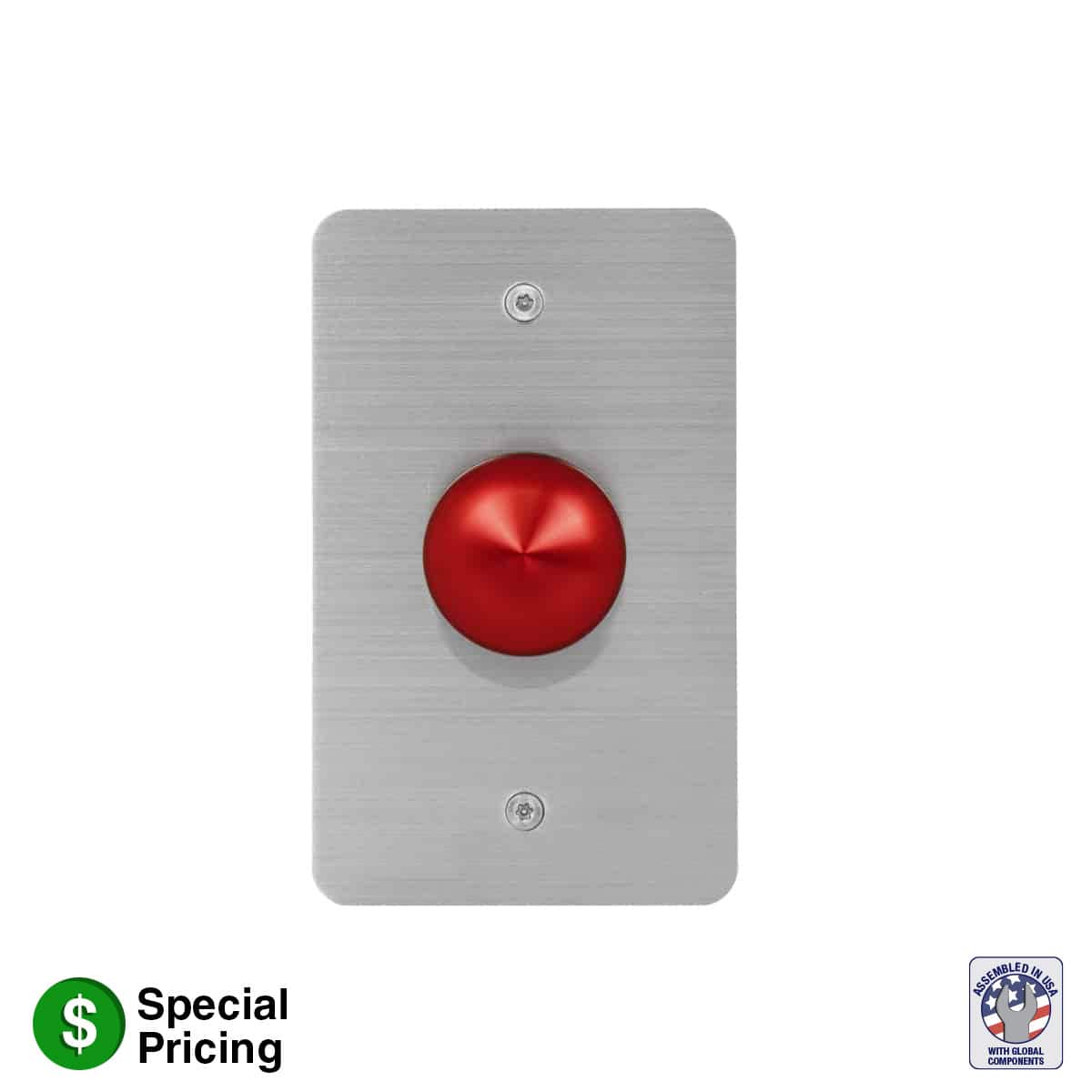

CVSM intercom call switch with mushroom button

CSV-M - DISCONTINUED

Name: CSV-M - DISCONTINUED
SKU: CSV-M
Availability: InStock

SEE ALTERNATIVE: CSV

$173.80 MSRP

DISCONTINUED | Out of Stock
Recommended Alternative: CSV

SPST call switch for intercom systems, general purpose signaling and switching, features a large red mushroom-style button. It includes a heavy duty 11-gauge brushed stainless steel wall plate, one gang.

Add to Favorites

Compare

SPST call switch
Rating: 2A 48VDC
Function: Momentary (normally open)
Push button: Red mushroom
Pigtail connections
Wall Plate: Heavy duty 11-gauge stainless steel with brushed finish
Size: 1-gang
4.5 in. x 2.75 in. x 1.9 in.

Spec Sheet: 1939-CSV

Made in the USA with US and global components

The vandal-resistant call switch shall be Lowell model CSV-M, which shall be a single pole, single throw (SPST) momentary (normally open) switch with a rating of 2A 48VDC. It shall be mounted in a 1-gang 11-gauge stainless steel wall plate with brushed finish. The plate shall feature a red mushroom push button switch. It shall include vandal-resistant screws and driver bit.

P1X: Surface-mount wall box, 1-gang
