- Two 12-gauge steel channel rails (6 in.D)
- Holes tapped 12-24 (front) and square holes (rear), both on EIA spacing
- Numbered RU increments
- Multiple cable pass-through points
- Grounding studs at top and bottom
- Two-piece 12-gauge steel top and base
- Four holes for anchors (not included)
- 23.5 in. wide footprint designed to fit 2×2 floor space.

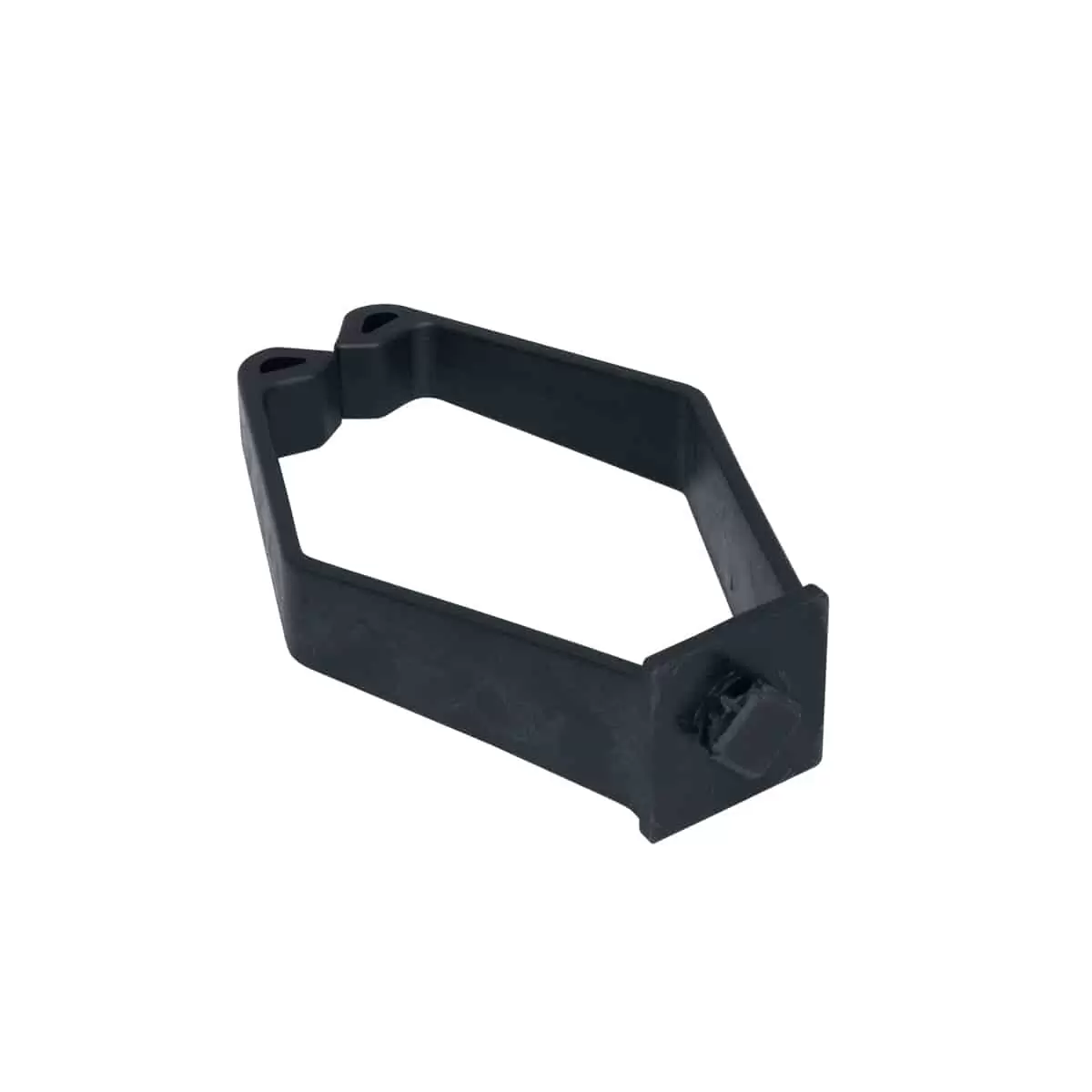

- Ten quick-install nylon cable managers
- Assembly and mounting hardware
- 800 lbs. load capacity
- Smooth black finish
- Ships unassembled
- Rack Space: 52U
- Overall Height: 97.90 in.
- Overall Depth: 18.00 in.
- Overall Width: 23.50 in.
The EIA/TIA compliant two-post, gangable cable rack shall be Lowell Model CR2P-5218, which shall measure 23.50″W x 18.00″D (at base) x 97.90″H, providing panel space of 52 rack units. Rack construction shall be a two-piece steel top and two-piece steel base, which shall feature four holes for anchoring to the floor (anchors not included). The cable rack shall include two 12-gauge steel (6″W) vertical channels numbered with RU increment front/back, featuring one side with mounting holes tapped 12-24 on EIA spacing, and square holes on the opposite side. Top, base, and vertical channels shall have a smooth black powder epoxy finish. The rack shall ship unassembled and includes ten quick-install cable managers, assembly and panel mounting hardware.
