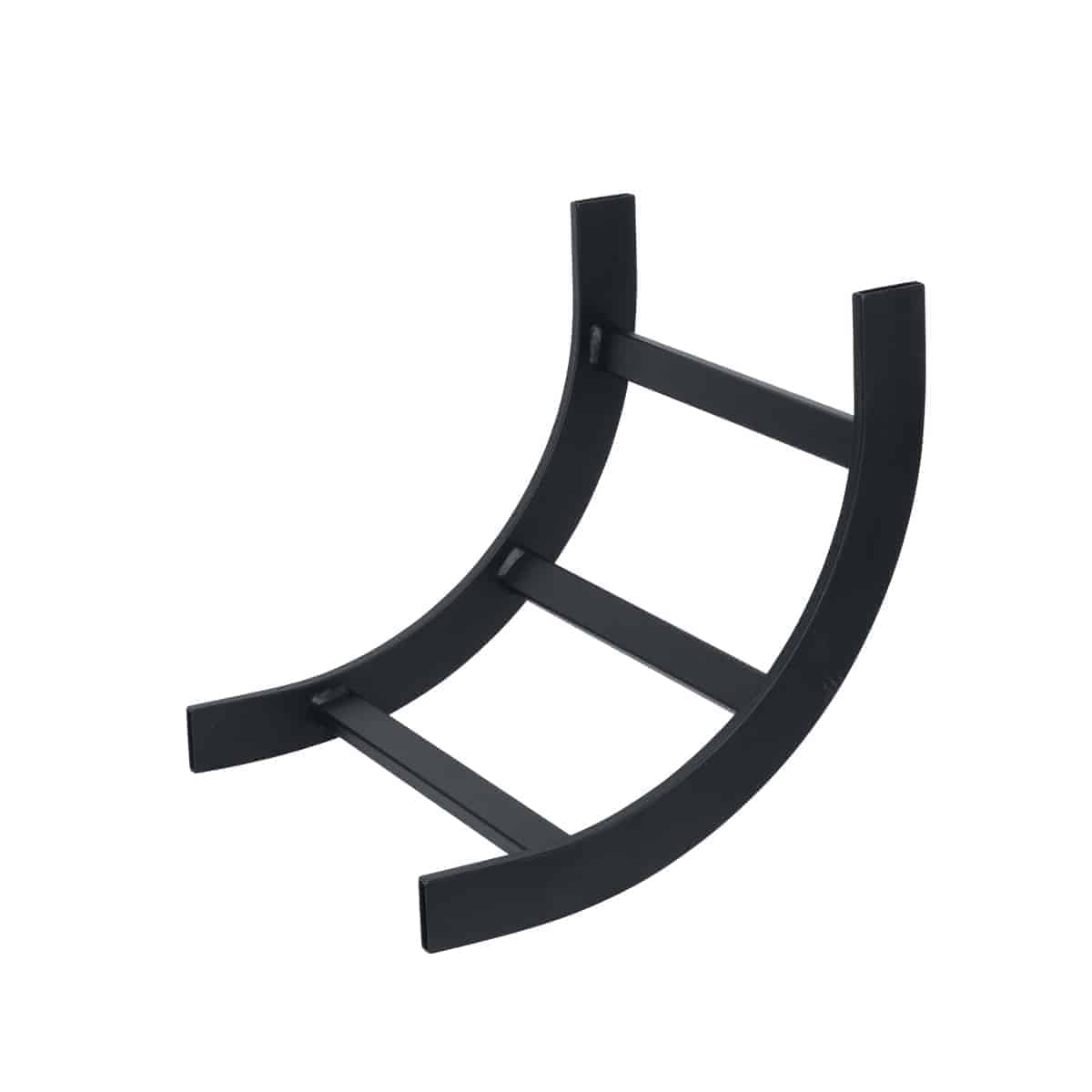

Cable Ladder Vertical Turn, 12"W

Name: Cable Ladder Vertical Turn, 12"W
SKU: CL-12VT
Availability: InStock

CL-12VT

$222.40 MSRP

The 12"W vertical turn ladder for 19-inch E.I.A. racks is tubular steel with black finish. The turn can be used as either an inside or outside bend, and conforms with minimum cable bend radius requirements. See the spec sheet under the "Technical Downloads" tab below for the complete listing of cable ladders, accessories and hardware. Click here for 18"W turn.

Add to Favorites

Compare

For Ladder Width: 12 in.
Sides: 1-1/2 x 3/8 x .06 wall tubular steel
Rungs: 1 x 1/2 x .06 wall tubular steel
Finish: Black

Spec Sheet: 1919-CL12VT

TAA compliant
BAA compliant
RoHS compliant
Conforms to EIA-310
Made in the USA

The cable ladder shall include a universal vertical radius bend to change direction (horizontal to vertical or vice versa), Lowell Model _______ #CL-12VT. The unit shall be suitable for use as an inside or outside bend. It shall be made in the U.S.A. to conform to EIA-310 standard.
