Full Grille with Frame for Surface Mount Clock-Speaker Center

Name: Full Grille with Frame for Surface Mount Clock-Speaker Center
SKU: AP-700
Availability: InStock

AP700

$334.60 MSRP

Frame with grille is made to accept an 8-inch speaker, 12-inch analog clock, and surface-mount enclosure. It can be mounted to a wall horizontally or vertically. Note: Clock, speaker, and backbox are not included.

Priced each. Order in multiples of 2.

Add to Favorites

Compare

Two-piece (grille subplate) assembly. Subplate mounts to grille after bracket/speaker installation.

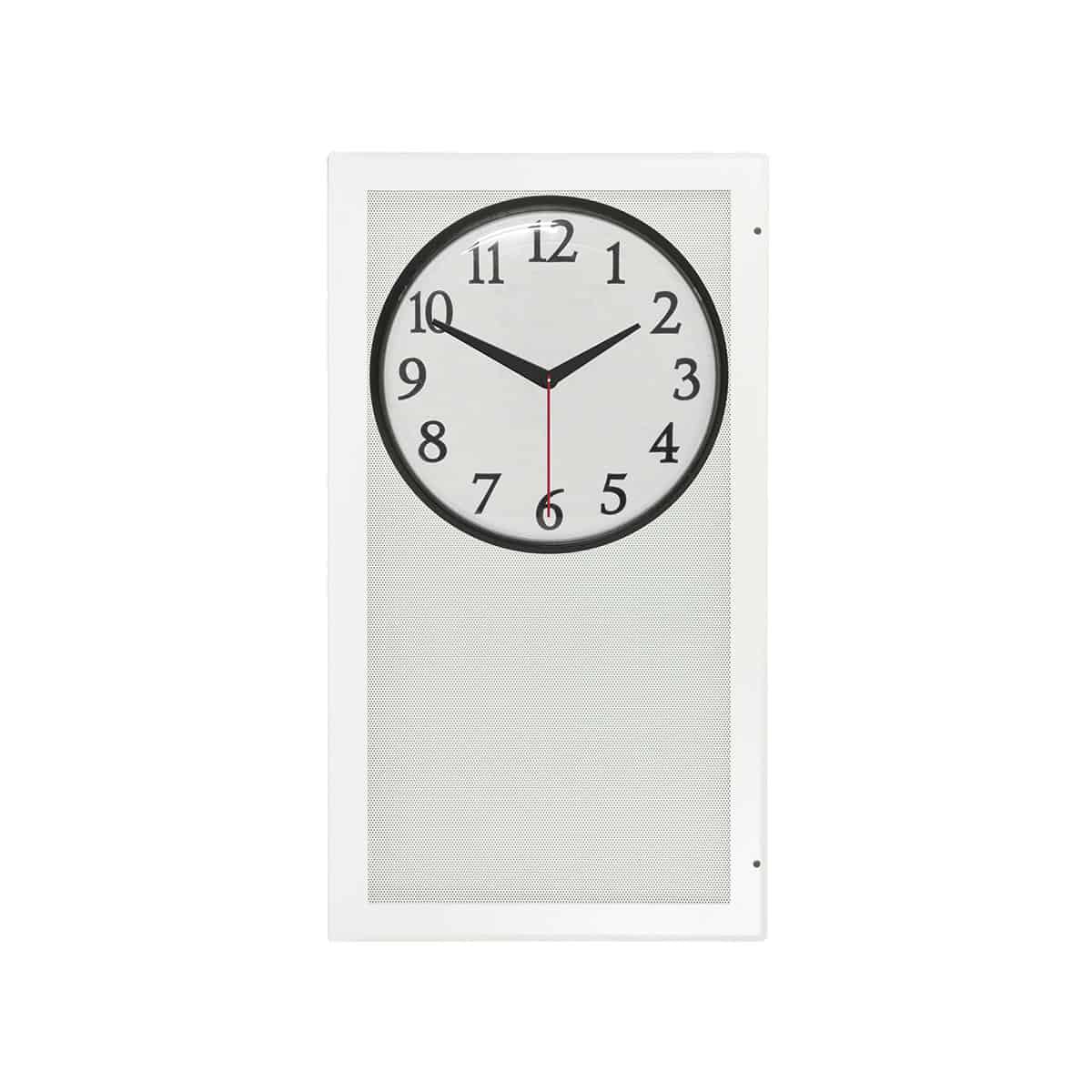

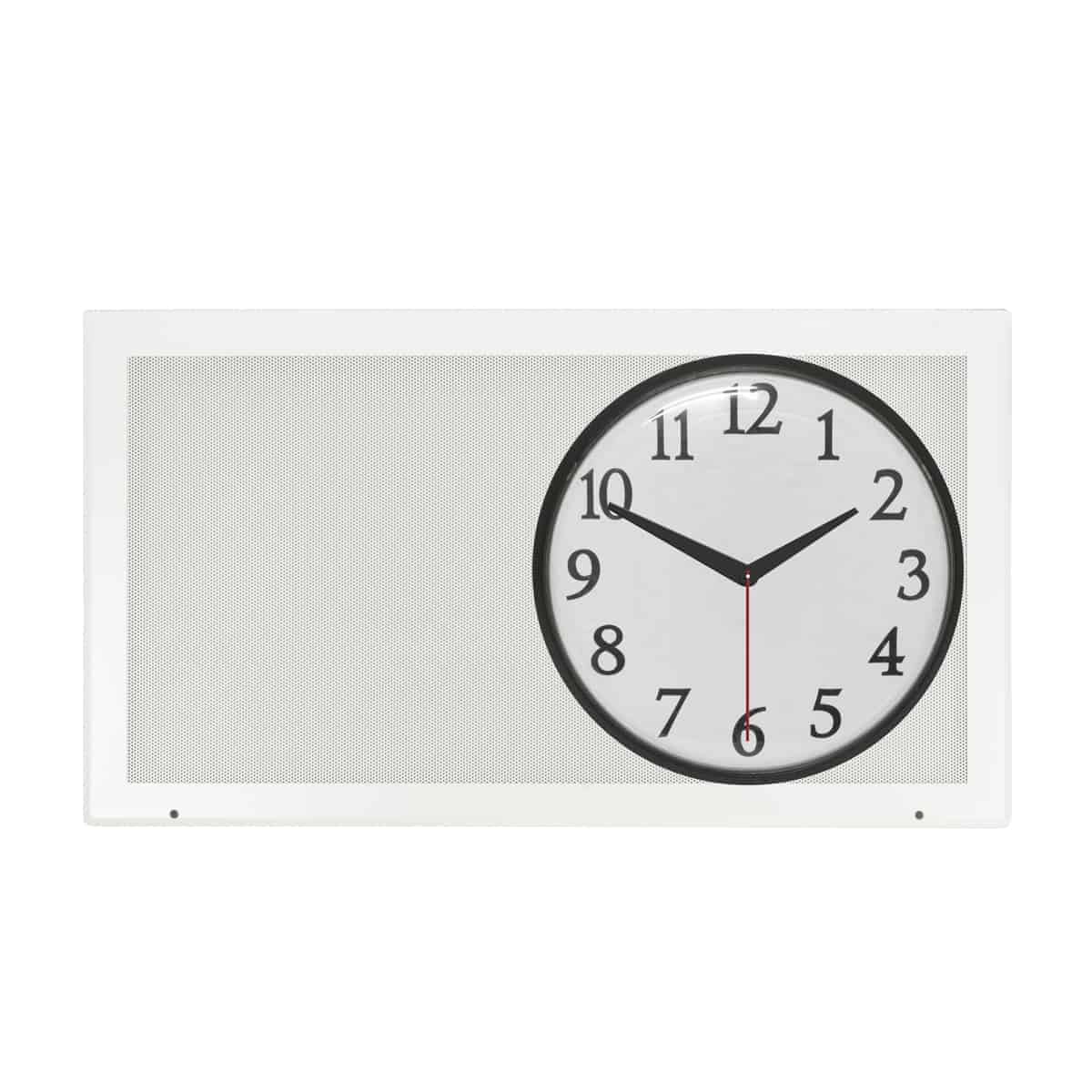

For surface-mount installation, horizontal or vertical orientation

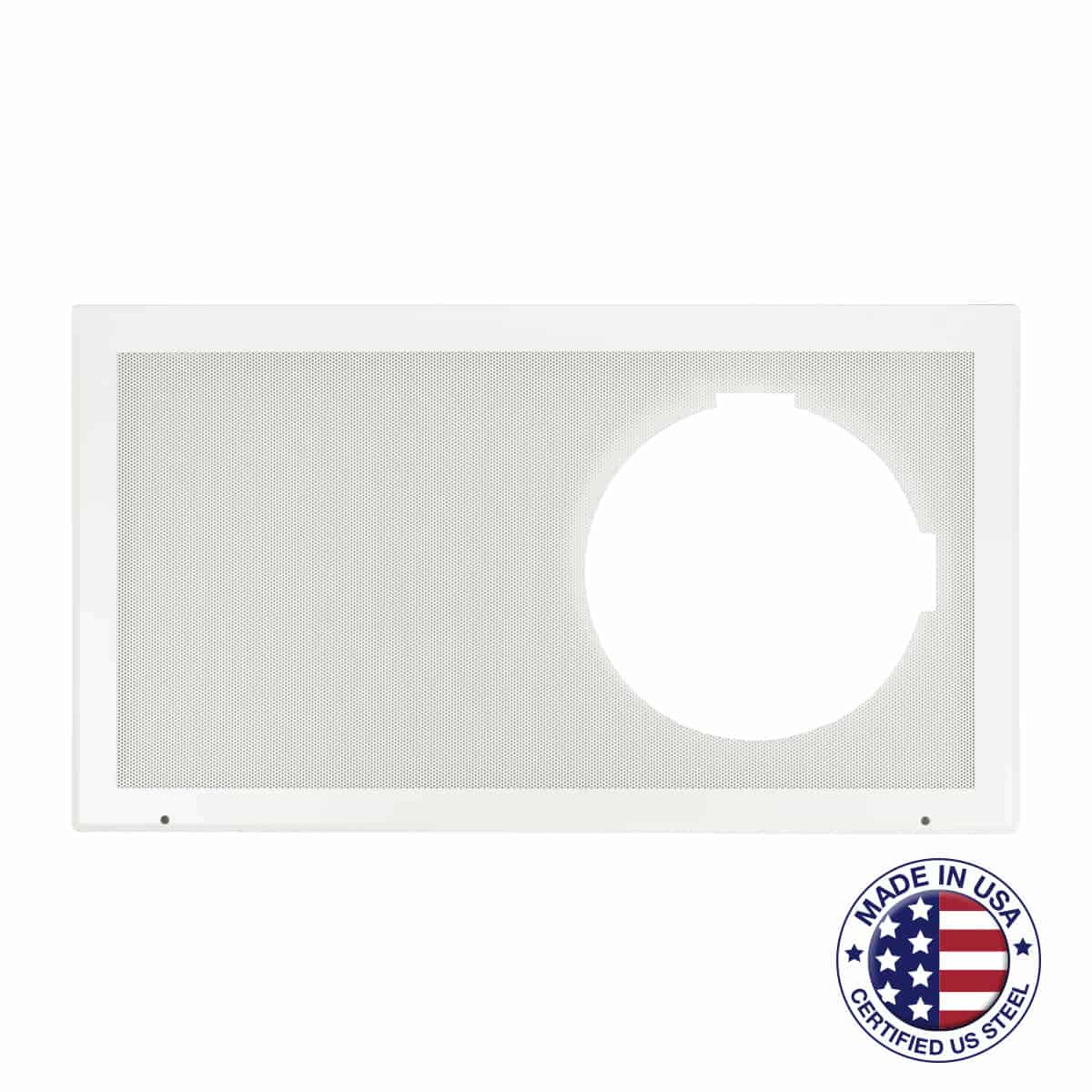

Grille: 26 in. x 14.5 in. formed from single piece 18-gauge steel. Full-perforation face, integral frame border.

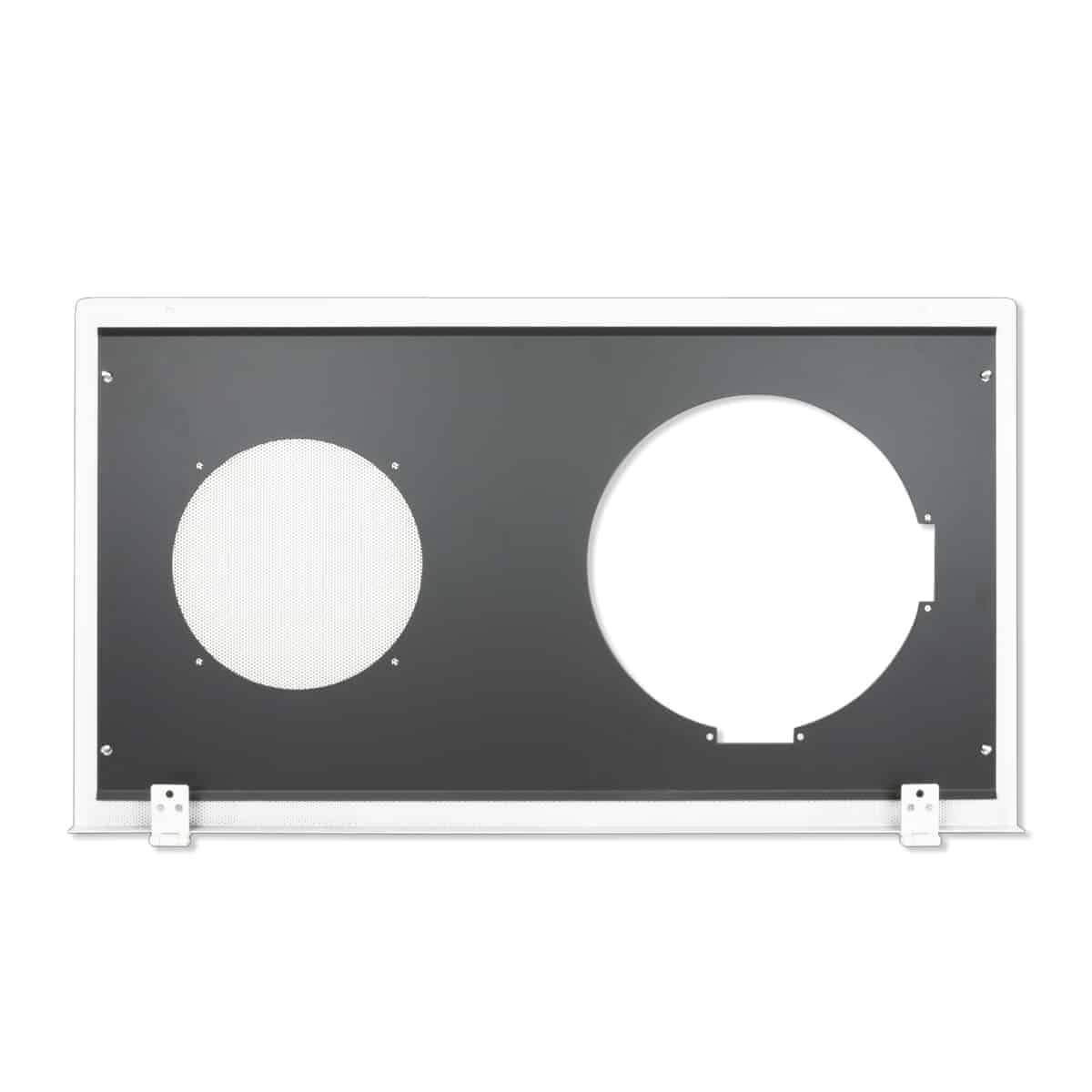

Subplate: Two cutouts (one for standard 12 in. analog clock, one for 8 inch speaker).

Spec Sheet: 1804-AP700
Install Sheets:

Universal Clock Bracket: 26261-Install

TAA compliant
BAA compliant
USA-certified steel
Made in the USA

The grille for the clock/speaker center shall be Lowell Model AP-700. It shall be 18-gauge steel and measure 26 in. x 14.5 in. It shall be two-pieces with a perforated face and separate black subplate. It shall include mounting hardware to install an 8 in. speaker (ordered separately), and a universal clock-mounting bracket with hardware for horizontal or vertical installation of a 12 in. analog clock (by others). The white grille shall include hinges and screws for installation to surface backbox Model PC712 (ordered separately).

Surface-Mount Backbox: PC712
Speaker (8 in.): CT830A-T72
