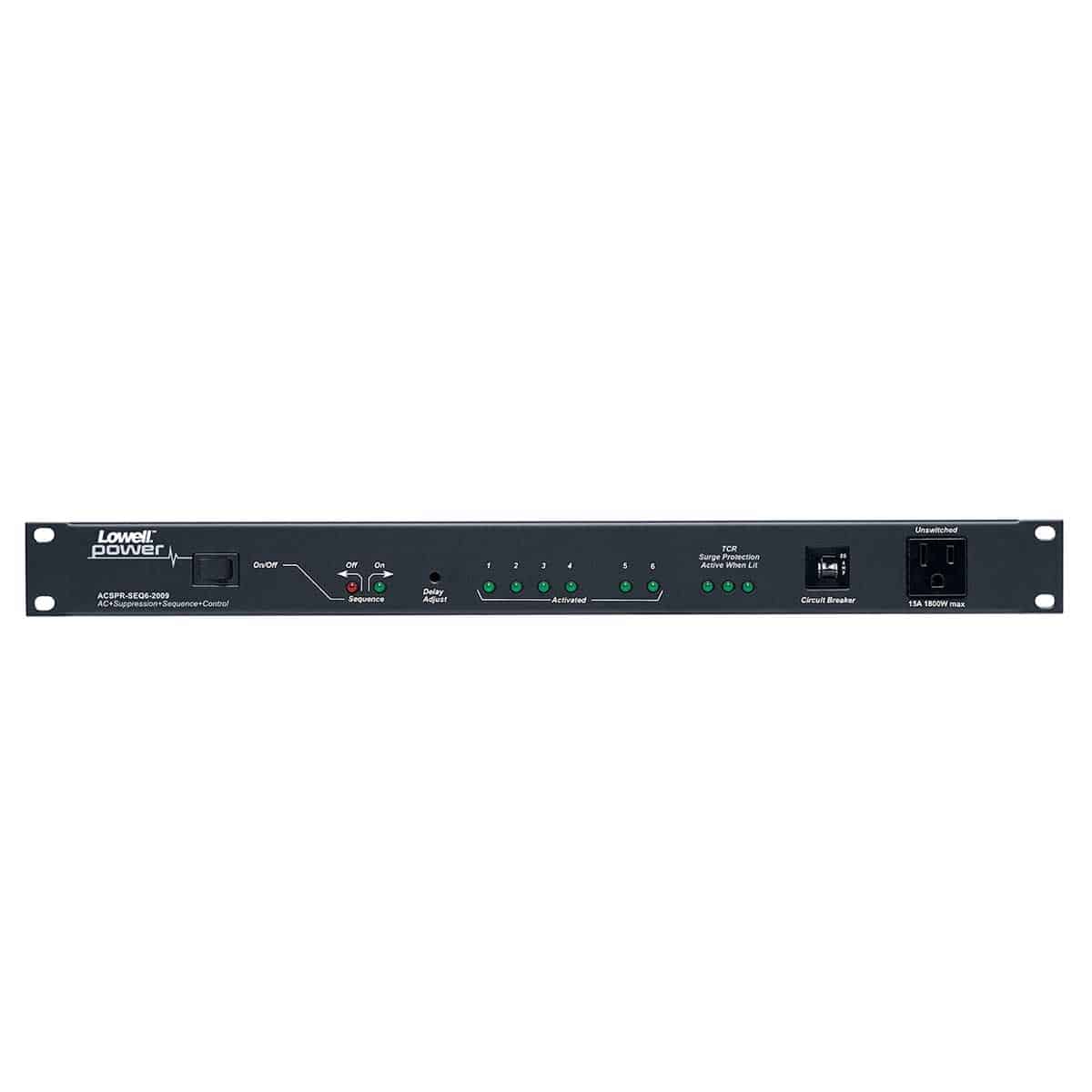

Power distribution panel with advanced surge protection, sequencer and RPC trigger features nine 15A NEMA outlets. The eight rear outlets include both switched outlets (controlled by switch) and unswitched outlets (always on); the front convenience outlet is unswitched. All outlets are clearly marked to assist the integrator in making proper connections. The sequencer is initiated by the switch and begins a delayed start up (or shut down) of the switched outlets (steps one through four) and any RPC units connected to the rear output terminal block (steps five and six). The panel is also remote controllable; it can be activated and deactivated by a remote switch or alarm system that's connected to the plug-in terminal blocks. Advanced Surge Protection provides three layers of protection for equipment on a single circuit. When fully active, triple clamping redundant (TCR) technology protects against power surges up to 72,000A.

---
