- Suppresses line to neutral with no ground contamination.
- TCR technology defeats surges up to 72,000 amps
- Chassis: 1.75 in. x 6 in. x 9 in.

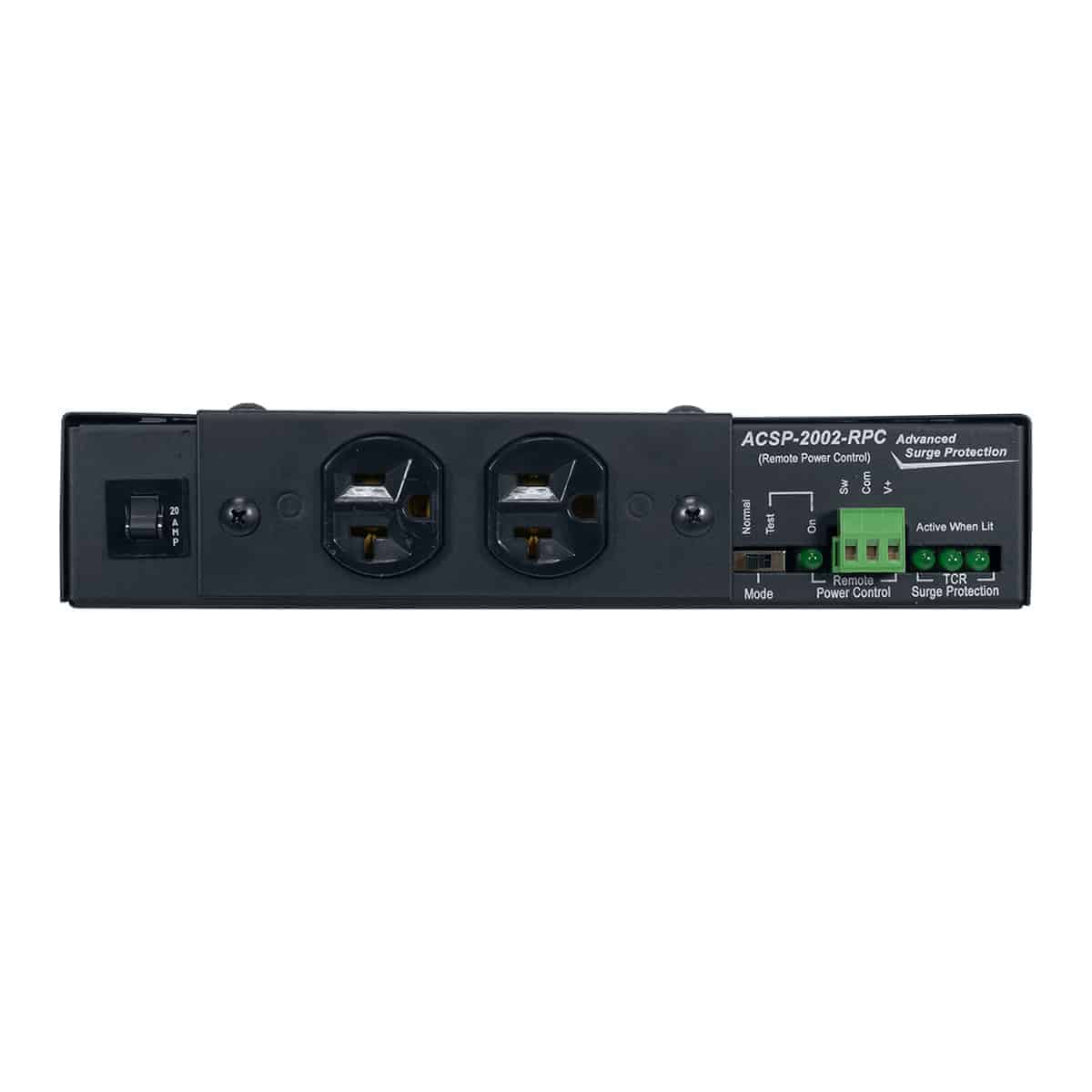

- One (1) NEMA 5-20R duplex receptacle on dual-position outlet plate. Plate rotates 90 degrees for front or side access to outlets.
- Front LEDs provide visual system status.
- Universal mounting brackets allow versatile installation.
- 6-ft. attached cord with NEMA 5-20P plug.
- Remote Power Control capability by a low voltage sequencer, switch or control system that provides a maintained dry contact closure.
- TAA compliant
- BAA compliant
- ETL Listed (conforms to UL1449-4)
- ANSI C62.41 compliant
- USA-certified steel
- Made in the USA with US and global components

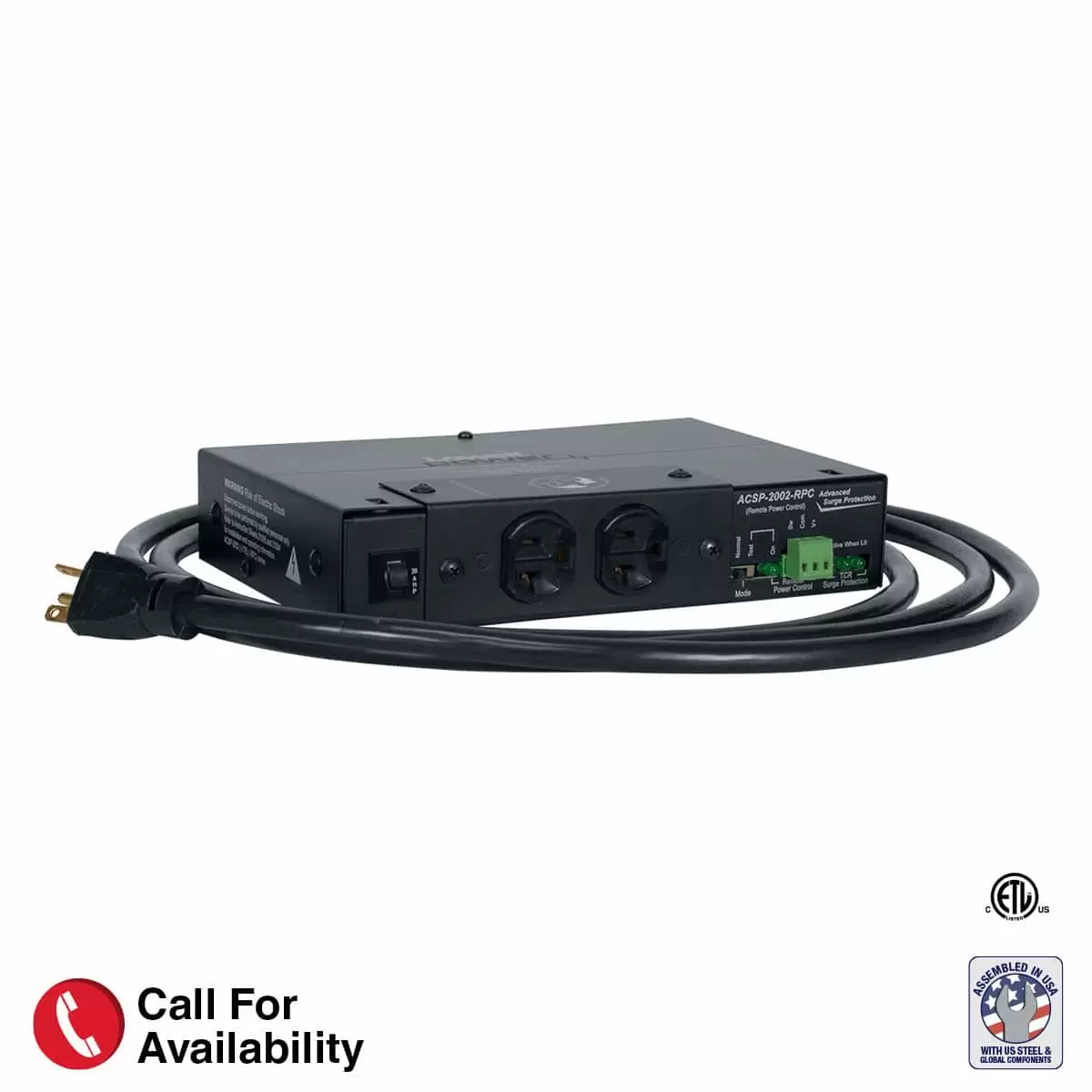

The 20A single-circuit surge protector shall be Lowell model ACSP-2002-RPC with one duplex receptacle. It shall protect the line to neutral without ground wire contamination. It shall be capable of protecting electronic equipment from transient voltages, spikes, and surges up to 72,000A, with a response time of less than 5 nanoseconds. The steel chassis shall measure 9″W x 6″D x 1.75″H (1U) and feature a black powder coat finish. The unit shall include mounting brackets and one 20A duplex receptacle mounted on a dual-position outlet plate that can be rotated 90º for front or side access. It shall include LED status indicators and remote power control capability (by low-voltage sequencer, switch or control system that provides a maintained dry contact closure, not included). The unit shall be made in the USA with US and global components. It shall be ETL Listed (conforms to UL1449-4), ANSI C62.41 compliant, Trade Agreements Act (TAA) compliant, and Buy American Act (BAA) compliant.
