rackmount 4-step power sequencer, 15A outlets

Rackmount 4-step power sequencer with outlets, ACR-SEQ4-1509

PDU with 9 (15A) Outlets, Sequencer, Remote Circuitry

Name: PDU with 9 (15A) Outlets, Sequencer, Remote Circuitry
SKU: ACR-SEQ4-1509
Availability: InStock

ACR-SEQ4-1509

$897.00 MSRP

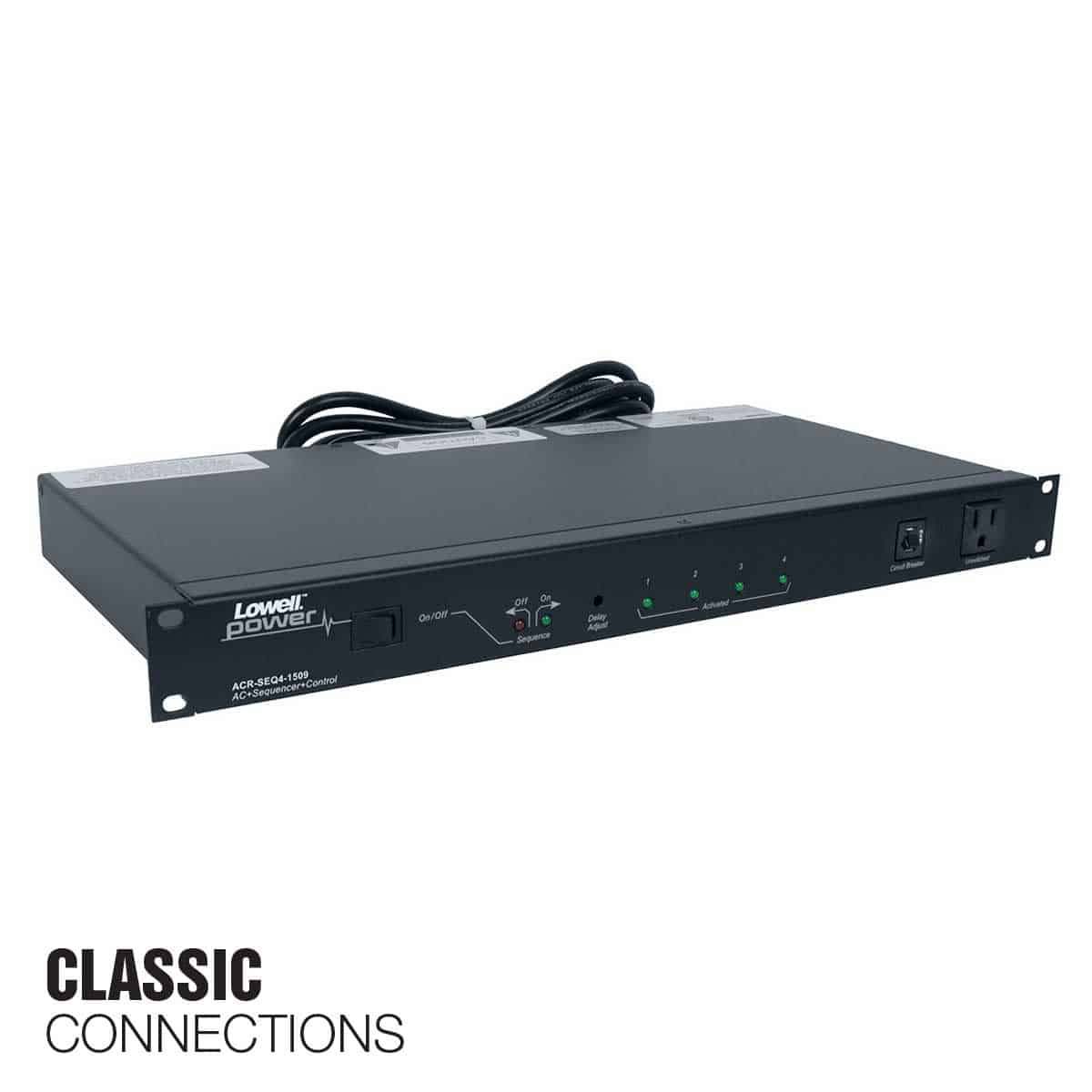

Power distribution unit model ACR-SEQ4-1509 features nine 15A power receptacles and 4-step sequencer for time-delayed activation/deactivation of equipment directly plugged into the six outlets that are controlled by the on/off rocker switch. The other three receptacles are always on. Includes rear terminal block to connect remote switches with momentary closure.

Add to Favorites

Compare

Chassis: 19 in. x 9 in. x 1.75 in. (1U)
Power Rating: 120VAC, 60Hz, 15A
Termination: 9 ft. attached cord with NEMA 5-15P plug

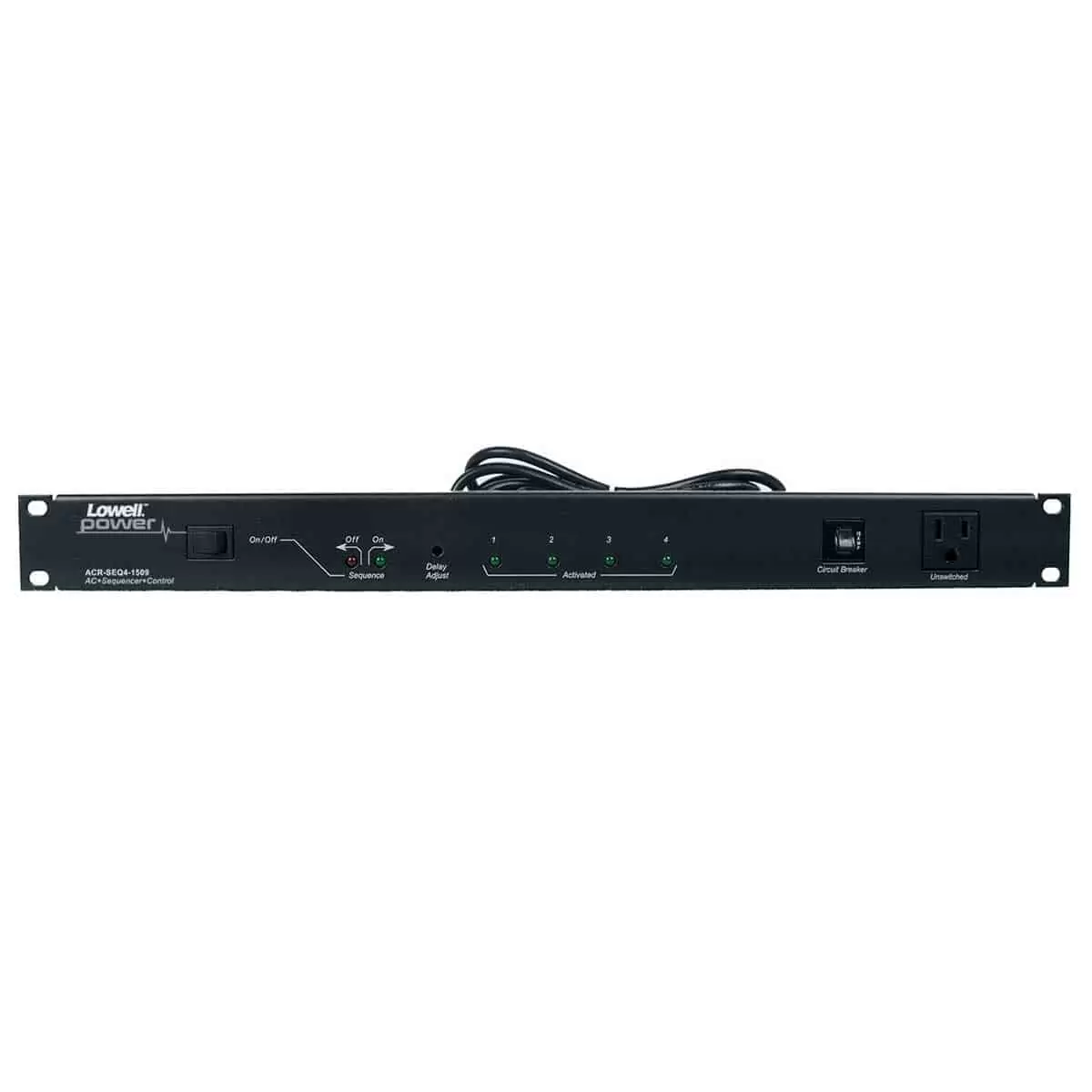

Activation: Rocker switch

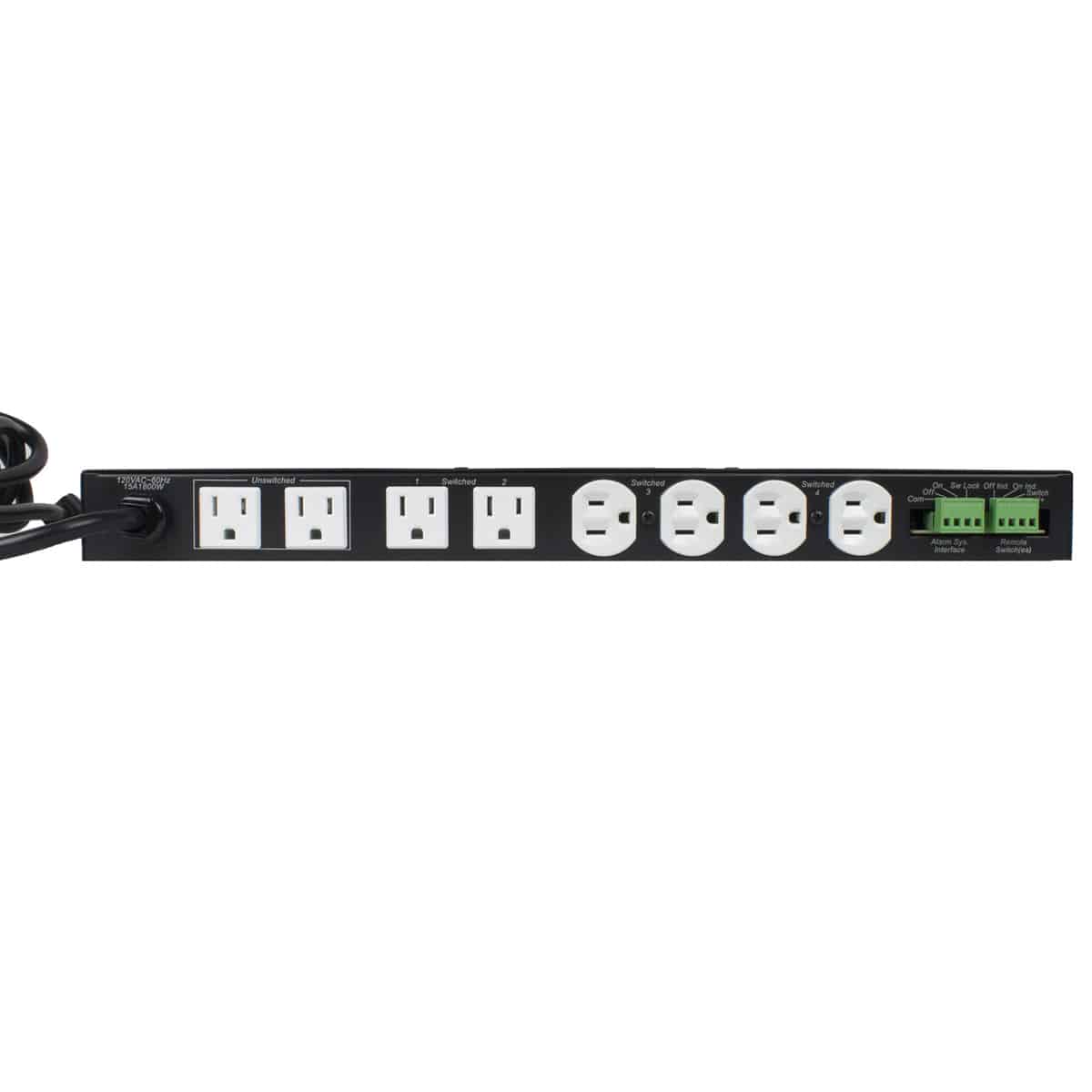

Outlets (9 total): 1 front 15A (un-switched), 2 rear 15A (un-switched) , 6 rear (15A) switched
Four-step sequencer has a delay between steps that can be set between 0.5 and 10 seconds (screwdriver adjustable)
Color coded LED status indicators
Rear terminal block for connection to optional remote switches with momentary closure.
Rear terminal block to allow system switches to be overridden for life safety system applications where fire code mandates an alarm interface.

Spec Sheet: 1606-ACRSEQ41509

TAA compliant
BAA compliant
EIA/TIA compliant
ETL Listed in US/Canada (UL60065)
USA-certified steel
Made in USA with US and global components

The 1U rackmount panel with nine 15A power outlets (one un-switched in front, two un-switched in rear, six switched in rear) and four-step sequencer shall be Lowell Model No. ACR-SEQ4-1509. It shall have a power rating of 120VAC 60Hz/15A with EMI/RFI filtering. The front rocker switch shall sequentially activate and deactivate equipment connected to the “switched” rear outlets in four steps. The sequence delay between steps shall be between 0.5 to 10 seconds, which shall be screwdriver adjustable. The steel chassis shall feature color coded LEDs and a rocker activation switch on the front. Overall measurements shall be 19 in. x 1.75 in. x 9 in. Termination shall be via an attached 9 ft. cord with NEMA 5-15P plug. The power panel shall be Made in USA using USA-certified steel. It shall be assembled with US and global components and have black powder-coat finish. It shall be ETL Listed, Trade Agreement Act (TAA) compliant, and Buy American Act (BAA) compliant.
