- Network pass-through ports (RJ45 and USB)
- High-speed charging connectors on panel front for convenient powering of service devices while working on equipment (USB A, USB A w/Qualcomm Quick Charge 3.0 technology, Type C)
- AC Power Outlets: 7 total (15A) NEMA outlets — 1 front, 6 rear
- Power Rating: 15A
- Power Input: 6 ft. attached cord with NEMA 5-15P plug
- Chassis: 19 in. x 9 in. x 1.75 in. (1U)
- Surge Suppression: Max surge current 40,000A

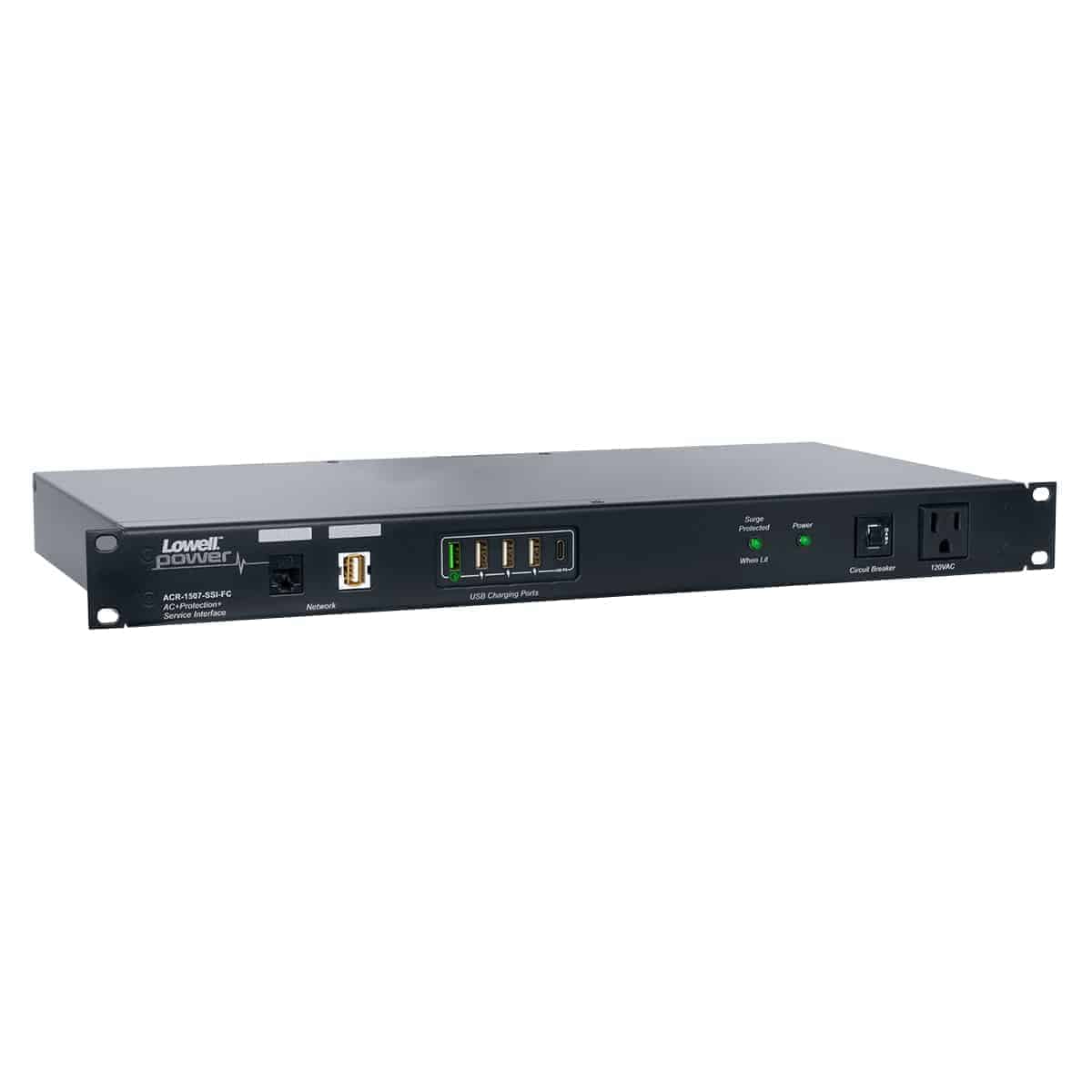

The rack shall include Lowell service interface panel model ACR-1507-SSI-FC, which shall feature two pass-through ports (RJ45 jack and USB-A) to allow quick access to network connections made at the rear of the unit. The panel shall also include five front charging ports (three USB-A, one USB-A with Qualcomm Quick Charge 3.0 technology, one Type-C), seven NEMA 5-15R power outlets (one front, six rear), and an attached 6′ power cord with 5-15P plug. The panel shall include surge protection capable of defeating surges up to 40,000A. The unit shall be ETL Listed to conform to UL60065.
