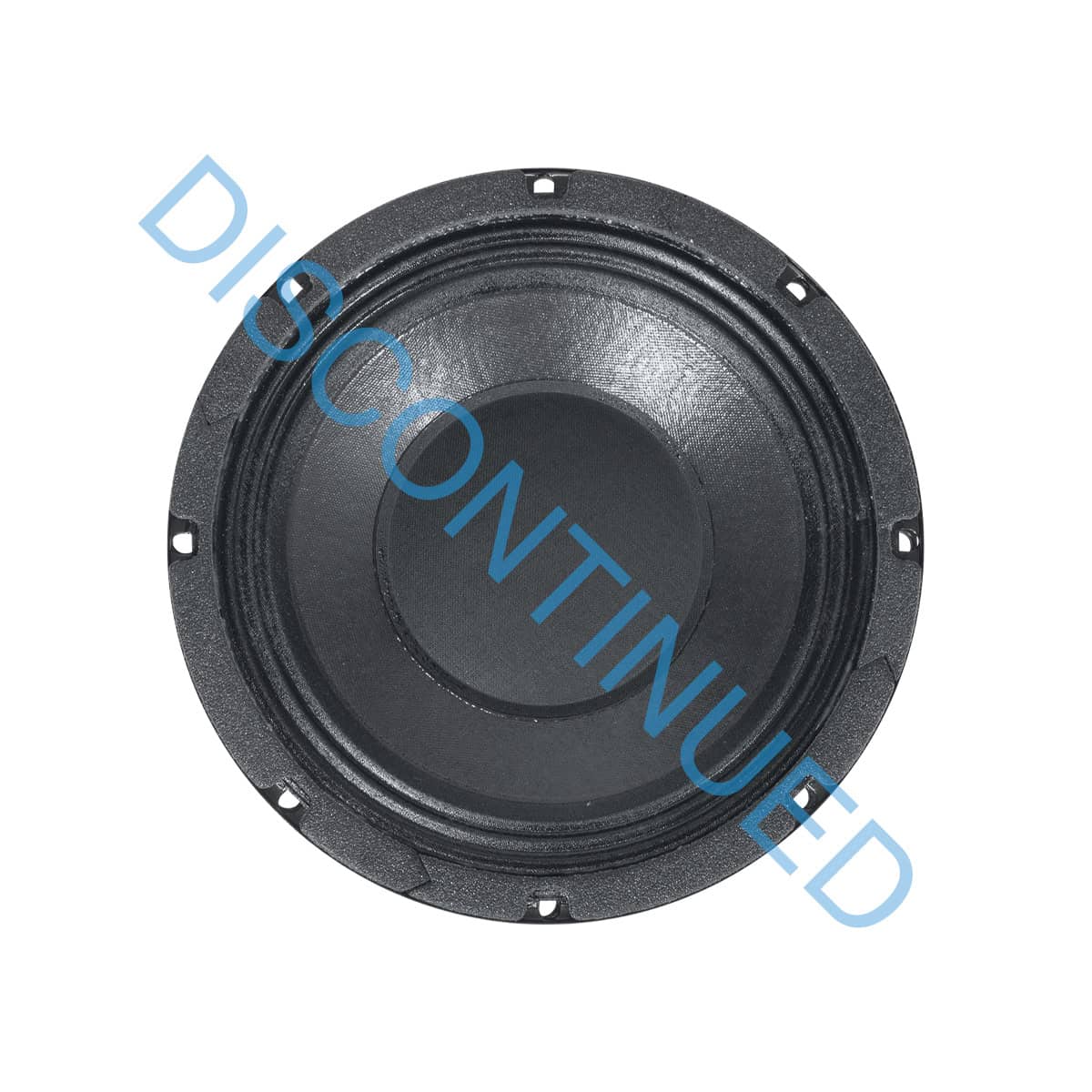

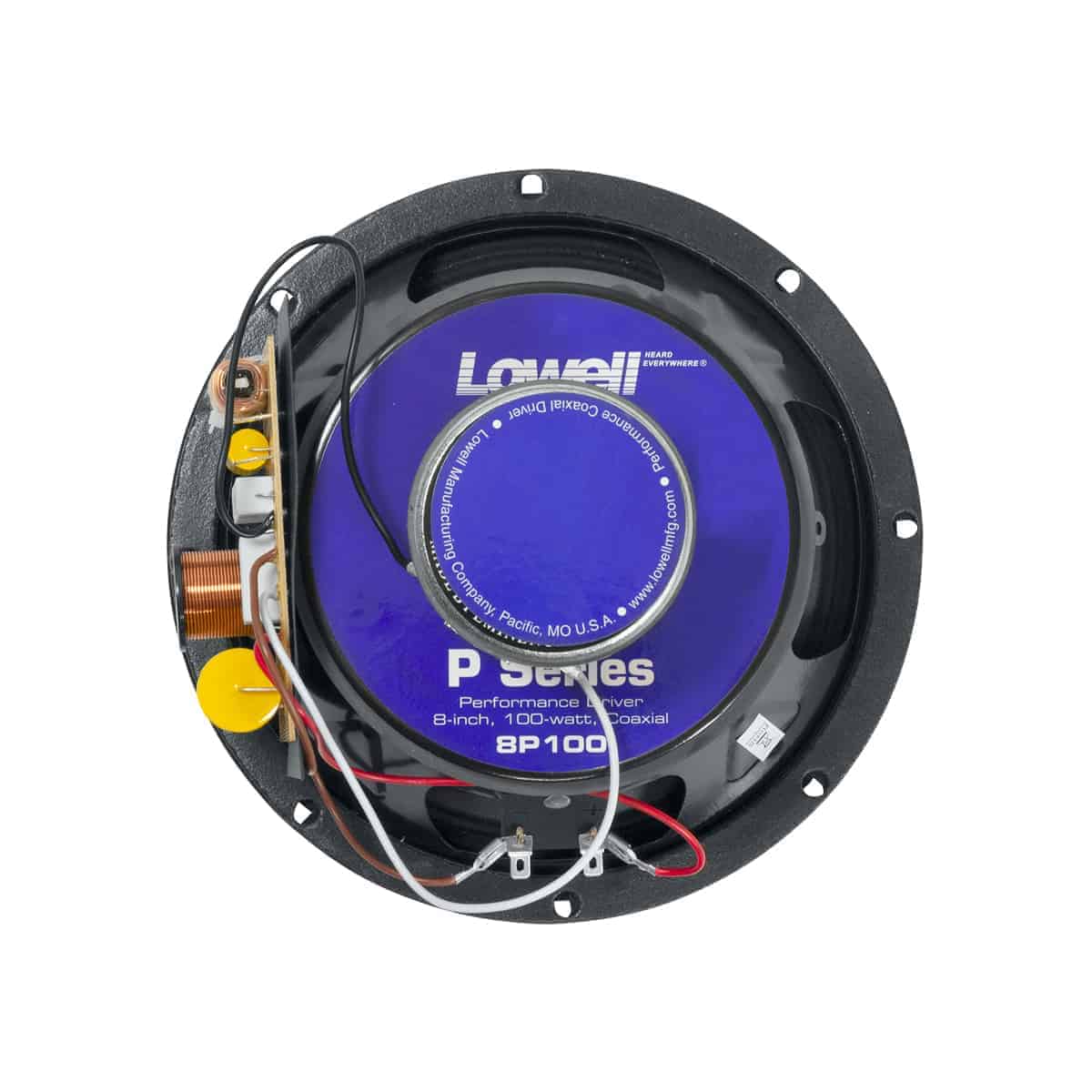

8 inch Coaxial Compression Speaker
8P100
$420.00 MSRP
$420.00 MSRP

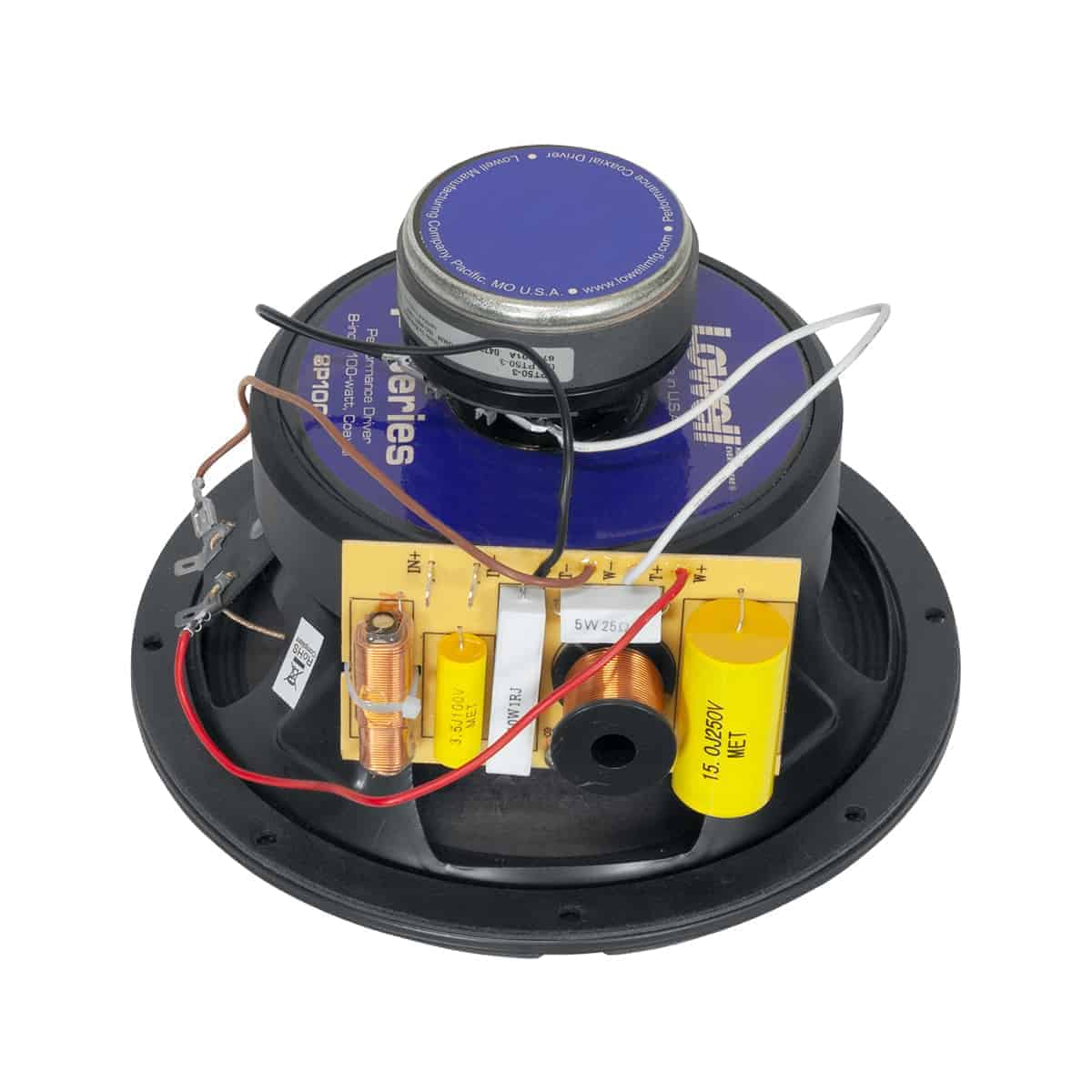

The 8-inch 100W coaxial driver shall be Lowell Model 8P100 which shall be of the coaxial compression type having electrically independent high and low frequency transducers. The low frequency section shall have an 8 inch diameter cone and the high frequency section shall be a compression driver tweeter. A built-in electrical crossover network shall be employed to accomplish the proper frequency division between the two drivers. The crossover shall be at 2400Hz with a second order high-pass and a second order low-pass filter. The driver shall be capable of producing a uniform audible frequency response over the range of 46Hz–20kHz (±6dB), with a dispersion angle of 105 degrees @ 2kHz octave (-6dB). Average sensitivity shall measure 93.8dB (SPL at 1W/1M). Power rating shall be 100W RMS. The low frequency voice coil shall have a diameter of 2 inches and shall operate in a magnetic field derived from a strontium ferrite (ceramic) magnet having a nominal weight of 38 oz. The high frequency voice coil shall have a diameter of 1 inch and shall operate in a magnetic field derived from a ceramic magnet having a nominal weight of 7.7 oz. Voice coil impedance shall be 8ohms. The driver shall have a round, structurally reinforced stamped 18-gauge steel frame with 8 inch overall diameter and eight holes equally spaced at 45 degrees on a 7.75 inch diameter mounting bolt circle. Overall depth of the driver shall not exceed 5.4 inches. External metal woofer parts shall be black electrocoat to resist rust and corrosion.
