8 inch Moisture Resistant Speaker with 25V/70V Transformer
8C10MRB-T72
$70.40 MSRP
$70.40 MSRP

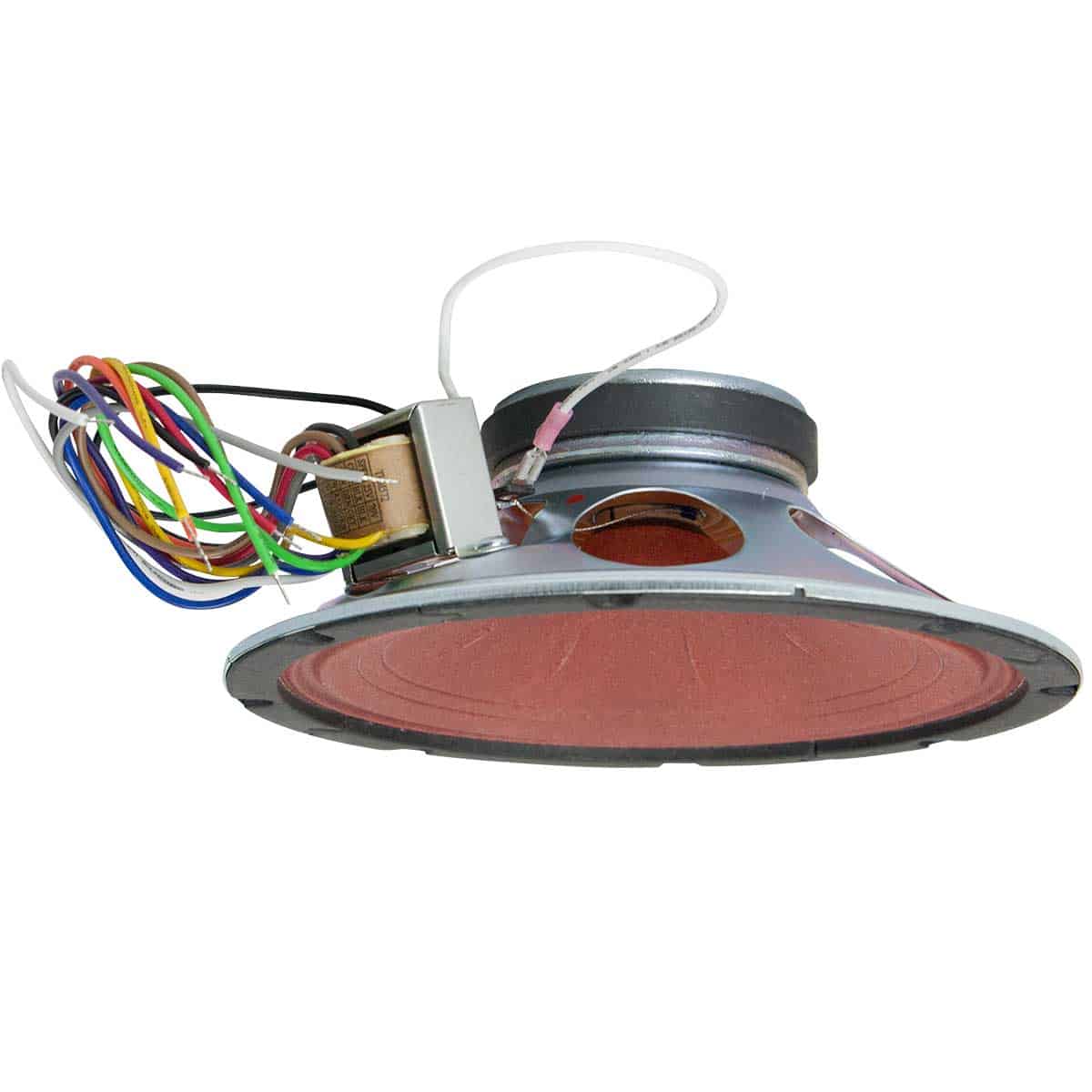

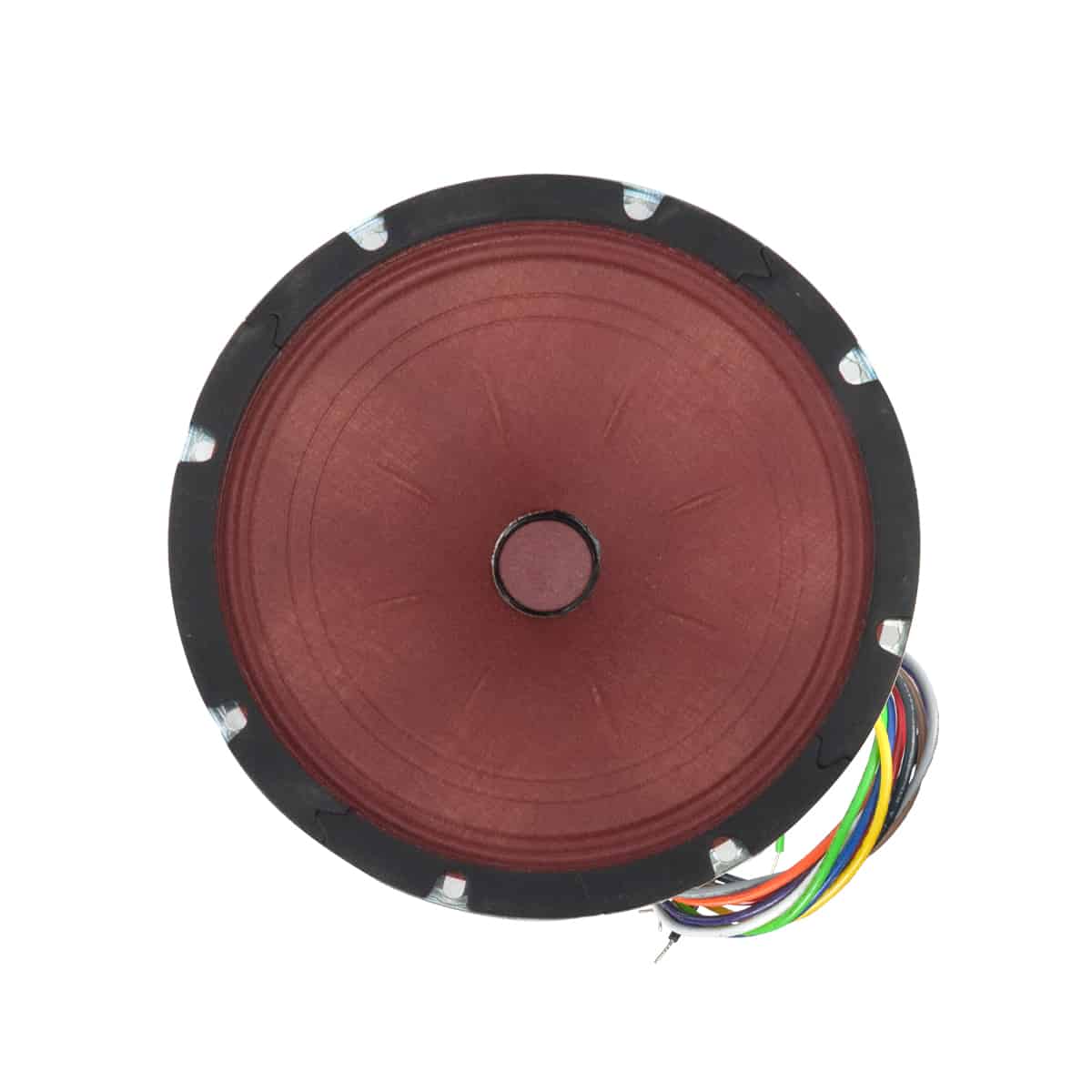

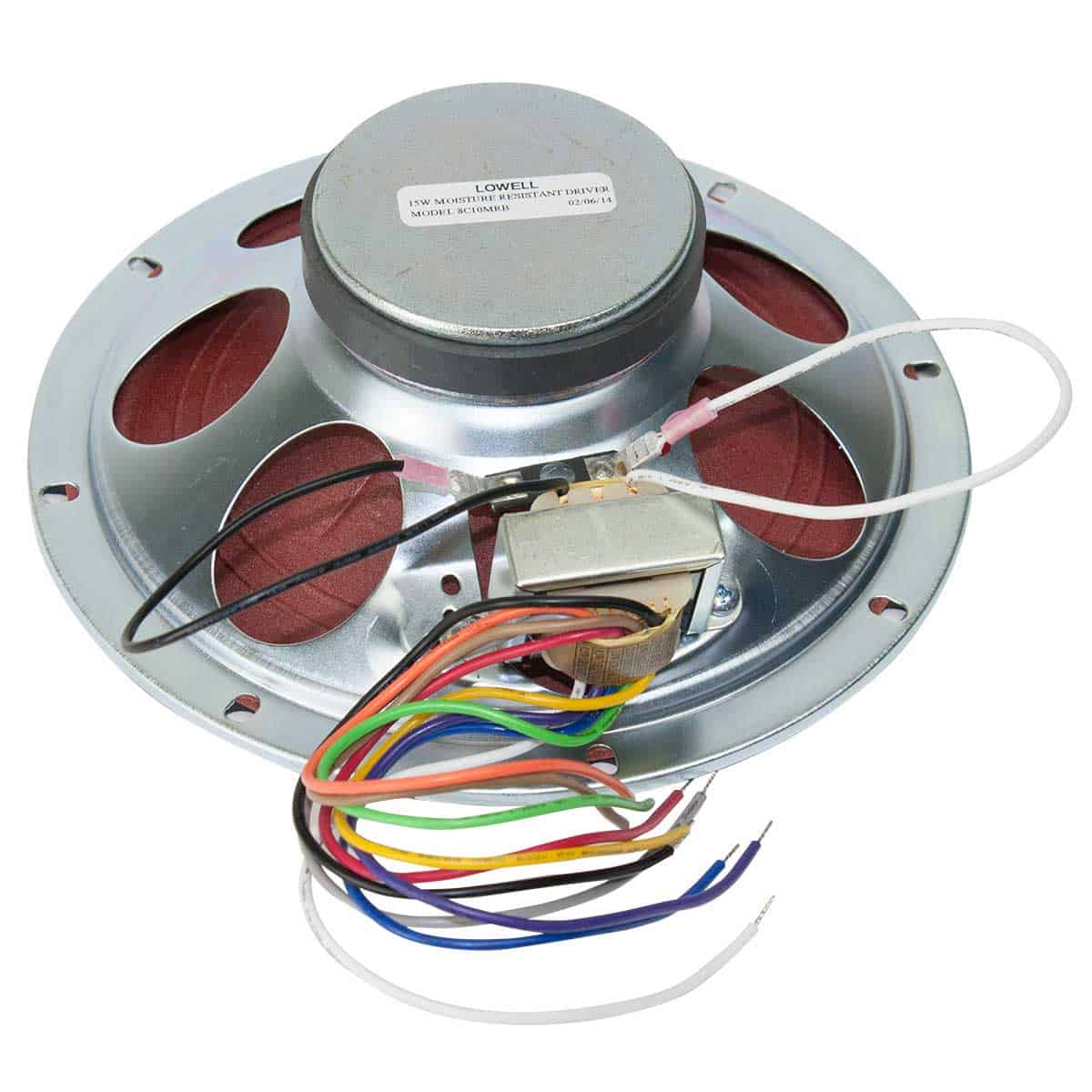

The 8-inch moisture-resistant single cone driver with mounted transformer shall be Lowell Model 8C10MRB-T72. It shall be the permanent magnet type with a cotton cloth cone treated with phenolic resin and coated with acrylic lacquer for moisture resistant performance. The voice coil shall have a diameter of 1 in. and operate in a magnetic field derived from a strontium ferrite (ceramic) magnet having a nominal weight of 10 oz. Voice coil impedance shall be 8ohms. Rated power capacity shall be 15 watts RMS. The frame shall be stamped 20-gauge steel with overall diameter of 8.062 in. and eight obround holes equally spaced at 45 degrees on a 7.625 in. diameter mounting bolt circle. External metal parts shall be zinc-plated to resist rust and corrosion. The mounted transformer shall be 70/25V dual voltage with primary taps at 0.25, 0.5, 1, 2 and 5W. The driver with transformer assembly depth shall not exceed 2.84 inches. It shall be capable of producing a uniform audible frequency response over the range of 75Hz–7.5kHz (±6dB) and 50Hz-20kHz (±17.8dB) with dispersion angle of 90 degrees conical @2000Hz (-6dB). Average sensitivity shall measure 96.8dB (SPL at 1W/1M).
