810-T72: 8-in 15W dual cone driver with 8W transformer

8 inch Dual Cone Speaker with 70V 8W Transformer

Name: 8 inch Dual Cone Speaker with 70V 8W Transformer
SKU: 810-T870
Price: 103.00 USD
Availability: InStock

810-T870

$103.00 MSRP

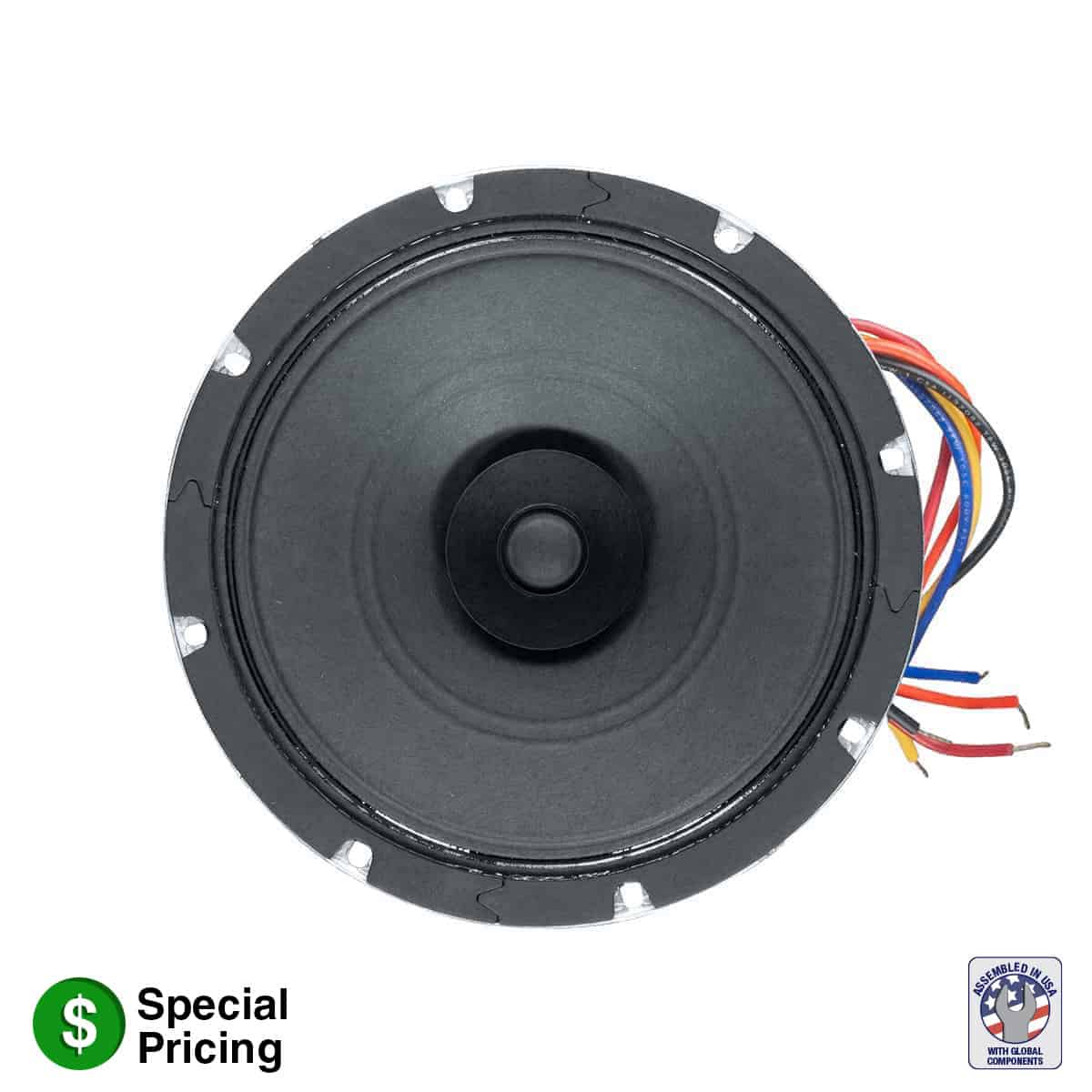

Model 810-T870 is a dual cone 8-inch 15W driver with mounted 70V 8W transformer that provides solid performance for paging and background music. The driver features a 10 oz. ceramic magnet, 3/4-inch hard fiber whizzer cone, 1-inch voice coil and 20-gauge steel frame with zinc-plated finish. Order grille and enclosure separately.

Add to Favorites

Compare

Driver: 8 in. 15W dual cone with 10 oz. ceramic magnet, hard fiber whizzer cone and 1 in. voice coil.
Frame: 20-gauge steel with zinc-plated finish.
Power Rating: 15W
Mounting Bolt Circle: 7.625 in. diameter
Transformer: 70V with taps at 1, 2, 4, 8W
Assembly Frequency Response: 50Hz-11.6kHz (±6dB) and 50Hz- 20kHz (±6.4dB)
Assembly Mounting Depth: 3.0 in.
Assembly Dispersion Angle: 95 degrees conical
Assembly Average Sensitivity: 97.9 dB

Spec Sheet: 1443-810T870

Assembled in U.S.A. with global components
Meets or exceeds industry standards

The dual cone 8-inch speaker shall be Lowell Model No. 810-T870 which shall be of the permanent magnet type having a seamless molded fiber cone with a hard fiber whizzer cone mechanically coupled to a voice coil for extended high frequency response. Power rating shall be 15 watts RMS. The voice coil shall have a 1 inch diameter and shall operate in a magnetic field derived from a strontium ferrite (ceramic) magnet having a nominal weight of 10 oz. Voice coil impedance shall be 8ohms. The driver shall have a round, structurally reinforced stamped 20-gauge steel frame with 8.062 in. overall diameter and eight obround holes equally spaced at 45 degrees on a 7.625 in. diameter mounting bolt circle. Overall depth shall not exceed 3.0″ for the assembly. External metal parts shall be zinc-plated to resist rust and corrosion. The mounted transformer shall be 70V with selectable taps at 1, 2, 4, and 8W. The assembly shall be capable of producing a uniform audible frequency response over the range of 50Hz-11.6kHz (±6dB) and 50Hz- 20kHz (±6.4dB) with dispersion angle of 95 degrees conical @2000Hz-6dB. Average sensitivity shall measure 97.9dB (SPL at 1W/1M).
