6 inch Coaxial Speaker | 6A40 - CLOSEOUT

Name: 6 inch Coaxial Speaker | 6A40 - CLOSEOUT
SKU: 6A40
Availability: InStock

Special Pricing - While Supplies Last

$12.20 MSRP

CLOSEOUT | Call 800-325-9660 for Availability

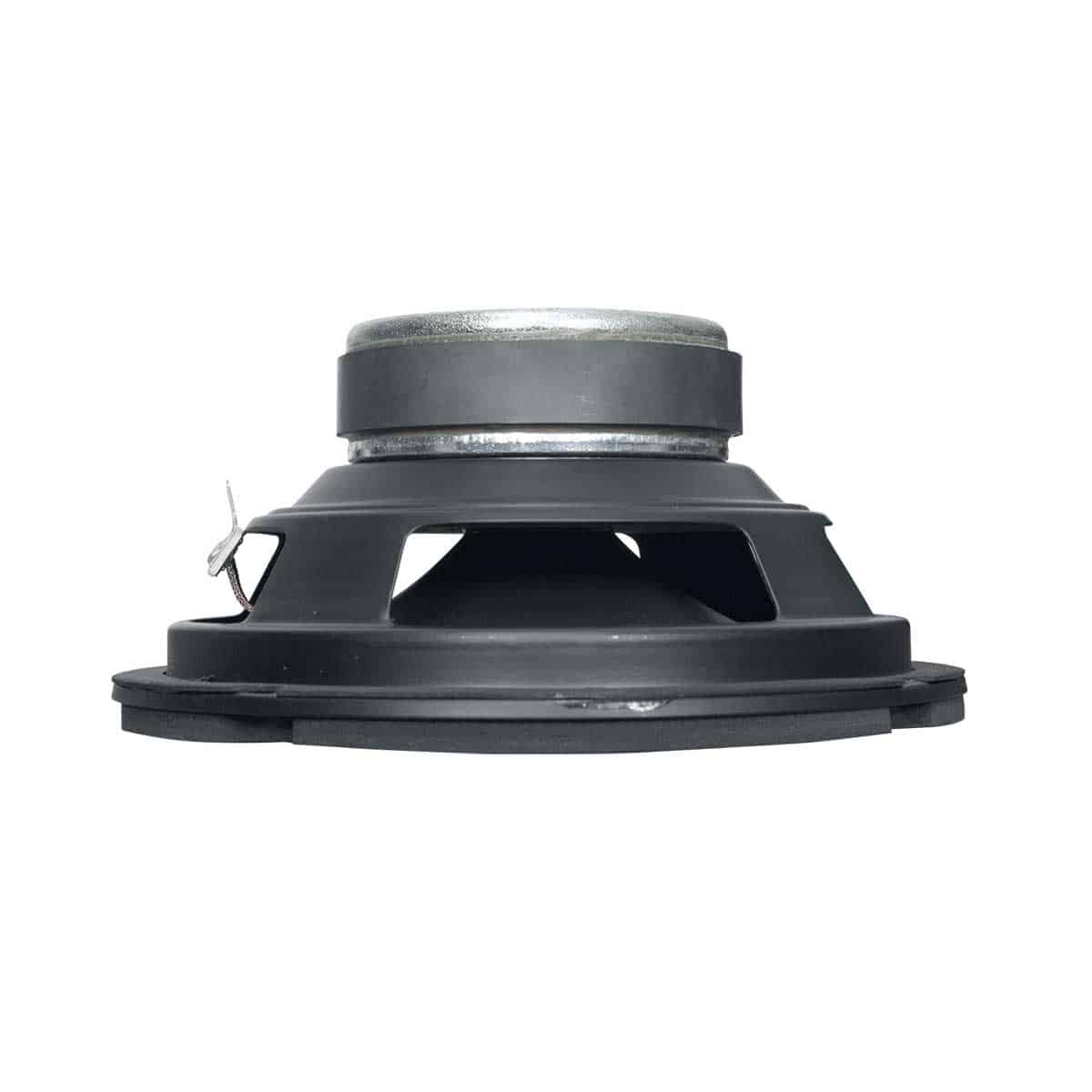

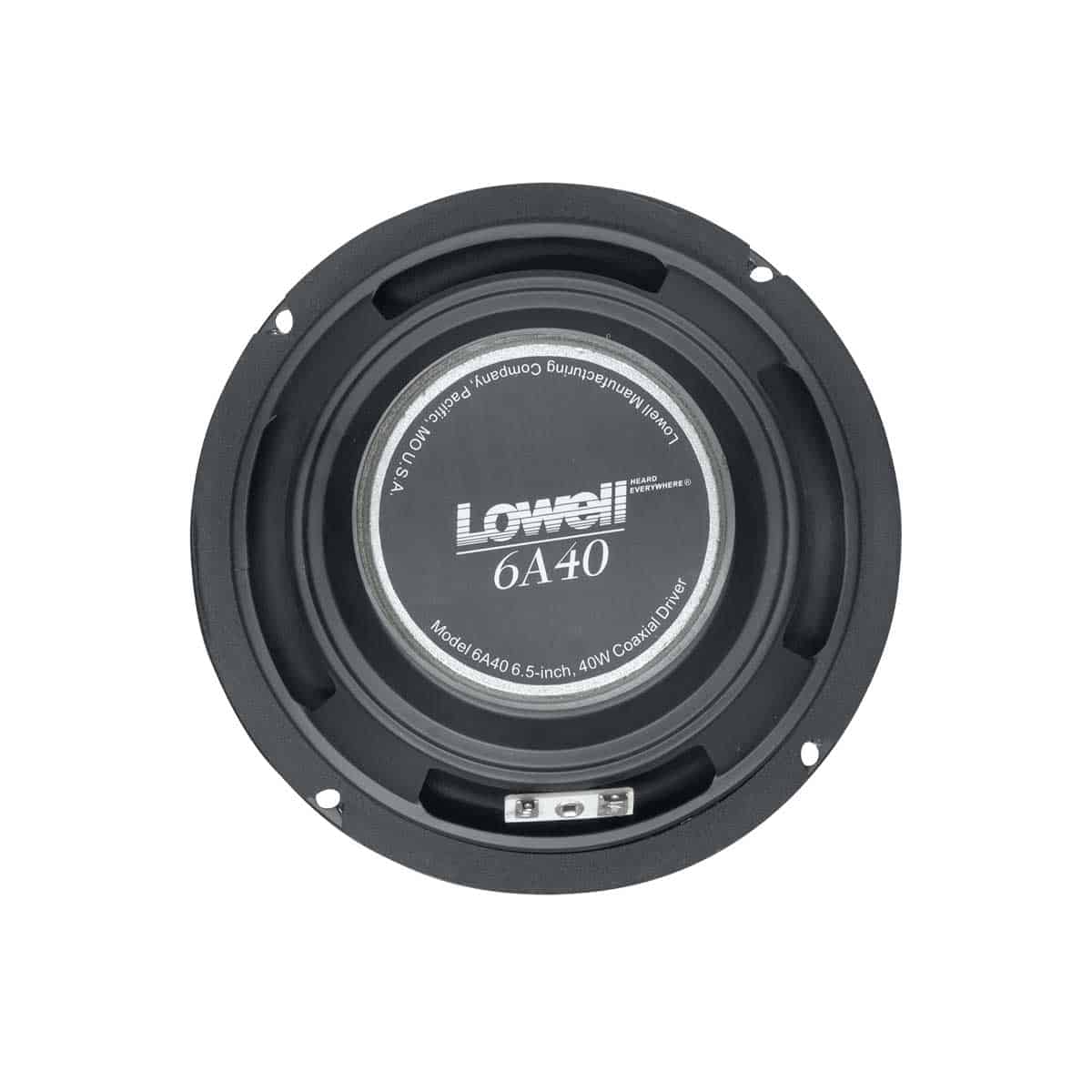

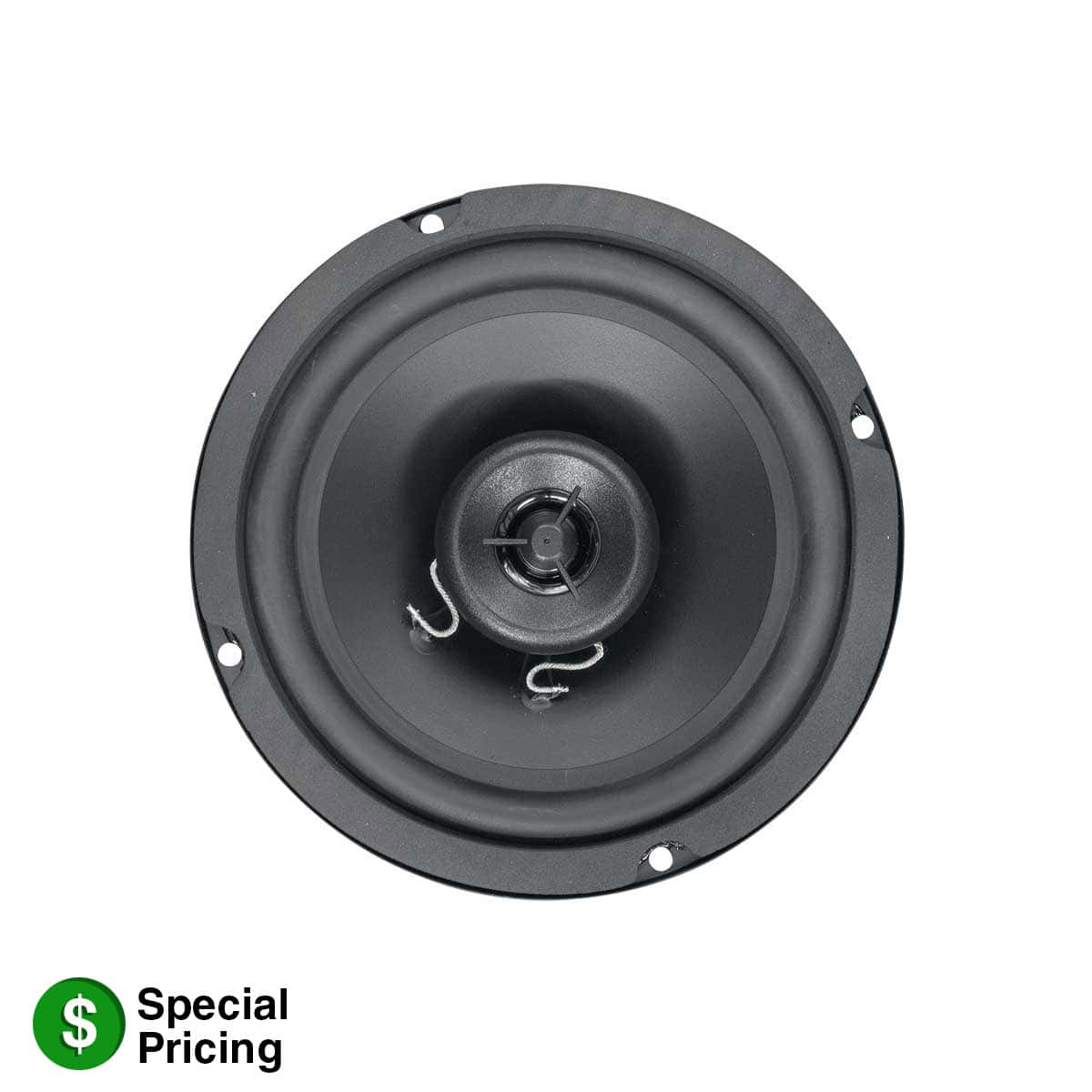

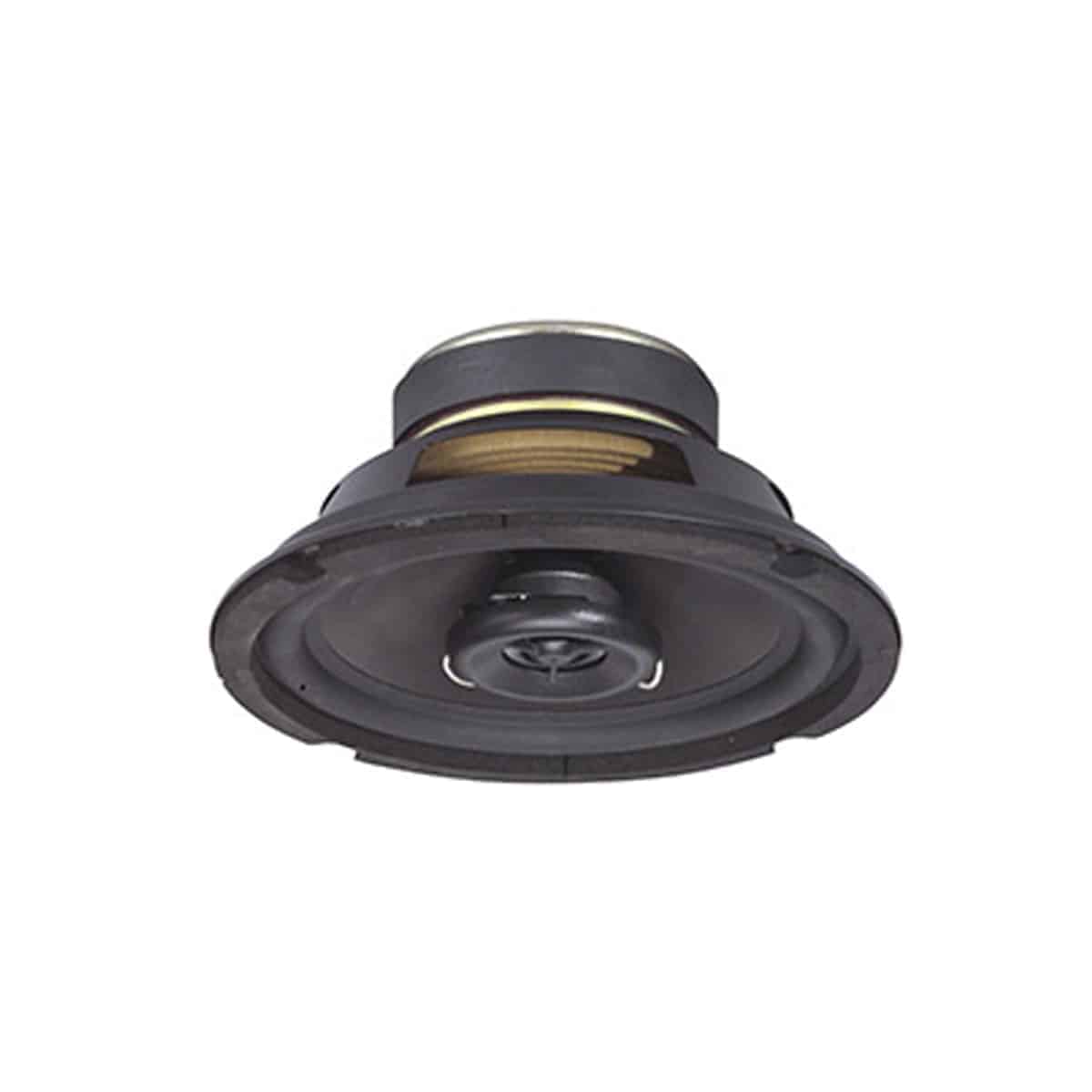

Model 6A40 is a 6.5-inch coaxial driver that provides excellent voice/music reproduction over a large coverage area. It has wide dispersion (150 degrees) and a small architectural footprint. The driver is engineered for very high quality paging and background music and can be used in hotel lobbies, retail stores, transportation terminals and similar venues where clear, intelligible communication with accurate reproduction is key. Order grille and enclosure separately.

Add to Favorites

Compare

Description: 6.5 in. 40W coaxial driver with 10 oz. magnet, 1″ copper voice coil, and polypropylene cone with half-roll rubber surround for long cone travel and good edge damping
Basket: 20-ga. stamped steel, black enamel paint
Mounting Depth: 3 in.
Mounting Bolt Circle: 6.13 in.
Dispersion Angle: 150 degrees conical
Frequency Response: 40Hz-20kHz (nominal); 40Hz-20kHz (±6dB)
Average Sensitivity: 88dB

Spec Sheet: 1588-6A40

The driver shall be Lowell Model No. 6A40 which shall be of the coaxial type having electrically independent high and low frequency transducers. The low frequency section shall have a 6.5 inch diameter polypropylene cone and the high frequency section shall have a tweeter with a 1” balanced-drive dome. A built-in electrical crossover network shall be employed to accomplish the proper frequency division between the two drivers. The crossover frequency shall be at 4000Hz with a first order high-pass filter. The driver shall be capable of producing a uniform audible frequency response over the range of 40Hz-20kHz+6dB with a dispersion angle of 120 degrees conical @2000Hz-6dB. The average sensitivity shall measure 85dB (SPL at 1W/1M). Rated power handling shall be 40 watts RMS. The low frequency voice coil shall have a diameter of 1 inch and shall operate in a magnetic field derived from a ferrite (ceramic) magnet having a nominal weight of 10 oz. The high frequency voice coil shall have a diameter of 0.53 inches and operate in a magnetic field derived from a ferrite (ceramic) magnet having a nominal weight of 2 oz. The voice coil impedance shall be 8 ohms. The driver shall have a round, structurally reinforced stamped 20 ga. steel frame to maintain precise mechanical alignment and shall provide facilities for mounting a transformer. The driver shall have an overall diameter of 6.5 in. with eight obround holes equally spaced at 45 degrees on a 6.13 in. diameter mounting bolt circle. The mounting depth shall not exceed 3 in. (not including optional transformer). External metal parts shall be finished in black enamel paint or zinc plating to resist rust and corrosion.
