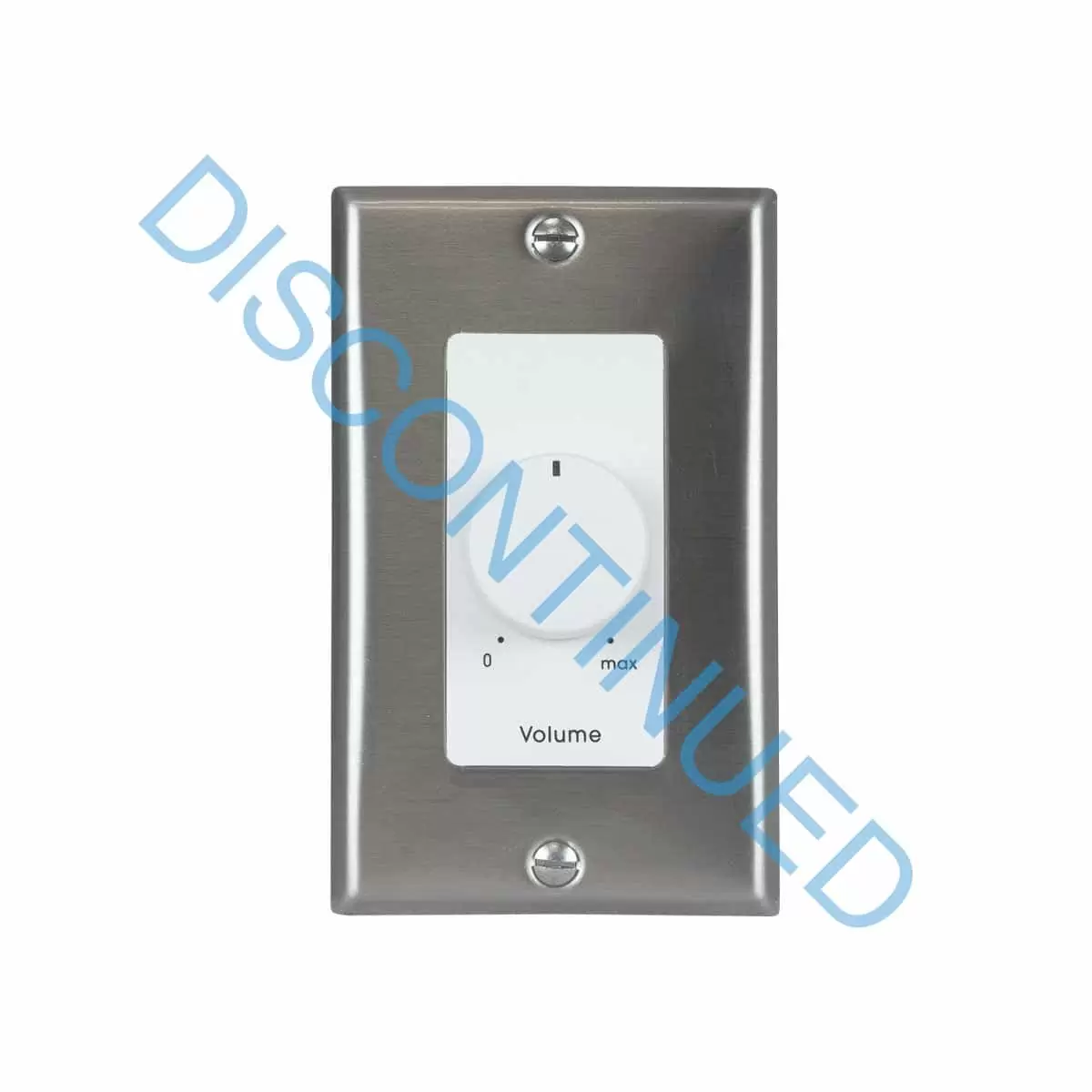

25LVC-DSW - DISCONTINUED

Name: 25LVC-DSW - DISCONTINUED
SKU: 25LVC-DSW
Availability: InStock

SEE ALTERNATIVE: 25LVC-DW

$62.20 MSRP

CLOSEOUT | Call 800-325-9660 for Availability
Recommended Alternative: 25LVCDB | 25LVCDW

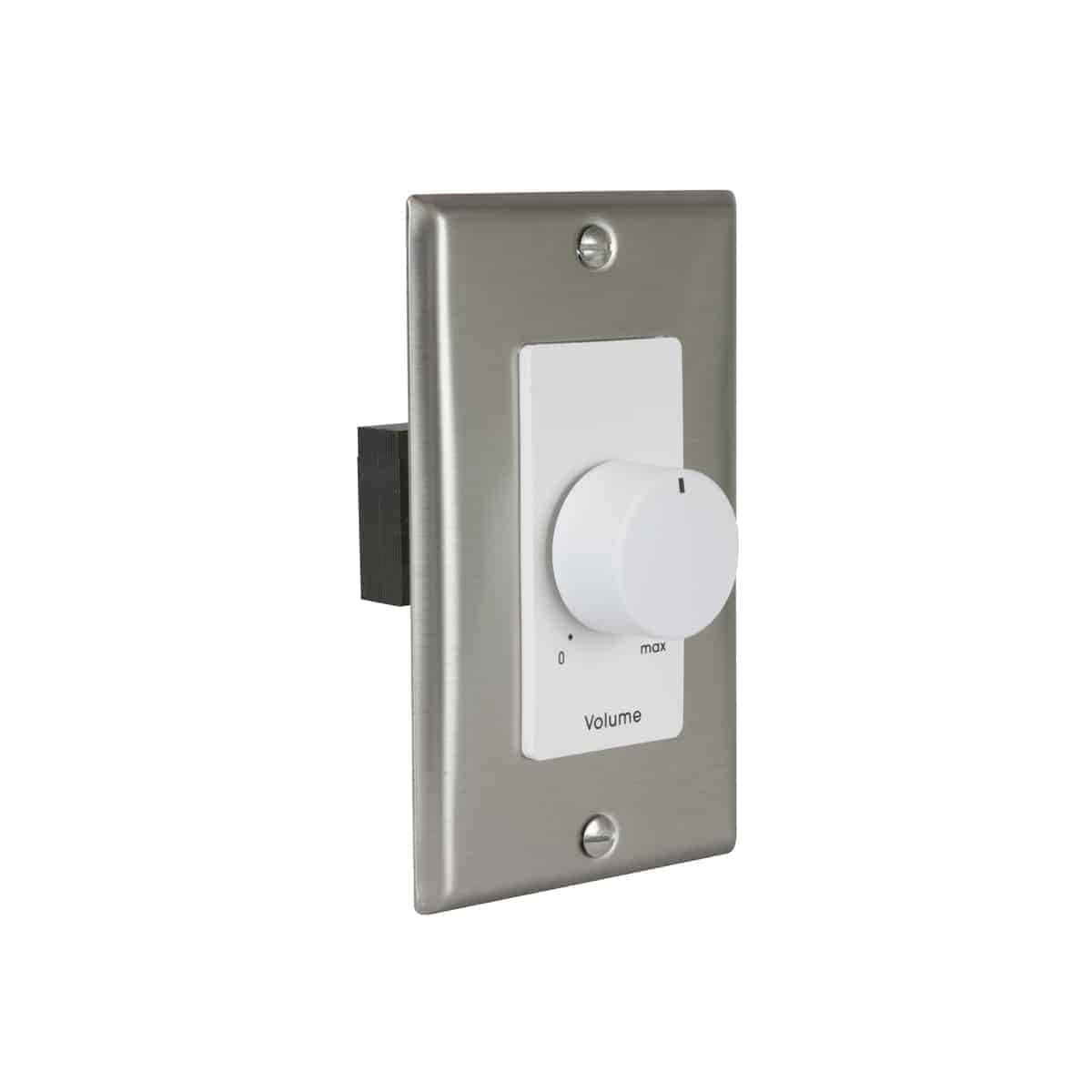

Mono autoformer attenuator volume control with rotary dial for use with 25V/70V speaker line features 25W power rating, 3dB per step attenuation (two steps of 6dB each before off) and Phoenix style plug-in screw termination strips. Includes decorator style one-gang stainless steel wall plate with white sub-plate.

Add to Favorites

Compare

Power Rating: 25W
Attenuation: 3dB per step (33dB total)
Use With: 25V/70V speaker line
Activation: Rotary dial
Volume Positions: 0-10
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang decorator style
Finish: Stainless Steel & White
Fits standard E.O. box (2.125 in. min. depth)

Spec Sheet: 2227-25LVCDSW
Install: 19184-LVC

Assembled in USA, components from China
ETL Listed (UL60065, UL2043)

The ETL Listed (UL60065, UL2043) MONO attenuator/volume control shall be Lowell Model 25LVC-DSW with 25W power rating and 3dB per step attenuation. It shall include a decorator style one-gang wall plate with stainless steel and white finish. The device shall mount in an E.O. box with minimum inside dimensions of 1.875 in. x 2.688 in. x 2.125 in. (box not included).

P1X: Surface-mount wall box, 1-gang
