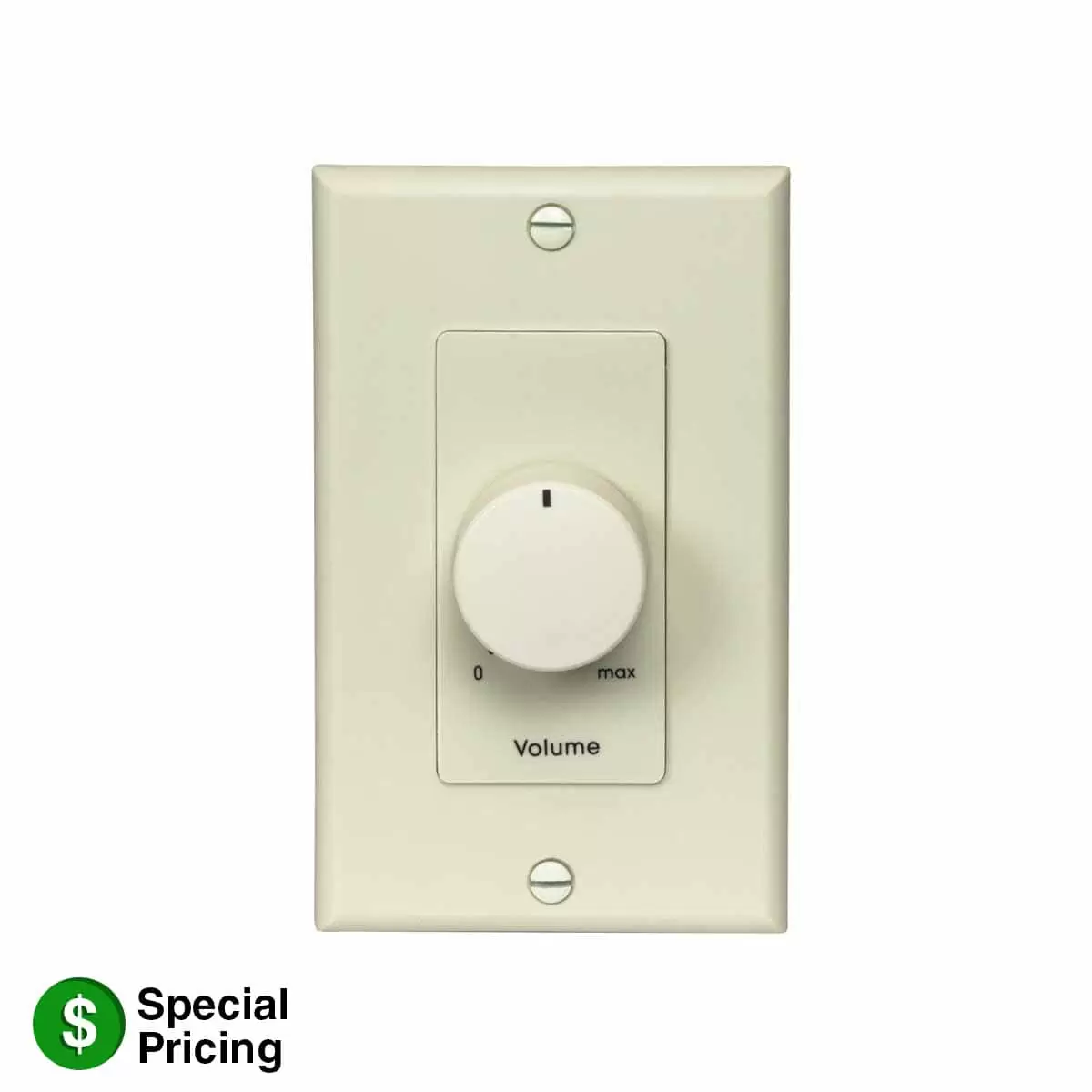

25W Mono Volume Control, Almond | 25LVC-DA - CLOSEOUT

Name: 25W Mono Volume Control, Almond | 25LVC-DA - CLOSEOUT
SKU: 25LVC-DA
Availability: InStock

Special Pricing - While Supplies Last

$28.80 MSRP

CLOSEOUT | Call 800-325-9660 for Availability
Recommended Alternative: 25LVCDB | 25LVCDW

Mono autoformer attenuator volume control with rotary dial for use with 25V/70V speaker line features 25W power rating, 3dB per step attenuation (two steps of 6dB each before off) and Phoenix style plug-in screw termination strips. Includes decorator style one-gang almond wall plate.

Add to Favorites

Compare

Power Rating: 25W
Attenuation: 3dB per step (33dB total)
Use With: 25V/70V speaker line
Activation: Rotary dial
Volume Positions: 0-10
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang decorator style
Finish: Almond
Fits standard E.O. box (2.125 in. min. depth)

Spec Sheet: 2223-25LVCDA
Install: 19184-LVC

Assembled in USA, components from China
ETL Listed (UL60065, UL2043)

The ETL Listed (UL60065, UL2043) MONO attenuator/volume control shall be Lowell Model 25LVC-DA with 25W power rating and 3dB per step attenuation. It shall include a decorator style one-gang wall plate with almond finish. The device shall mount in an E.O. box with minimum inside dimensions of 1.875 in. x 2.688 in. x 2.125 in. (box not included).

P1X: Surface-mount wall box, 1-gang
