RPAK with 8" Driver, dual voltage transformer, grille, and tile-bridge

2 PACK: 8 inch Dual Cone Ceiling Speaker with 25/70V Xfmr, Grille, Bridge

Name: 2 PACK: 8 inch Dual Cone Ceiling Speaker with 25/70V Xfmr, Grille, Bridge
SKU: RPAK81072LC
Availability: InStock

RPAK-810-72-LC

$170.80 MSRP

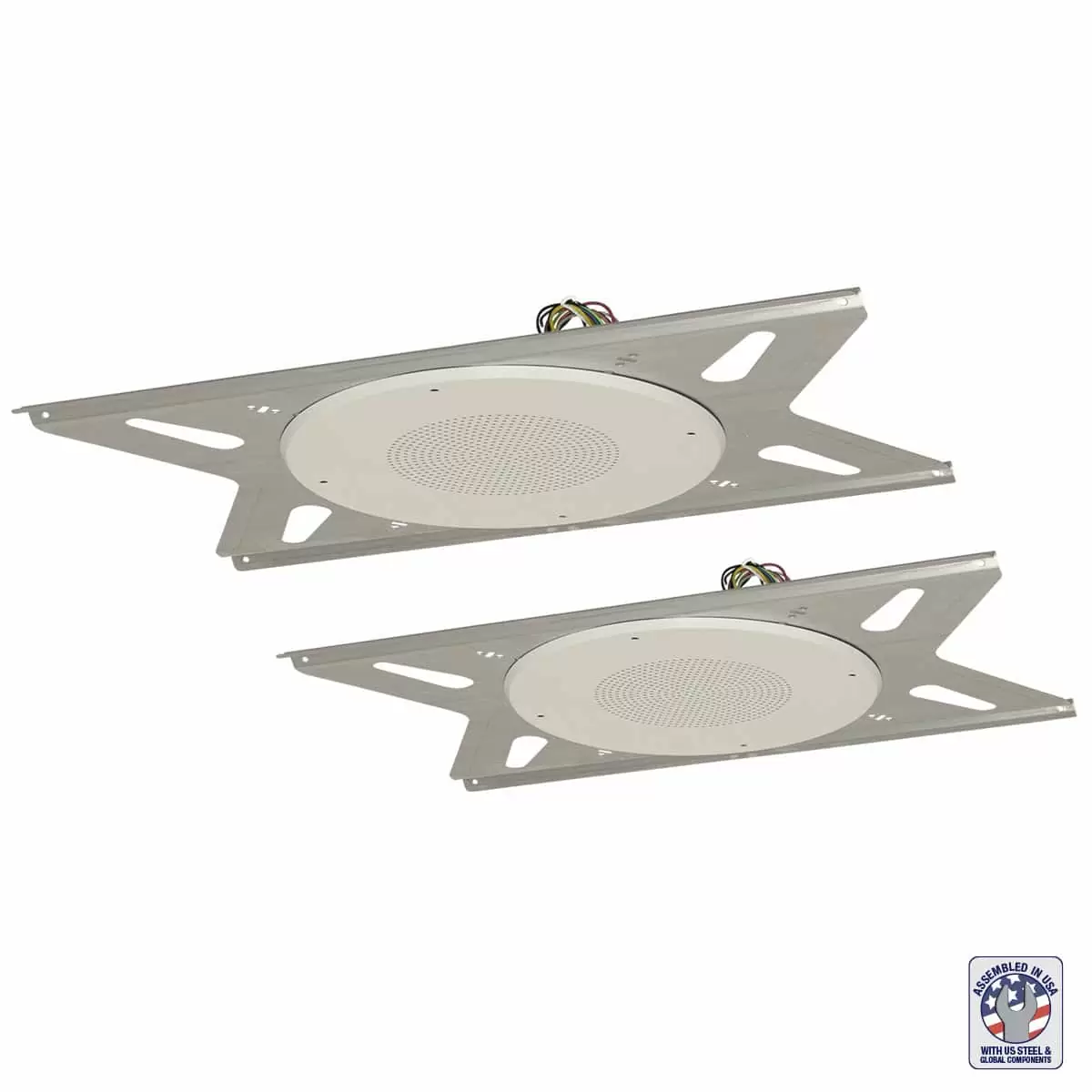

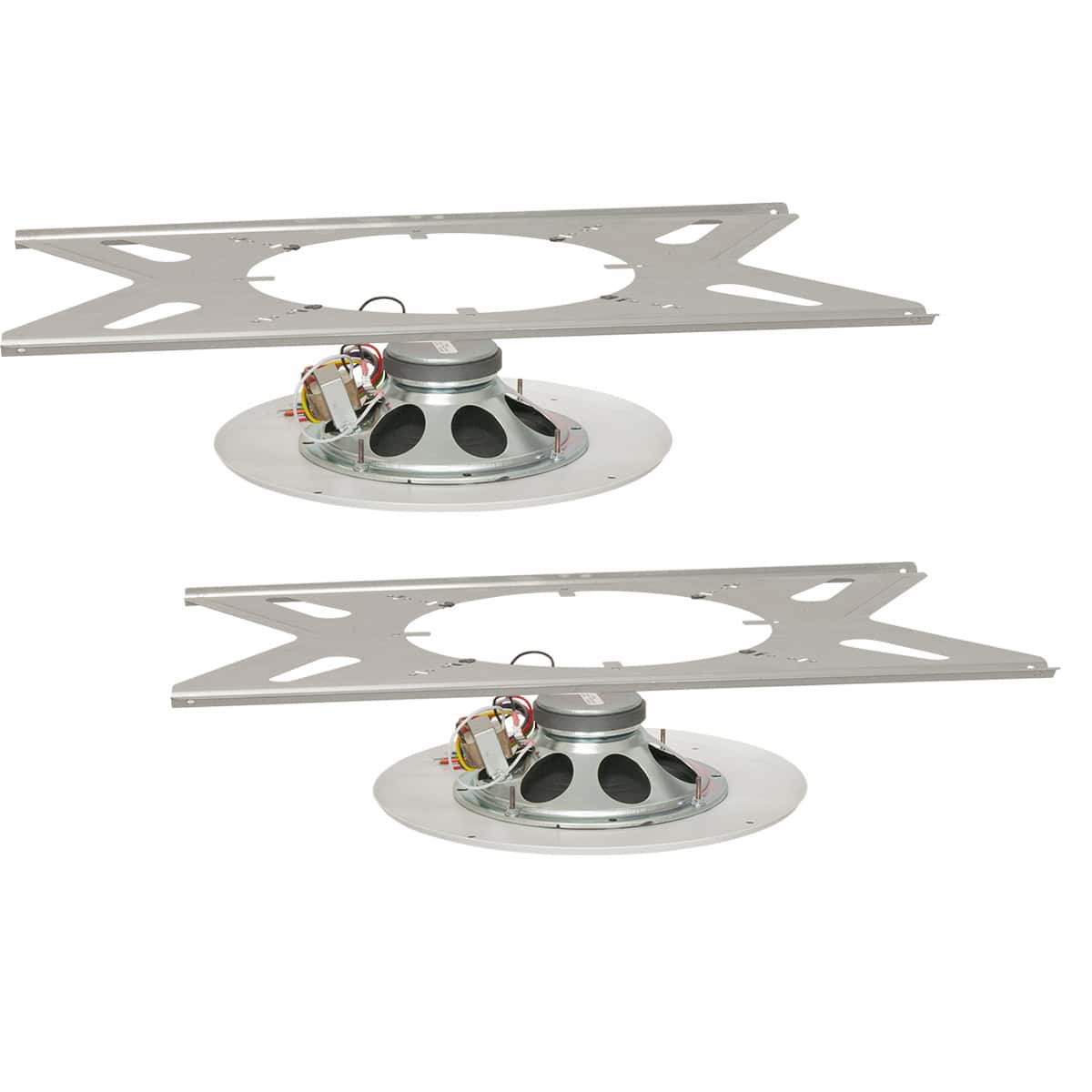

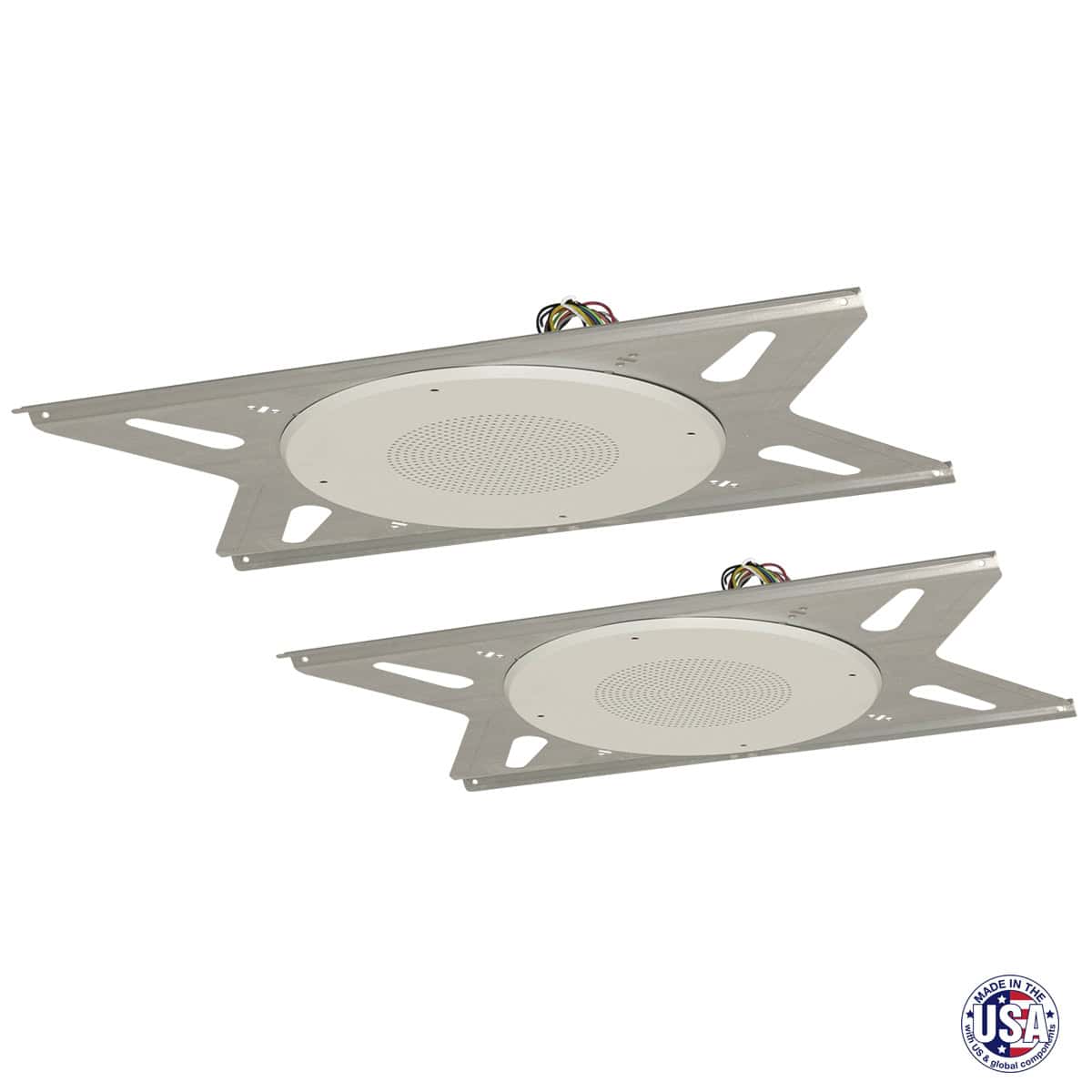

Model RPAK-810-72-LC, for general purpose paging and background music, includes a set of two (2) 8-inch 15W dual cone speakers with factory-mounted dual-voltage (25V/70V) transformers, round steel grilles, and tile-bridges.

Add to Favorites

Compare

Driver (No. 810): 8 in. 15W dual cone with 10 oz. magnet, 54Hz–11.6kHz (±6dB) and 50Hz–20kHz (±6.6dB) frequency response, 97.9dB average sensitivity measured 1W/1M.
Dual-Voltage Transformer: 25V/70V transformer with primary taps at .25, .5, 1, 2 and 5W.
Steel Grille (No. WB-8): Factory mounted to driver with welded studs. Installs to enclosure and T-bridge with four white screws (provided). White finish.
Tile-Bridge (No. LBS8-R1): Transfers weight to ceiling support structure in suspended tile ceilings. Galvanized steel with 4 wire-tie holes for seismic anchoring. 23.75 in. long.

Spec Sheet: 2484-RPAK Series

Certified U.S. steel grille and tile-bridge
Made in the U.S.A. with global components

The 8-inch ceiling speaker kit shall be Lowell Model RPAK-810-72-LC which shall include two 8″ dual cone drivers with wired dual voltage transformers and mounted white steel grilles boxed with two tile-bridges to transfer the speaker assembly weight to the ceiling support structure in suspended tile ceilings. The driver shall have an RMS power rating of 15W and employ a 10oz. ceramic magnet and molded high fiber cone. Frequency response shall be 51Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB) with sensitivity of 97.9dB average measured 1W/1M. The transformer shall be 25V/70V with primary taps at .25, .5, 1, 2, and 5W. The grille shall be steel with white powder coat finish. The tile-bridges shall be 23.75 in. long galvanized steel with holes for seismic anchoring.
