LCR-1620 - DISCONTINUED

Name: LCR-1620 - DISCONTINUED
SKU: LCR-1620
Availability: OutOfStock

SEE ALTERNATIVE: LCR-1420

$527.60 MSRP

DISCONTINUED | Out of Stock
Recommended Alternative: LCR-1420

Engineered for electronics placed inside cabinetry or beneath a counter, the LCR credenza rack is fully welded to provide rugged support, torsional rigidity, and labor-saving installation. The rack has a 16-gauge certified U.S. steel frame and 11-gauge corner post rails. Rack corners feature 0.25 inch diameter holes and slots for anchoring or positioning. It includes grounding studs and provisions to add anchor bolts (not included). Black powder epoxy finish. An optional runner kit can be ordered to protect surfaces.

Out of stock

Add to Favorites

Compare

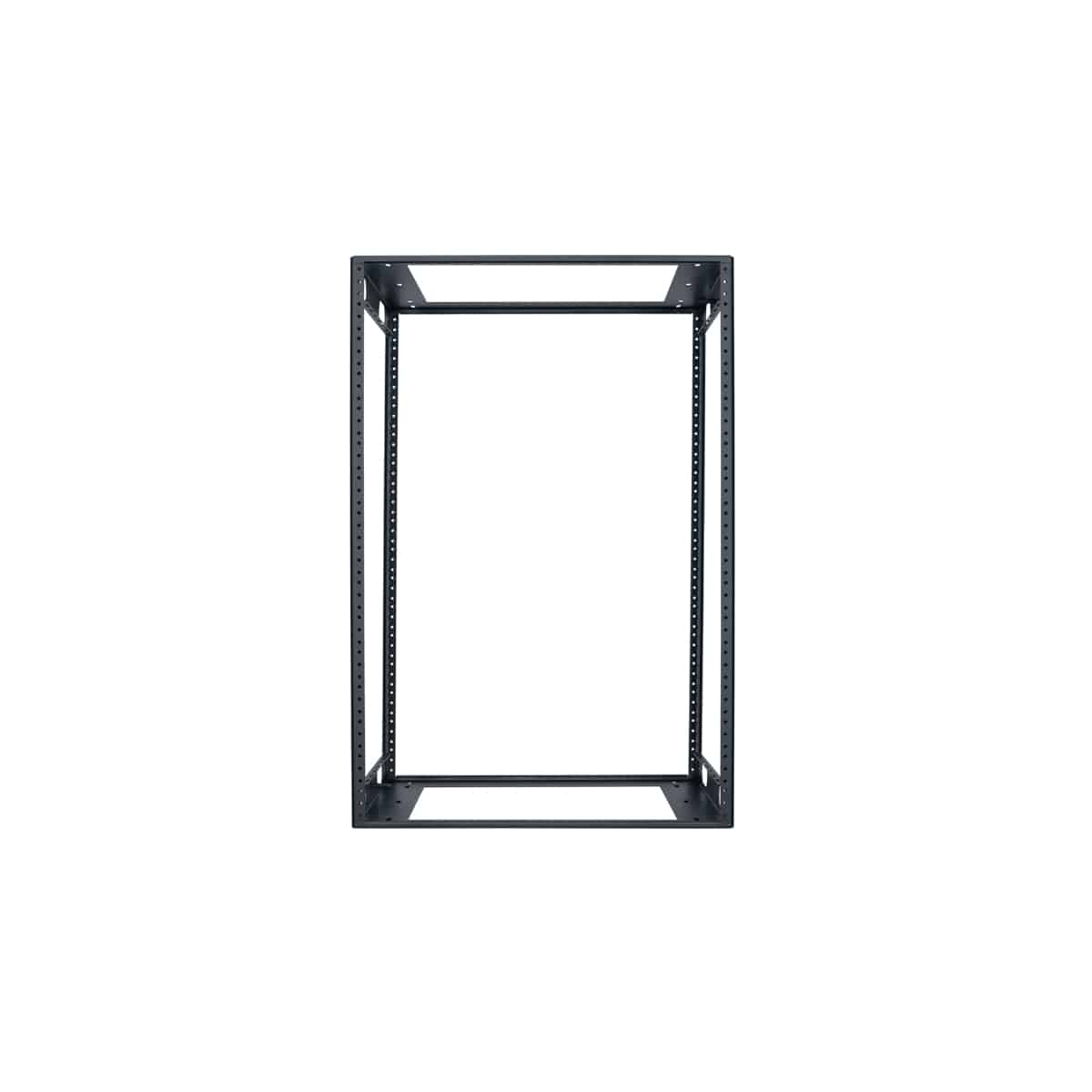

Open frame rack features corner post mounting rails, tapped 10-32. Rails are also punched for clean wire tie-off.
Side obrounds for cable management

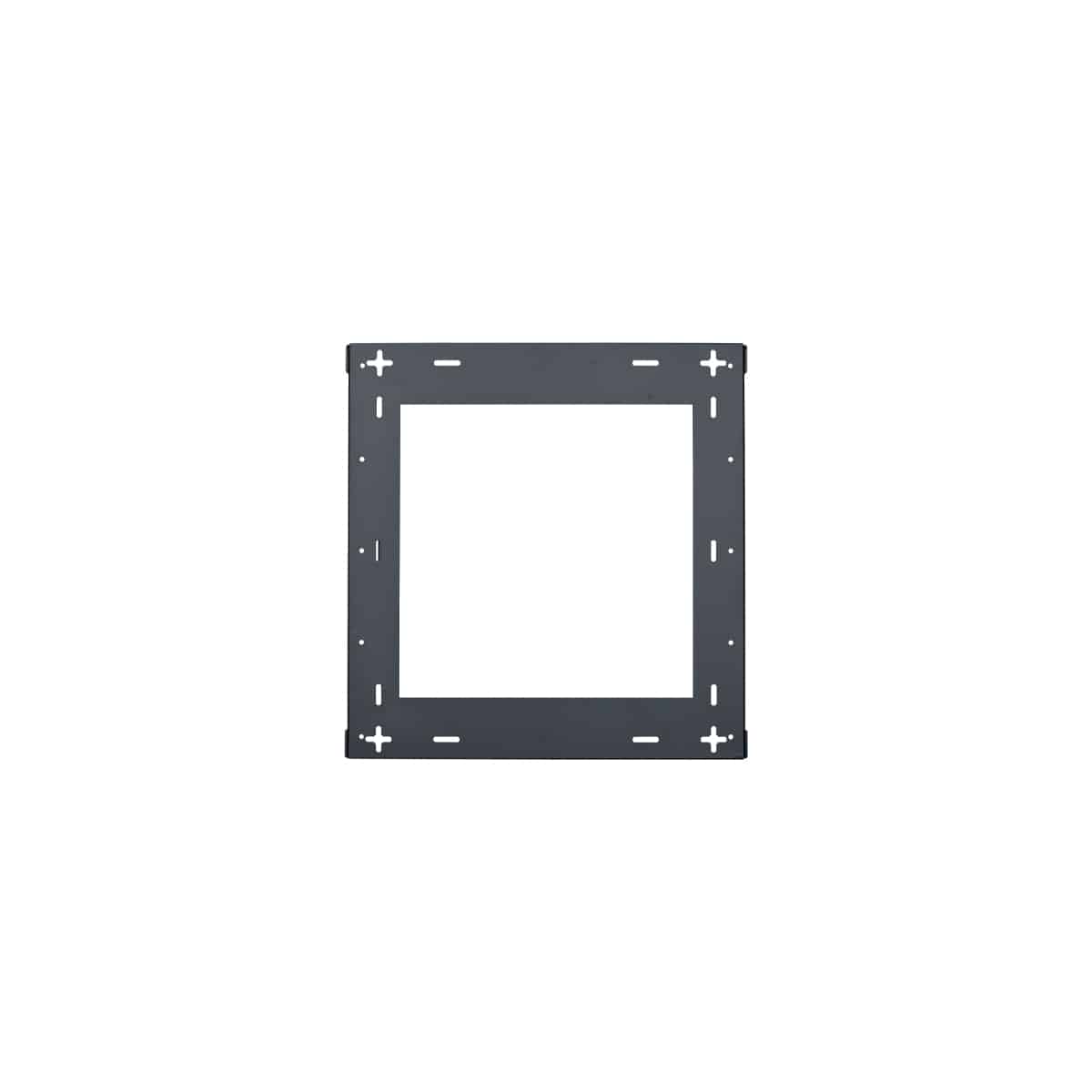

Base/top with grounding studs and provisions to accept anchor bolts (not included)
Corner holes/slots for anchoring and positioning
Smooth black powder epoxy finish
Panel mounting hardware

Rack Space: 16U
Height: 28.94 in.
Width: 19.25 in.
Depth: 20.00 in.
Load Capacity: 250 lbs.

Spec Sheet: 2326-LCR1620
CAD drawings: LCR-1620
Revit Models: LCR Series

The EIA/TIA compliant open frame rack shall be Lowell Model LCR-1620, which shall be built to EIA standards for mounting electronics. Dimensions shall be 28.94″H x 20.00″D x 19.25″W with 16U panel space. The rack shall be fully welded certified U.S. steel construction with 16-gauge top and bottom, 11-gauge corner post rails tapped 10-32 and multiple openings for cable and wire management. It shall have a smooth black powder epoxy finish.

Protective runner kit: LCR-20RK
