100W Mono Volume Control, Almond | 100LVC-SA - CLOSEOUT

Name: 100W Mono Volume Control, Almond | 100LVC-SA - CLOSEOUT
SKU: 100LVC-SA
Availability: InStock

Special Pricing - While Supplies Last

$31.40 MSRP

CLOSEOUT | Call 800-325-9660 for Availability
Recommended Alternatives: 100LVC | 100LVCDB | 100LVCDW

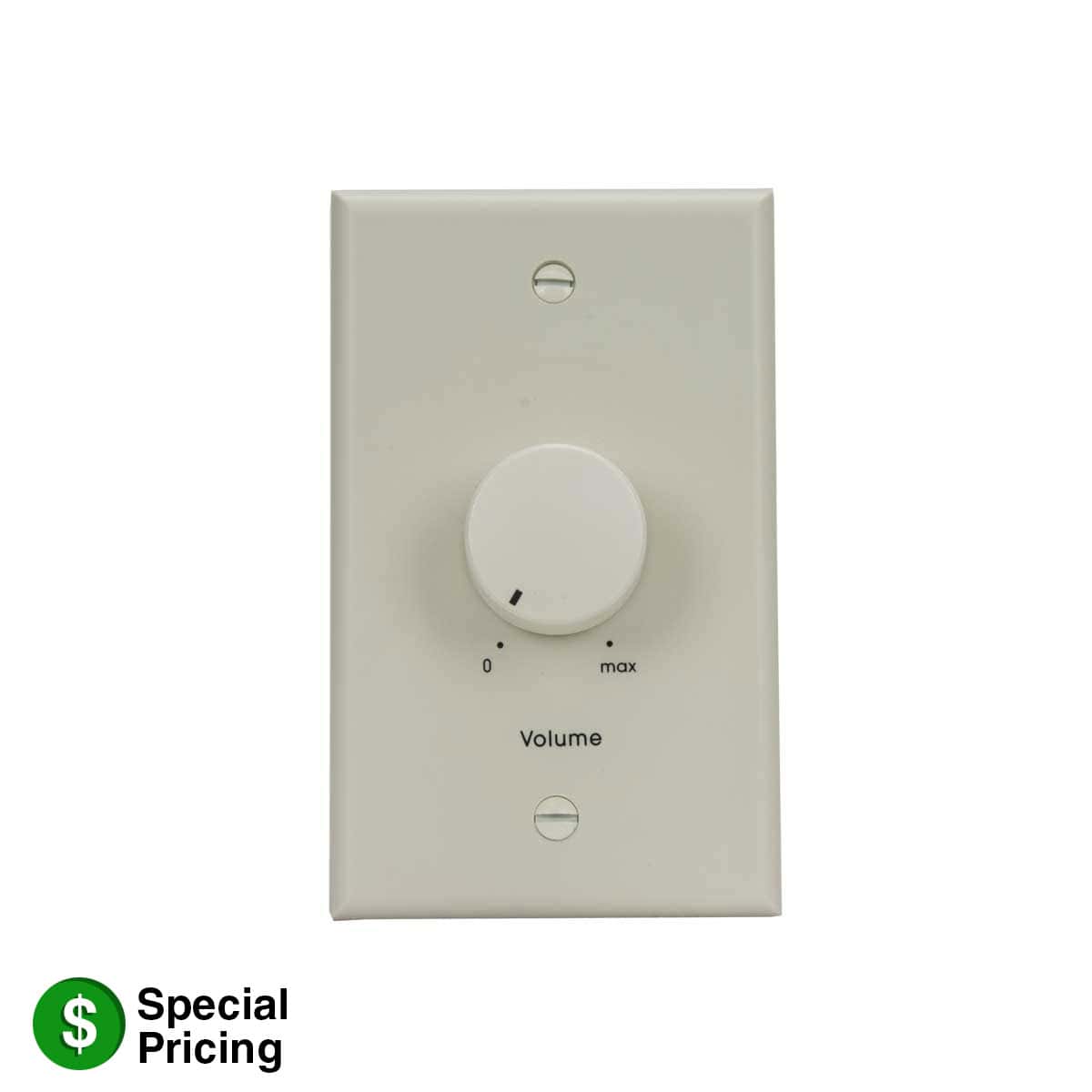

Mono autoformer attenuator volume control with rotary switch is for use with 25V/70V speaker line. This volume control features Phoenix style plug-in screw termination strips, 100W power rating and standard 3dB per step attenuation. Includes standard one-gang almond wall plate.

Add to Favorites

Compare

Power Rating: 100W
Attenuation: 3dB per step (33dB total)
Use With: 25V/70V speaker line
Activation: Rotary dial
Volume Positions: 0-10
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang standard
Finish: Almond
Fits standard E.O. box (2.125 in. min. depth)

Spec Sheet: 2236-100LVCSA
Install: 19184-LVC

Assembled in USA (China components)
ETL Listed (UL60065, UL2043)

The ETL Listed (UL60065, UL2043) volume control shall be Lowell Model 100LVC-SA with 100W power rating and 3dB per step attenuation. It shall include a standard one-gang wall plate with Almond finish. The device shall mount in an E.O. box with minimum inside dimensions of 1.875 in. x 2.688 in. x 2.125 in. (box not included).

P1X: Surface-mount wall box, 1-gang
