- Power Rating: 100W
- Attenuation: 3dB per step (two steps of 6dB each before off)
- Use With: 25V/70V speaker line
- Activation: Rotary dial
- Volume Positions: 0-10
- Termination: Phoenix-style
- Wire Capacity: 14-gauge
- Adhesive dial scale with label area. PocketID
- Emergency Bypass: 24VDC@15mA relay for applications requiring emergency and paging signals to bypass/override the attenuator.
- TAA compliant
- Made in USA with US and global components
- ETL Listed (UL60065, UL2043)

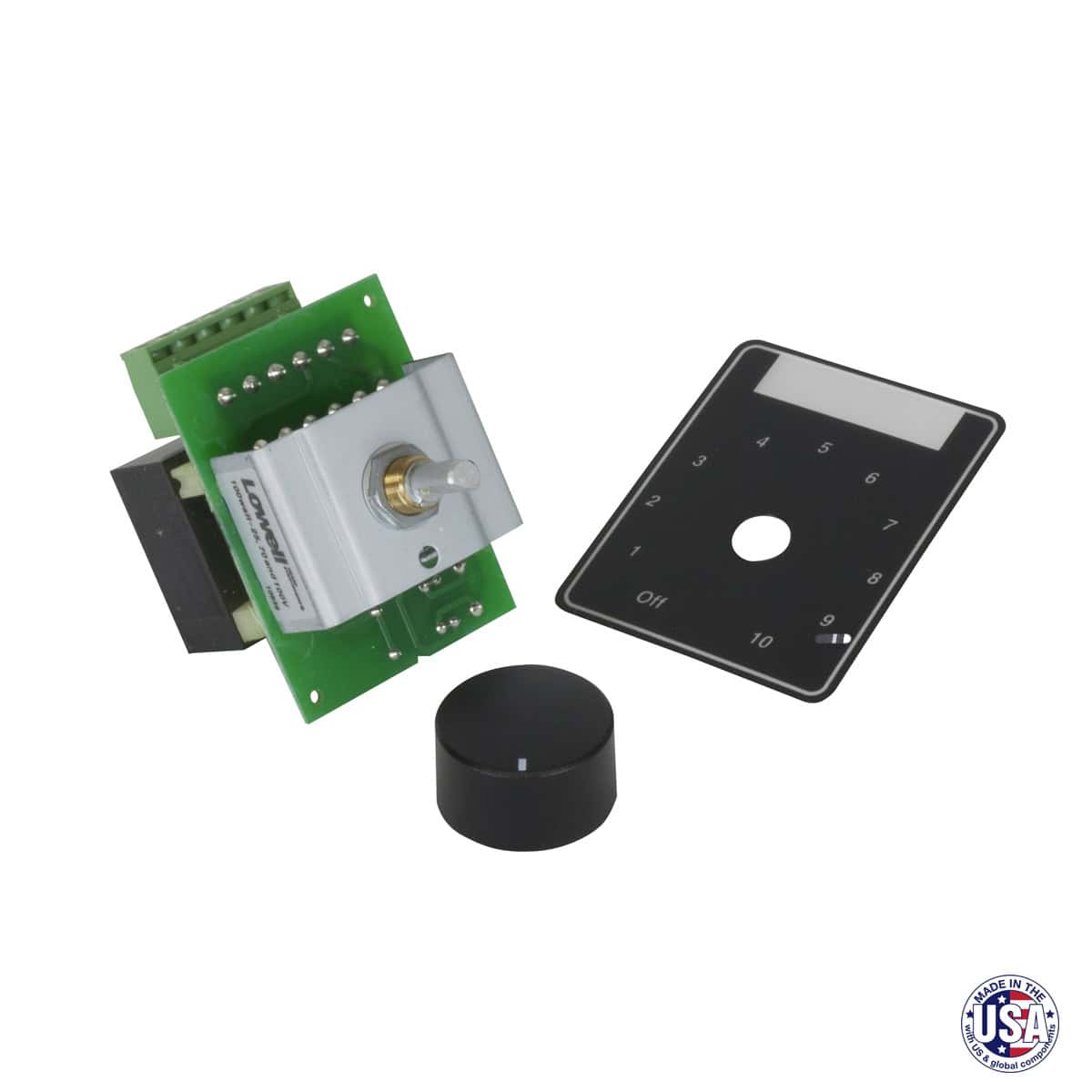

The ETL Listed (UL60065, UL2043) volume control shall be Lowell Model No. 100LVC-PA-RM which shall have a 100W power rating and 3dB attenuation per step with two steps of 6dB each before off. The volume control shall feature an emergency bypass (24VDC@15mA relay), rotary knob and adhesive label with dial scale. The control shall be Made in USA with US and global components. The control shall be ETL Listed and Trade Agreement Act (TAA) compliant.
- LVC8P-ID2: Rackmount panel for attenuator installation (holds 8)
