100W attenuator w/bypass, decorator style, almond

100W Mono Volume Control w/Bypass, Almond | 100LVC-PA-DA - CLOSEOUT

Name: 100W Mono Volume Control w/Bypass, Almond | 100LVC-PA-DA - CLOSEOUT
SKU: 100LVC-PA-DA
Availability: InStock

Special Pricing - While Supplies Last

$81.60 MSRP

CLOSEOUT | Call 800-325-9660 for Availability
Recommended Alternatives: 100LVC-PA | 100LVC-PA-DB | 100LVC-PA-DW

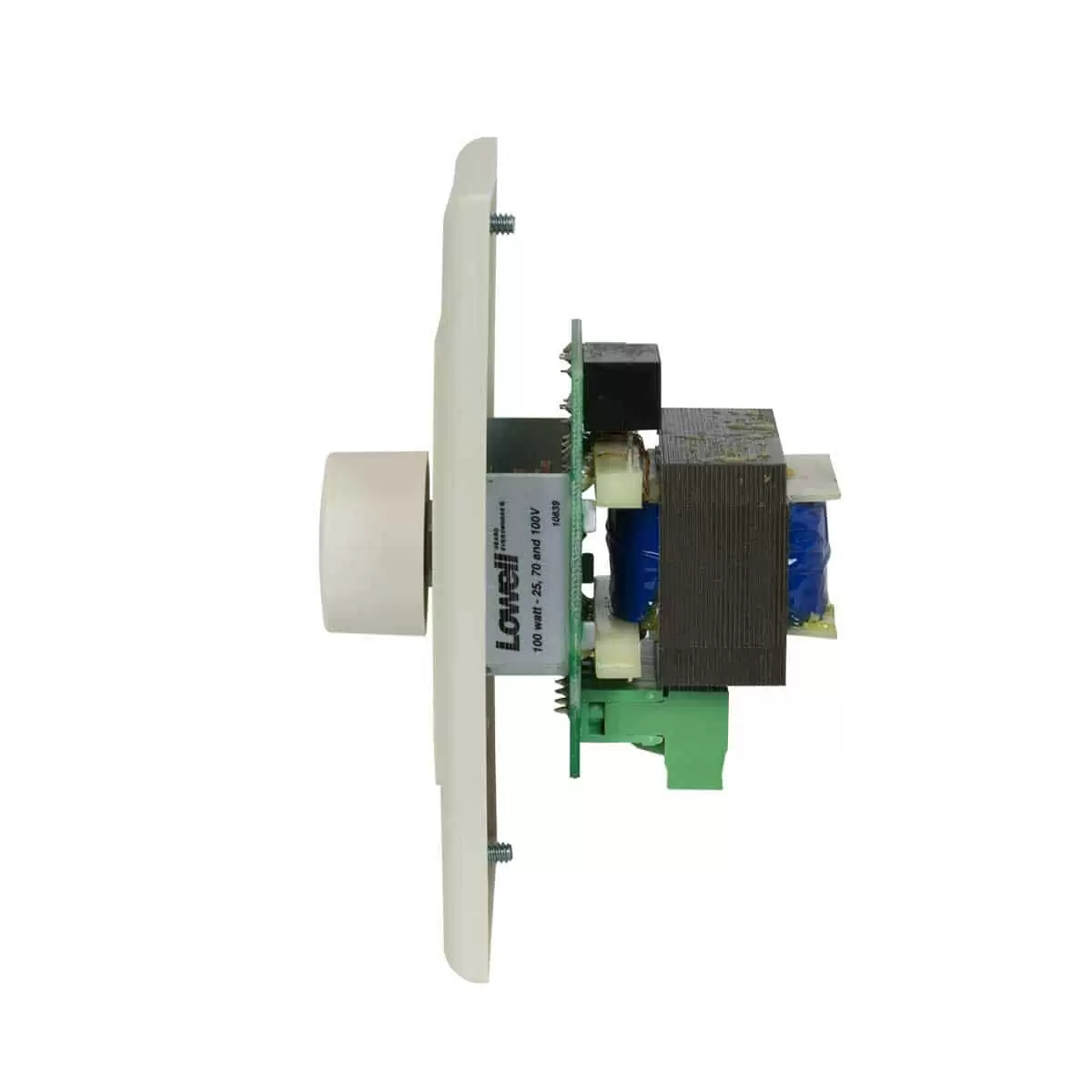

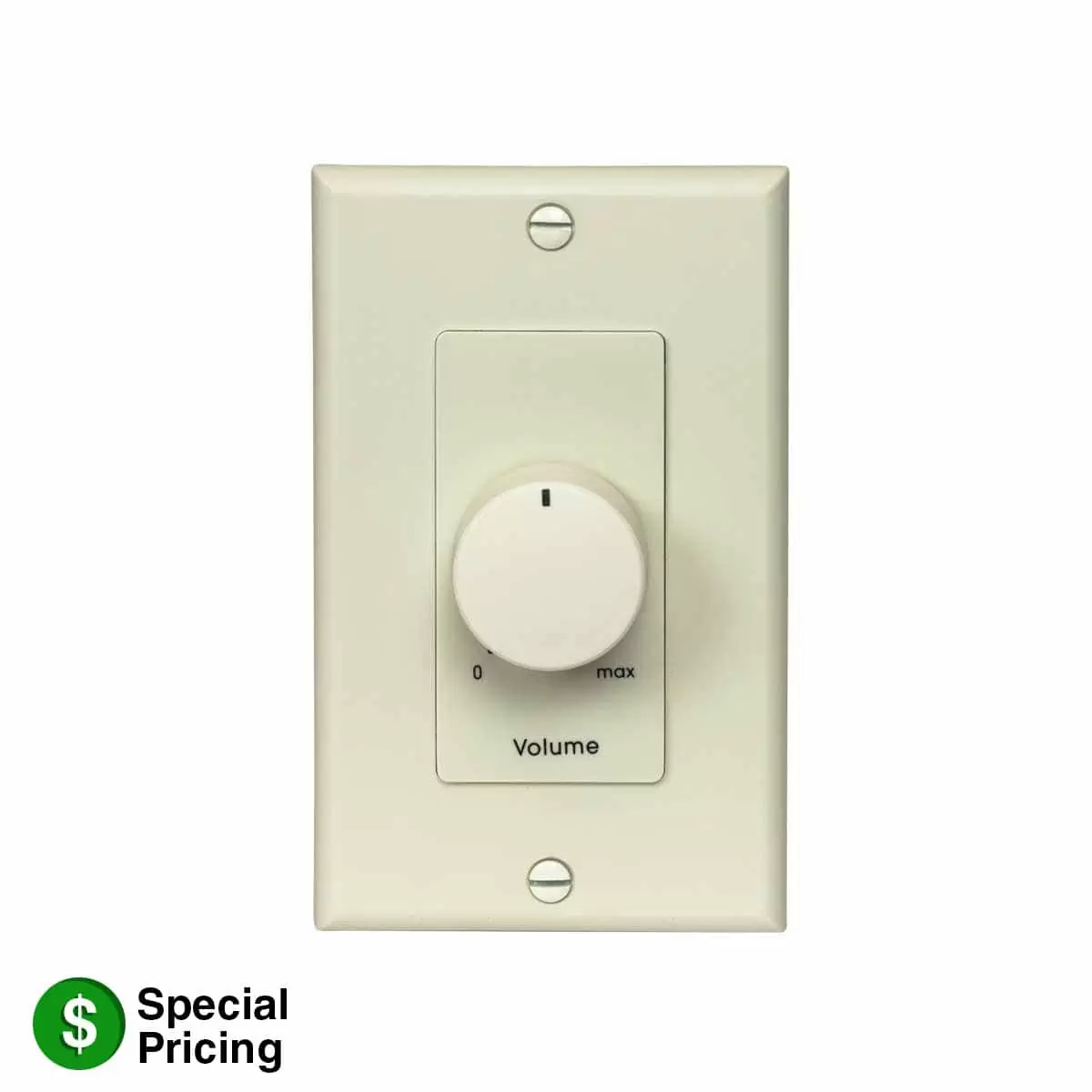

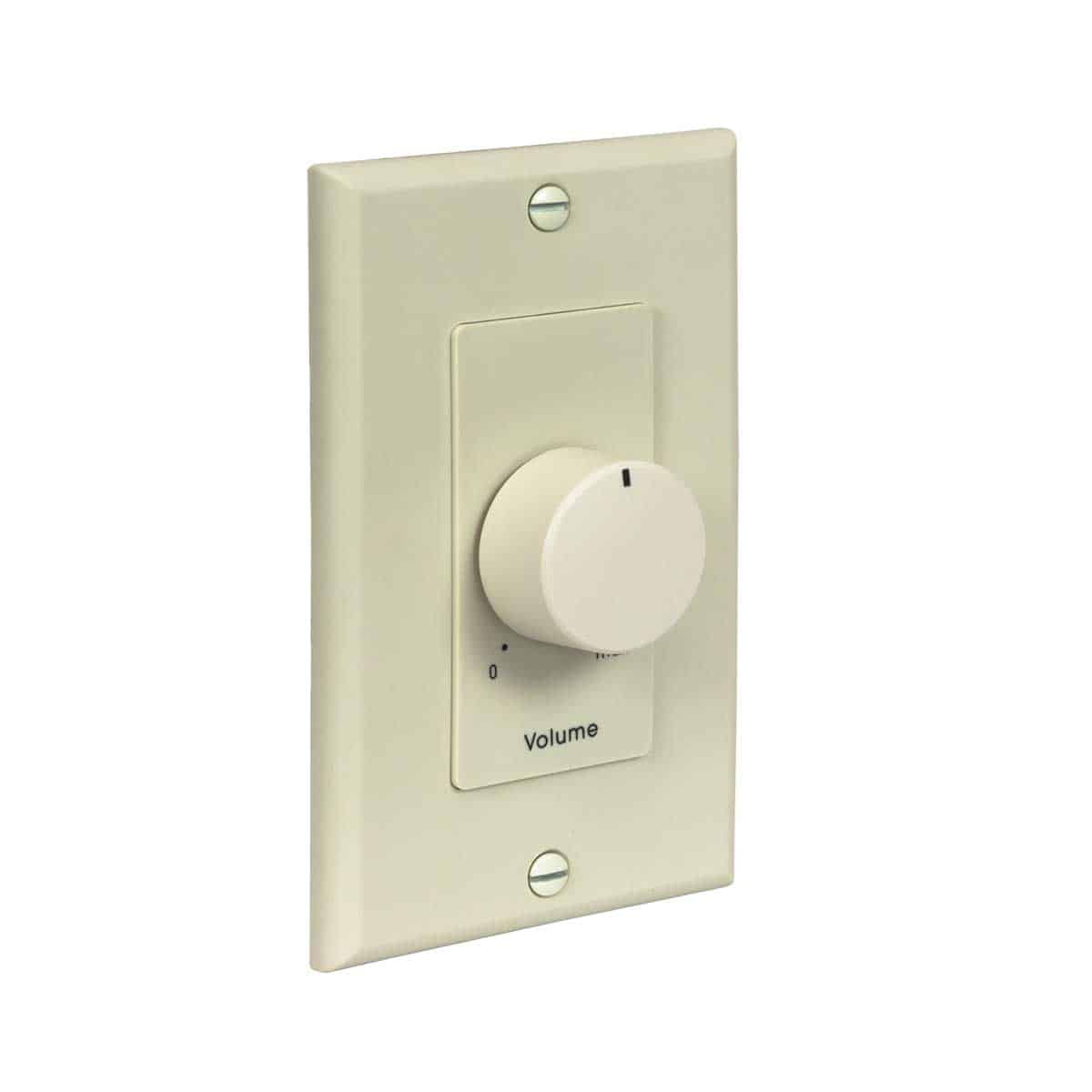

Mono autoformer attenuator volume control with rotary switch is for use with 25V/70V speaker line. This volume control features Phoenix style plug-in screw termination strips, 100W power rating, 3dB per step attenuation and a priority relay for emergency bypass. Includes one-gang decorator style almond wall plate.

Add to Favorites

Compare

Power Rating: 100W
Attenuation: 3dB per step (33dB total)
Use With: 25V/70V speaker line
Activation: Rotary dial
Volume Positions: 0-10
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang decorator style
Finish: Almond
Fits standard E.O. box (2.125 in. min. depth)
Priority Relay: 24VDC@15mA relay for emergency signal bypass

Spec Sheet: 2249-100LVCPADA
Install: 19184-LVC

Assembled in USA (China components)
ETL Listed (UL60065, UL2043)

The ETL Listed (UL60065, UL2043) volume control shall be Lowell Model No. 100LVC-PA-DA with 100W power rating, 3dB per step attenuation, and 24VDC@15mA relay for applications that require emergency and paging signals to bypass/override the attenuator. It shall include a decorator style one-gang wall plate with Almond finish. The device shall mount in an E.O. box with minimum inside dimensions of 1.875″W x 2.688″H x 2.125″D (box not included).

P1X: Surface-mount wall box, 1-gang
