- Power Rating: 100W
- Attenuation: 3dB per step (33dB total)
- Use With: 25V/70V speaker line
- Activation: Rotary dial
- Volume Positions: 0-10
- Termination: Phoenix-style
- Wire Capacity: 14-gauge

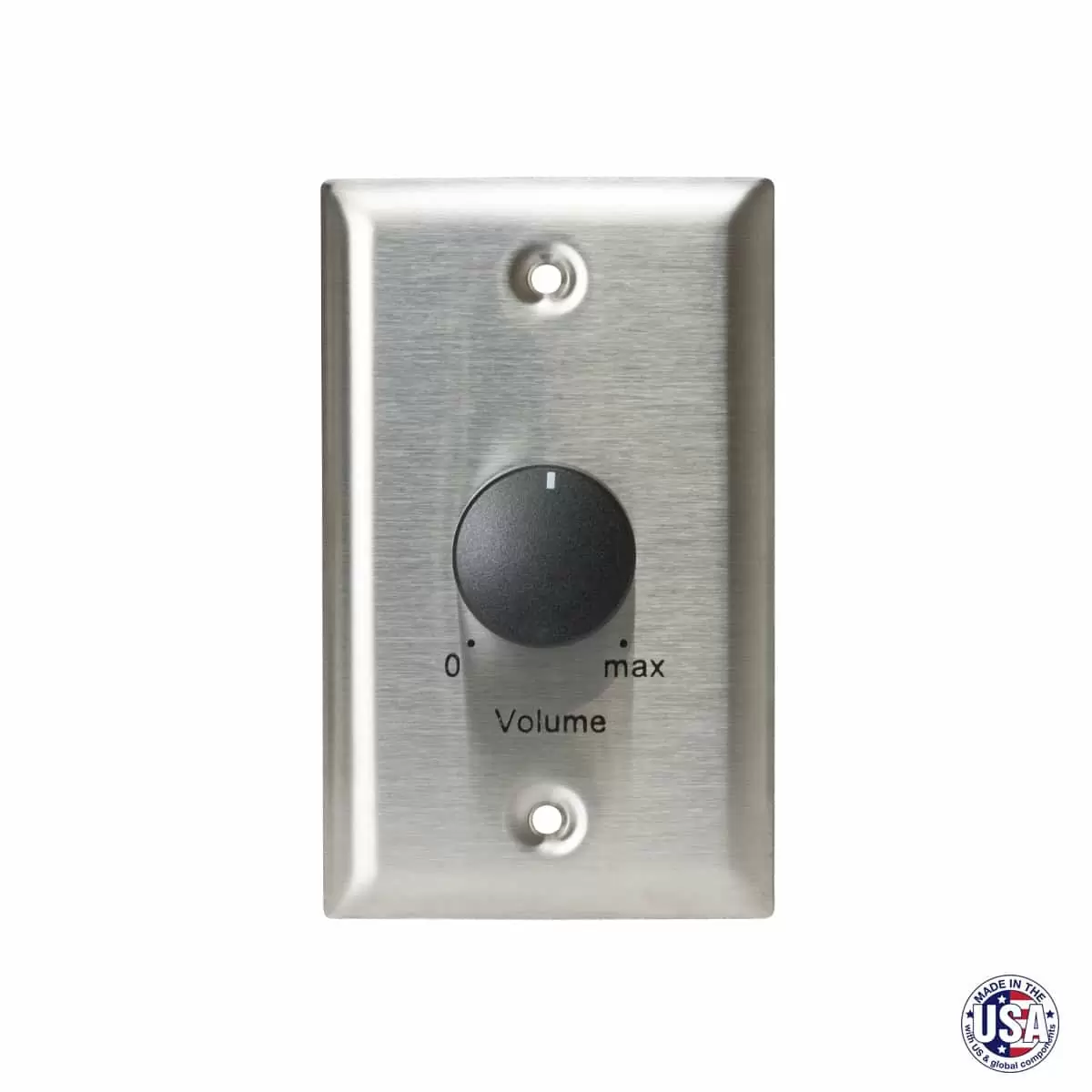

- Wall Plate: 1-gang standard
- Finish: Stainless Steel
- Fits standard EO box (2.125 in. min. depth)
- Priority Relay: 24VDC@15mA relay for emergency signal bypass
- TAA compliant
- Made in USA with US and global components
- ETL Listed (UL60065, UL2043)
The ETL Listed (UL60065, UL2043) volume control shall be Lowell Model 100LVC-PA with 100W power rating, 3dB per step attenuation, and 24VDC@15mA relay for applications that require emergency and paging signals to bypass/override the attenuator. It shall include a standard one-gang wall plate with stainless steel finish. The device shall mount in an EO box with minimum inside dimensions of 1.875 in. x 2.688 in. x 2.125 in. (box not included). It shall be Made in USA with US and global components. The control shall be ETL Listed and Trade Agreement Act (TAA) compliant.
- P1X: Surface-mount wall box, 1-gang
