10015LVCS-SW | 100W Mono Volume Control - CLOSEOUT

Name: 10015LVCS-SW | 100W Mono Volume Control - CLOSEOUT
SKU: 10015LVC-SW
Availability: InStock

Special Pricing - While Supplies Last

$72.80 MSRP

CLOSEOUT | Call 800-325-9660 for Availability
Recommended Alternative: 10015LVC-DW

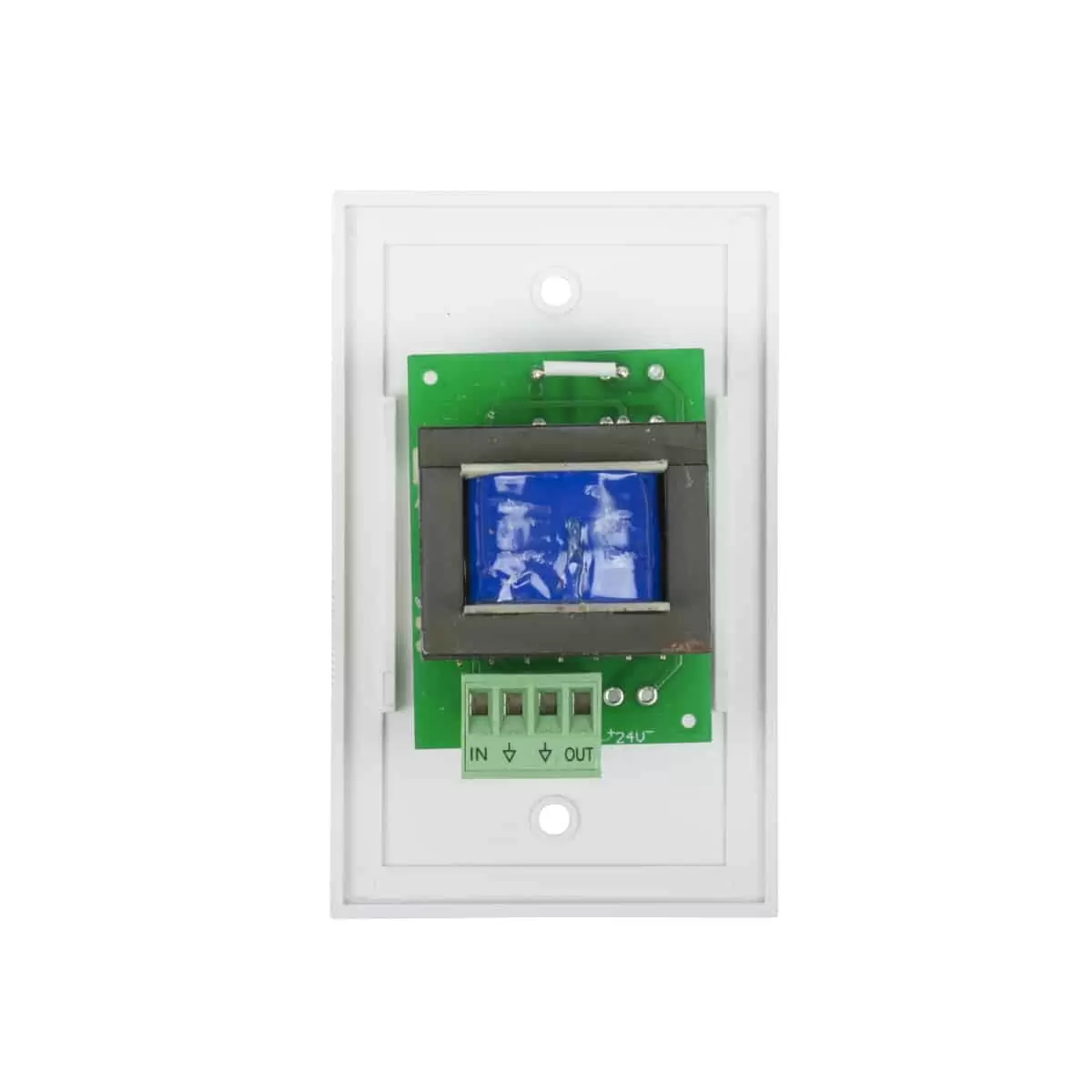

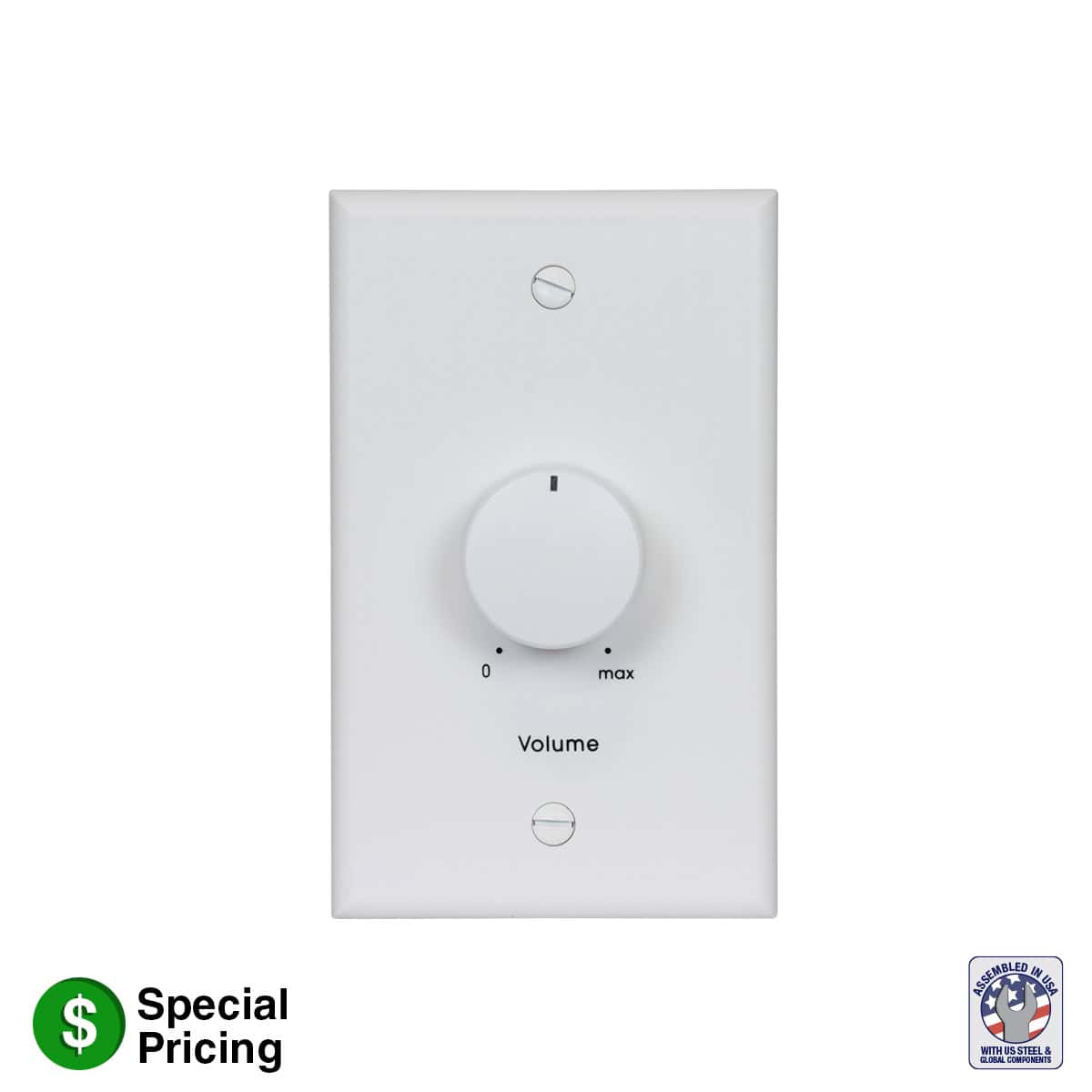

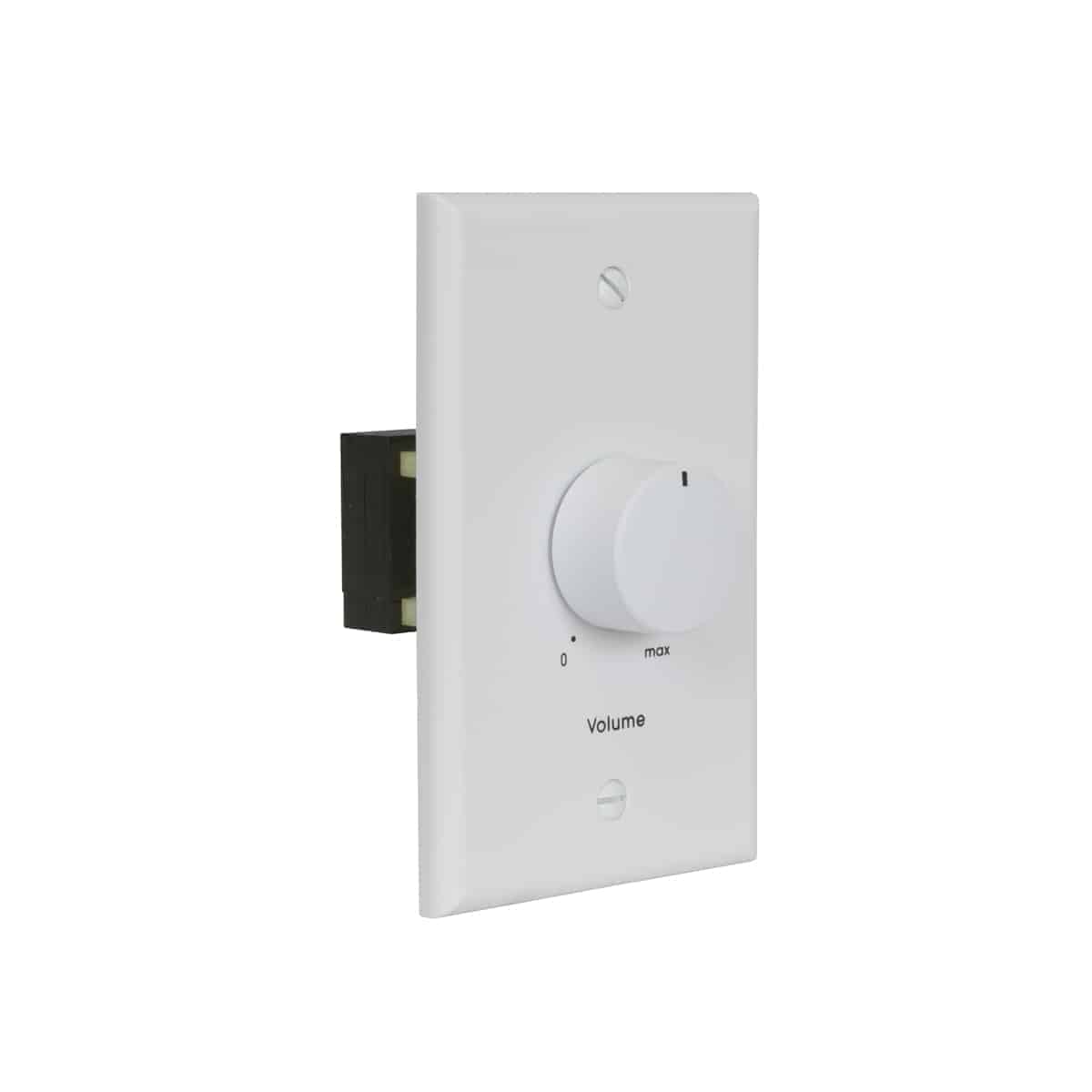

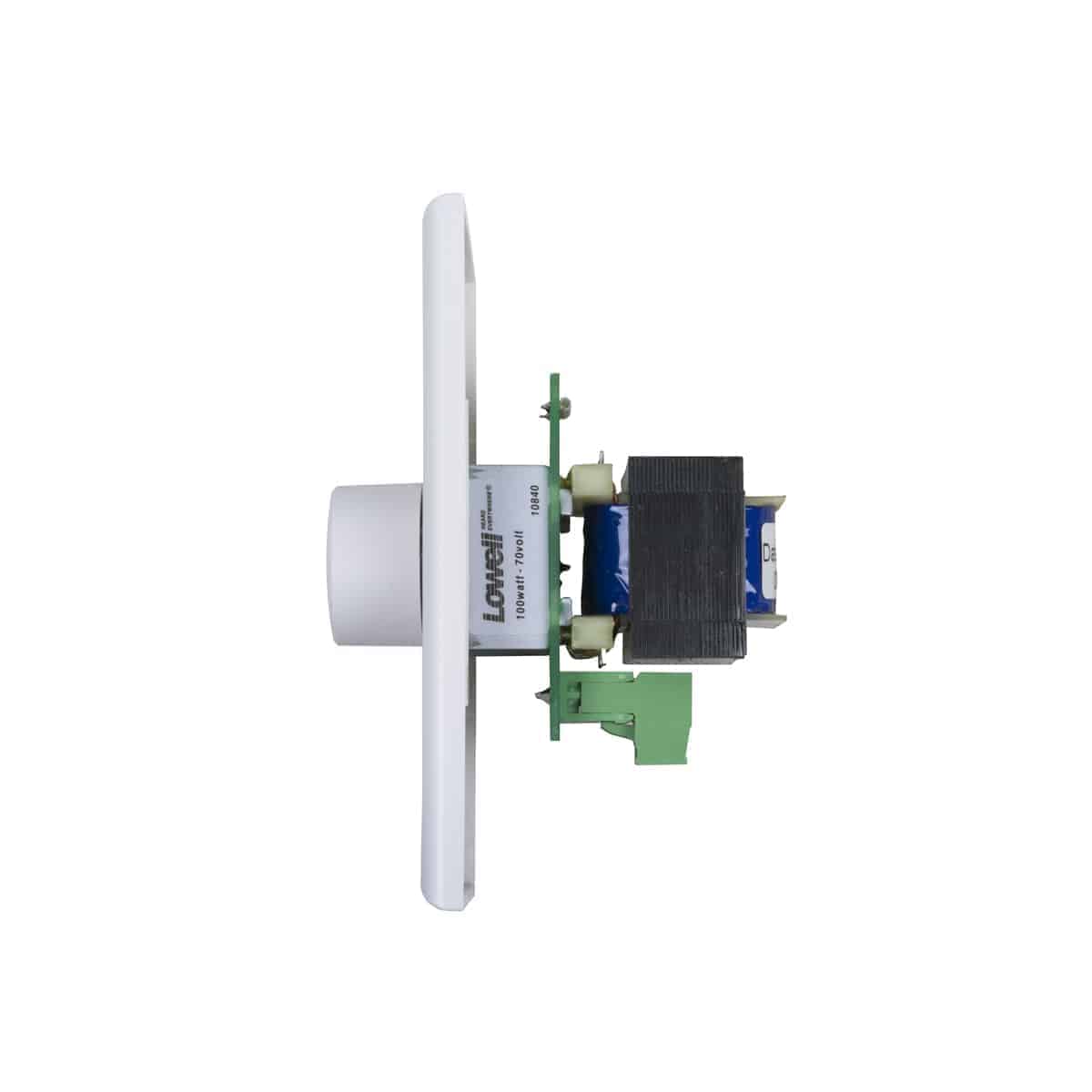

Mono autoformer attenuator volume control with rotary switch is for use with 25V/70V speaker line. This volume control features Phoenix style plug-in screw termination strips, 100W power rating and precise 1.5dB per step attenuation. Includes standard one-gang white wall plate.

Add to Favorites

Compare

Power Rating: 100W
Attenuation: 1.5dB per step
Use With: 25V/70V speaker line
Activation: Rotary dial
Volume Positions: 0-10
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang standard
Finish: White
Fits standard E.O. box (2.125 in. min. depth)

Spec Sheet: 2252-10015LVCSW

Assembled in USA (China components)
ETL Listed

The ETL Listed volume control shall be Lowell Model 10015LVC-SW with 100W power rating and 1.5dB per step attenuation. It shall include a standard one-gang wall plate with white finish. The device shall mount in an E.O. box with minimum inside dimensions of 1.875 in. x 2.688 in. x 2.125 in. (box not included).

P1X: Surface-mount wall box, 1-gang
