8 inch Dual Cone Sound Masking Speaker with Xfmr, Grille, Enclosure, Hangers

Name: 8 inch Dual Cone Sound Masking Speaker with Xfmr, Grille, Enclosure, Hangers
SKU: SM810AW
Price: 166.00 USD
Availability: InStock

SM810AW

$166.00 MSRP

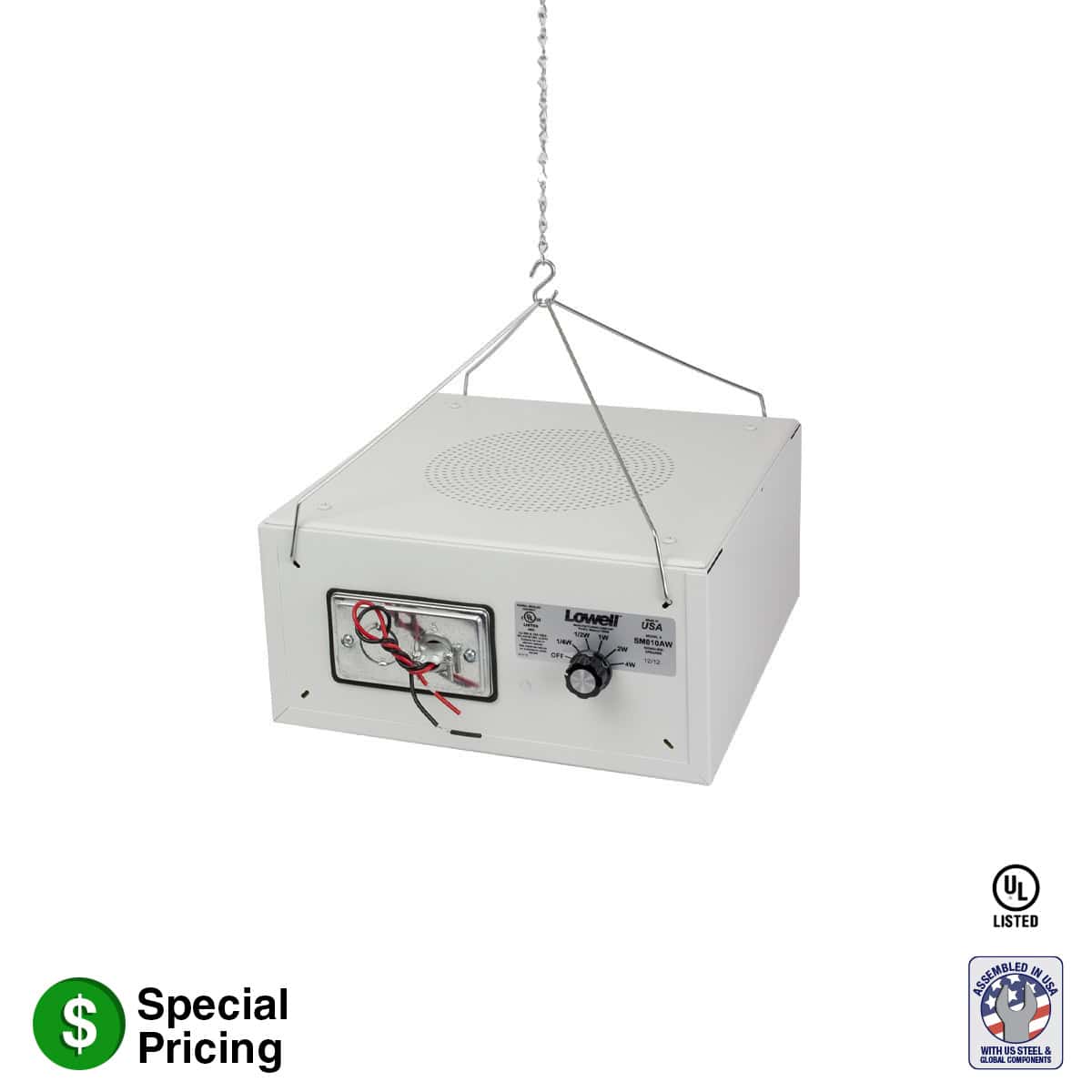

Above ceiling 15W sound masking speaker with 8-inch dual cone driver, 70V transformer, grille and enclosure. Includes wire hangers, S-hooks and chain. Note: This model has an enclosure with white powder epoxy finish and is made to order.

Add to Favorites

Compare

Driver: 8 in. 15W dual cone driver (10 oz. magnet)
Transformer: 70V (0.25, 0.5, 1, 2, 4W). Selector switch includes “OFF” position.
Enclosure: 760 cu in. volume (11.625 in. square x 5.625 in. deep), fiberglass lining, externally accessible input leads, SG handibox cover with knockouts, Romex connector for installations without conduit. White.
Grille: Steel grille with round perforation pattern. White.
Mounting Aids: Removable wire hangers, S-hooks, and 4 ft. chain. Does not include rigging hardware.

Spec Sheet: 1998-SM810AW
Instructions: Install-SM
Revit Models: SM Series

UL 1480 General Signaling U.S.A.
UL 2043 Return air plenum space
CSAC22.2 No.205-M1983 General Signaling Canada
Made in the U.S.A. with global components
Certified U.S. steel

The sound masking speaker assembly for suspended ceiling installations shall be Lowell Model SM810AW, which shall include an 8 in. 15W dual cone driver with factory-wired transformer mounted in a 760 cu.in. steel backbox with grille and externally accessible speaker leads. The wired transformer shall be 70V with primary taps at 4, 2, 1, .5, and .25 watts. The assembly shall include an externally accessible rotary switch to adjust tap selections and include an “OFF” position. Speaker leads shall exit the backbox through a strain relief clamp on a single gang handibox cover. Backbox and grille shall have a white finish and include pre-mounted wire hangers (removable) with separate 4 ft. chain and S-hooks.
